A 2D machine vision system uses cameras, lighting, and image processing software to capture and analyze images of objects.
It helps automated equipment identify shapes, read codes, measure dimensions, detect surface defects, and check whether products meet defined requirements. A 2D machine vision system manufacturer typically develops or integrates components that allow these inspection tasks to be performed within industrial environments.
The technology developed from digital imaging, computer-based image analysis, and industrial automation. As cameras and computing systems became more capable, manufacturers began using image-based inspection to reduce dependence on manual visual checks and support repeatable production processes.
A 2D industrial vision inspection system analyzes images across two dimensions: width and height. Unlike three-dimensional vision technology, which can estimate depth or surface geometry, a conventional 2D system primarily evaluates information visible in a flat image.
How 2D Machine Vision Works
A typical system captures an image when a sensor, timer, or production controller signals the camera. Lighting illuminates the object, and the camera converts the reflected light into digital image data. Software then processes the image and compares its features with predefined inspection rules.
The system may identify an object, measure its visible dimensions, locate a printed label, or determine whether a component is missing. Depending on its configuration, it can send a result to a controller that directs the next production step.
Main Components of a 2D Vision System
Several components work together to produce reliable inspection results:
Camera: Captures images of products or components.
Lens: Determines the field of view, focus, and image detail.
Lighting: Improves the visibility of edges, markings, and surface features.
Image processing software: Analyzes images and evaluates inspection criteria.
Sensors and triggers: Coordinate image capture with product movement.
Controller and communication interface: Transfer inspection results to connected equipment.

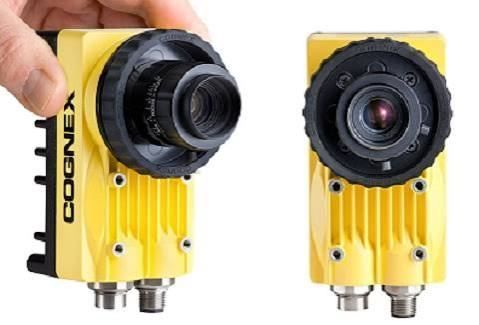

A 2D machine vision camera supplier may provide cameras with different resolutions, frame rates, sensor types, and interface options. The appropriate configuration depends on the object, inspection speed, working distance, and level of detail required.
Importance
2D machine vision is important because visual inspection plays a role in many manufacturing and packaging operations. Products may need to be checked for incorrect labels, damaged surfaces, missing components, inconsistent dimensions, or improperly positioned parts.
Manual inspection can be affected by fatigue, differences in individual judgment, and changing working conditions. Automated image analysis provides a structured method for checking visible features repeatedly, although the results still depend on image quality, system configuration, and inspection rules.
Applications Across Industries
A 2D industrial vision inspection system can be used in different production environments.
In food packaging, cameras can check printed dates, label placement, packaging alignment, and the presence of required markings. In electronics manufacturing, vision systems can examine component placement, printed patterns, and visible assembly features.
Automotive production may use machine vision to check part orientation, surface appearance, and component presence. Pharmaceutical packaging environments may use vision technology to verify printed information and packaging characteristics, subject to the applicable validation and quality requirements.
Supporting Quality Control
2D machine vision quality inspection can help identify visible defects before products move to later production stages. For example, a system may detect a missing screw, a misaligned label, or a printed code that does not match a specified format.
Inspection results can also be recorded for later analysis. When combined with production data, these records may help teams identify recurring defect patterns and investigate possible causes.
However, a 2D camera cannot detect every type of defect. Internal damage, hidden features, and certain depth-related problems may require other inspection methods, such as X-ray imaging, ultrasonic testing, or three-dimensional vision.
Factors That Affect Accuracy
Inspection performance depends on several conditions. Lighting changes can alter the appearance of a product, while motion blur can reduce image clarity when objects move quickly. Variations in color, surface reflectivity, positioning, and background can also affect detection.
A properly designed inspection process defines acceptable limits and tests how the system performs under realistic production conditions. Regular checks are important when products, lighting, camera positions, or production speeds change.
Recent Updates
Developments from 2024 through 2026 reflect broader adoption of higher-resolution imaging, faster image processing, AI-assisted inspection, and more connected industrial equipment. These developments vary by application, and not every production environment requires the newest technology.
AI-Assisted Image Processing
Traditional machine vision often uses predefined rules, such as edge detection, thresholding, pattern matching, and geometric measurement. These methods remain useful when products and inspection conditions are relatively consistent.
AI-assisted vision systems can use trained models to recognize more complex patterns, classify surface defects, or distinguish acceptable variations from unusual appearances. Their performance depends on training data, representative examples, validation procedures, and the conditions encountered during operation.
High-Speed Inspection and Higher Resolution
A high speed 2D inspection camera can capture images rapidly enough for certain moving production lines. Higher frame rates may help inspect products at shorter intervals, while increased resolution can reveal smaller visible features.
However, frame rate and resolution must be considered together. Processing capacity, exposure time, lighting intensity, data transfer, and the required inspection area all influence the practical performance of a system.
Integration With Automated Equipment
Industrial 2D vision camera systems are increasingly connected with programmable logic controllers, robotic equipment, production databases, and manufacturing software. These connections allow inspection results to influence sorting, positioning, rejection, or subsequent processing steps.
2D vision guided automation systems can identify an object's location and orientation so that a robot or machine can act on the visual information. Integration requires suitable communication protocols, coordinate calibration, and careful testing of how the camera and equipment interact.
| Development | Main Purpose | Important Consideration |
|---|---|---|
| AI-assisted inspection | Recognize complex visual patterns | Model validation and representative data |
| Higher-resolution cameras | Capture finer visible details | Lighting and processing capacity |
| High-speed imaging | Inspect moving objects rapidly | Exposure time and motion blur |
| Connected control systems | Share inspection results with equipment | Communication compatibility |
| Digital inspection records | Track results and defect patterns | Data quality and storage |
Tools and Resources
Several tools can help explain, configure, and evaluate machine vision applications. The required resources depend on whether the task involves image analysis, camera selection, system integration, or quality monitoring.
Image Processing Software
2D machine vision software for manufacturing commonly includes tools for image acquisition, edge detection, measurement, pattern matching, optical character recognition, and defect classification. Some platforms use graphical interfaces, while others support programming and custom inspection logic.
OpenCV is an example of a computer vision library used for image processing and analysis. Camera manufacturers also publish technical documentation covering image formats, lens compatibility, exposure settings, and communication interfaces.
Camera Selection and System Planning
Camera selection tools and lens calculators can help estimate the relationship between image resolution, field of view, working distance, and the size of visible features. These calculations provide a starting point, but physical testing is still needed to account for lighting and actual production conditions.
Useful planning resources include:
Camera and lens specification sheets.
Lighting selection guides for reflective, dark, or textured surfaces.
Image processing tutorials and sample datasets.
Inspection checklists defining acceptable and unacceptable product features.
Integration documentation for controllers, robots, and industrial networks.
2D Machine Vision Integration Solutions
2D machine vision integration solutions combine imaging hardware, software, lighting, controllers, and production equipment into a coordinated system. Integration planning generally covers camera mounting, triggering, calibration, communication, error handling, and the response to failed inspections.
A documented test plan helps establish whether the system can identify known defects and accept compliant products under expected operating conditions. Inspection records can then support ongoing evaluation as production requirements change.
FAQs
What is a 2D machine vision system used for?
A 2D machine vision system is used to inspect visible product features, read codes, measure dimensions, locate components, and detect certain surface defects. It is commonly applied in manufacturing, packaging, electronics, and assembly operations.
How does a 2D industrial vision inspection system work?
It captures an image using a camera and suitable lighting, processes the image through software, and compares the detected features with defined inspection criteria. The result may be recorded or sent to connected production equipment.
What should be considered when selecting a 2D machine vision camera supplier?
Important considerations include camera resolution, frame rate, sensor type, lens compatibility, lighting requirements, communication interfaces, and environmental conditions. The camera must suit the inspection task and production setup.
What is 2D machine vision software for manufacturing?
It is software that analyzes camera images to perform tasks such as measurement, pattern recognition, code reading, and defect detection. Depending on the application, it may use rule-based algorithms, AI models, or a combination of methods.
What is the difference between 2D and 3D machine vision?
2D machine vision analyzes image features across width and height, while 3D machine vision also captures or estimates depth information. Applications involving surface height, volume, or three-dimensional positioning may require 3D technology.
Conclusion
2D machine vision combines cameras, lighting, image processing, and industrial controls to inspect visible product features. It supports quality checks, measurement, identification, and vision-guided automation across different manufacturing environments. Advances in AI, high-speed imaging, and system integration are expanding its applications, while accuracy continues to depend on appropriate configuration and validation. Understanding these principles provides a foundation for evaluating how 2D inspection technology fits into modern production processes.
