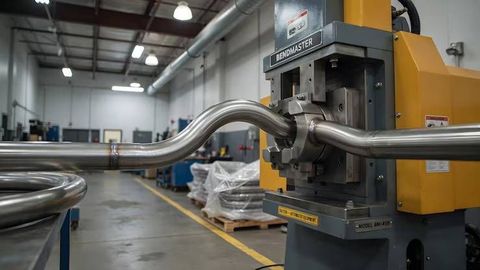

Automatic Tube End Forming Machines are industrial systems designed to change the shape of a tube's end to meet specific engineering and assembly requirements.
Depending on the tooling and machine configuration, these systems can expand, reduce, flare, bead, swage, or shape tubular components without requiring every operation to be performed manually.
Tube end forming is used in manufacturing environments where tubes must connect securely with other components, accommodate fittings, support fluid flow, or meet particular dimensional requirements. The process is relevant to automotive components, heating and cooling equipment, hydraulic assemblies, furniture frames, plumbing systems, and industrial machinery.
Traditional tube end forming often involved manual handling, mechanical presses, and dedicated tooling. Automatic systems developed to improve process consistency, reduce repetitive handling, and coordinate multiple manufacturing steps. Modern machines may use programmable controls, hydraulic or servo-electric actuation, automatic clamping, and integrated measurement systems.
How the Manufacturing Process Works
The process generally begins with a tube that has already been cut to the required length. The tube is positioned in a fixture, secured by a clamping mechanism, and aligned with a forming tool that applies controlled force to the end.
The machine then moves the tool according to the selected forming method. After the operation, the formed tube is released and inspected for dimensions, surface condition, and suitability for its intended assembly.
A typical automatic tube end forming cycle includes:
Tube loading and positioning.
Clamping and alignment.
Tool movement and end deformation.
Tool withdrawal and component release.
Dimensional inspection and part handling.
The exact sequence varies with the machine design, tube material, wall thickness, and required end geometry. Some machines perform one forming operation, while others combine several operations in a single production cycle.
Common Types of Tube End Forming Machines
Automatic tube end forming equipment can be classified by its forming method and drive mechanism. Hydraulic machines use pressurized fluid to generate force, while servo-electric systems use electrically controlled motion to regulate tool movement.
Machine type | Main operation | Typical application |
|---|---|---|
Tube expanding machine | Increases tube-end diameter | Fitting connections |
Tube reducing machine | Decreases tube-end diameter | Telescopic or inserted joints |
Tube flaring machine | Forms an outward-facing lip | Fluid and gas connections |
Tube beading machine | Creates a raised circular feature | Hose retention and joining |
Tube swaging machine | Reshapes the tube end through compression | Mechanical joints |
Multi-station end forming machine | Combines several forming operations | Repetitive production lines |
Selecting the appropriate machine depends on the required geometry, material properties, production volume, and acceptable dimensional variation.
Importance
Manufacturing Accuracy and Repeatability
Automatic Tube End Forming Machines help manufacturers produce components with consistent end dimensions. This is important because a tube that is too wide, too narrow, unevenly formed, or incorrectly aligned may not fit its mating component.
Dimensional consistency is especially relevant to assemblies that depend on sealing surfaces, interference fits, clamps, or accurately positioned joints. Automated motion control can reduce variation caused by repetitive manual handling, although actual results depend on tooling condition, machine setup, and process monitoring.
Production Efficiency and Material Utilization
Automated equipment can coordinate clamping, forming, and release with less manual intervention. This can help manufacturing teams organize repetitive production tasks and maintain a more predictable workflow.
Material utilization is another consideration. Incorrect forming can produce cracks, wrinkles, excessive thinning, or dimensional defects that require rework or component rejection. Appropriate tooling, material preparation, and process settings help reduce these problems.
Industries That Use Tube End Forming
Automatic tube end forming technology supports several industrial sectors.
Automotive manufacturing uses formed tubes in fluid circuits, exhaust-related assemblies, structural components, and selected cooling systems.
HVAC manufacturing uses tubular components in heat exchangers, refrigerant circuits, and related equipment.
Hydraulic and pneumatic equipment manufacturers use formed tube ends for connections and assembly interfaces.
Furniture and metal fabrication industries use expanded, reduced, or shaped tube ends in frames and joining systems.
Industrial machinery manufacturers use formed tubes in fluid handling, structural assemblies, and specialized equipment.
The requirements differ across these applications. A decorative tube end may prioritize appearance, while a pressure-related component may require strict dimensional control, suitable materials, and verified joint performance.
Factors That Influence Forming Quality
Several variables affect the outcome of tube end forming:
Material composition and hardness.
Tube diameter and wall thickness.
Forming force and tool movement.
Tool geometry and surface condition.
Clamping pressure and alignment.
Lubrication where appropriate.
Forming speed and material springback.
Springback occurs when a material partially returns toward its original shape after the forming force is removed. Engineers account for this behavior when developing tooling and process settings.
Recent Updates
Servo Control and Programmable Automation
During 2024–2026, industrial tube processing continued to reflect broader manufacturing trends toward programmable control, production monitoring, and more adaptable equipment. Servo-electric drives and advanced control systems can allow precise adjustment of motion profiles, positioning, and cycle parameters.
These features can be useful when manufacturers process different tube dimensions or require several forming profiles. However, the available functions vary by machine, and programmable control does not eliminate the need for correct tooling or process validation.
Integration With Production Lines
Automatic tube end forming machines may be integrated with tube cutting, bending, robotic handling, inspection, and material transfer equipment. This creates a connected workflow in which a tube moves between manufacturing stages with fewer manual transfers.
Integration requires attention to component orientation, cycle synchronization, equipment communication, and fault handling. A problem at one station can affect the entire line if buffer capacity and recovery procedures are inadequate.
Data Monitoring and Quality Control
Digital manufacturing systems can record forming parameters, machine status, cycle counts, and inspection results. When these records are connected to part identification, manufacturers can investigate recurring defects and compare process performance across production batches.
Machine vision and automated measurement systems may also support dimensional checks. Their effectiveness depends on measurement accuracy, calibration, inspection coverage, and the ability to recognize relevant defects.
Flexible Tooling and Product Variation
Manufacturers increasingly need equipment that can accommodate product variation without extensive manual adjustment. Interchangeable tooling, programmable recipes, and adjustable fixtures can support different tube sizes and end profiles.
Tool changes still require correct installation, alignment, and verification. A setup developed for one material or wall thickness may not be suitable for another, even when the outside diameter is similar.
Laws or Policies
Machinery Safety Requirements
Automatic Tube End Forming Machines contain moving parts and can generate substantial forming forces. Safety measures generally include suitable guarding, emergency-stop functions, control-system safeguards, and procedures for isolating energy during maintenance.
Applicable requirements depend on the country where the machine is installed and operated. Manufacturers and plant operators may need to consider machinery safety standards, electrical safety rules, risk assessments, and workplace equipment requirements.
Workplace Operation and Maintenance
Operators should receive training appropriate to the machine, tooling, and production process. Safety procedures should address loading, unloading, tool changes, jam removal, cleaning, and maintenance.
Hydraulic systems may retain pressure after a machine stops, while electrically driven systems can contain hazardous stored energy. Proper isolation and verification procedures are therefore important before maintenance begins.
Product Quality and Industry Standards
The finished component may need to comply with dimensional drawings, customer specifications, material requirements, or standards relevant to its intended use. Automotive, pressure-related, and fluid-handling applications may have additional qualification and testing requirements.
Manufacturers should distinguish between machine conformity and component conformity. A machine that meets applicable safety requirements does not automatically ensure that every tube produced by it meets the required engineering specification.
Tools and Resources
Engineering Design and Simulation
Computer-aided design software helps engineers define tube-end profiles, mating components, clearances, and assembly dimensions. Forming simulation tools can help estimate material deformation, thinning, stress concentration, and potential wrinkling before production tooling is finalized.
Simulation results depend on the accuracy of material data, friction assumptions, boundary conditions, and model setup. Physical trials and inspection may still be necessary to validate the forming process.
Measurement and Inspection Equipment
Common inspection tools include digital calipers, micrometers, bore gauges, profile gauges, and coordinate measuring machines. Depending on the component, inspection may examine outside diameter, inside diameter, roundness, flare angle, bead height, concentricity, and overall length.
For components used in fluid systems, additional testing may be required to evaluate leakage, pressure resistance, or joint integrity. The appropriate test depends on the product specification and its intended operating conditions.
Machine Selection Checklist
When evaluating automatic tube end forming equipment, engineers commonly consider the following:
Tube material, diameter, and wall thickness range.
Required end-forming operations and profiles.
Dimensional tolerances and inspection methods.
Drive mechanism and available forming force.
Tooling changeover and setup requirements.
Automation interfaces and production-line compatibility.
Safety features and maintenance access.
Documentation, operator training, and process validation.
A structured comparison helps align machine capabilities with actual production requirements rather than relying on a single specification.
FAQs
What are Automatic Tube End Forming Machines used for?
They reshape tube ends through operations such as expansion, reduction, flaring, beading, and swaging. The resulting shapes support component joining, fitting installation, and other manufacturing requirements.
How does an automatic tube end forming machine work?
The machine positions and clamps a tube, moves a forming tool against its end, and releases the component after the required shape is produced. Programmable controls may regulate tool movement, force, and cycle sequence.
What materials can automatic tube end forming machines process?
Depending on machine capacity and tooling, they may process materials such as steel, stainless steel, aluminum, copper, and certain alloys. Material suitability depends on ductility, hardness, tube dimensions, and the selected forming operation.
What factors affect tube end forming quality?
Material properties, wall thickness, tool geometry, alignment, forming force, and process settings all influence the result. Inspection is needed to confirm that the finished tube meets the required dimensions and surface conditions.
How is an automatic tube end forming machine selected?
Selection depends on the required end profile, tube size range, material, production volume, dimensional tolerances, safety requirements, and integration needs. Tooling availability and inspection capabilities are also relevant considerations.
Conclusion
Automatic Tube End Forming Machines reshape tubular components through controlled mechanical operations that support joining, assembly, and manufacturing consistency. Their performance depends on material properties, tooling design, machine control, and appropriate inspection procedures. Developments in programmable automation, production monitoring, and line integration continue to influence tube processing technology. Machine safety, operator training, and compliance with relevant component specifications remain important throughout production.
