Automotive diagnostic equipment refers to electronic tools used to identify, interpret, and monitor conditions within a vehicle.
Modern cars contain numerous electronic control units (ECUs) that manage functions such as engine operation, transmission behavior, braking, airbags, emissions, battery systems, and driver-assistance features. Automotive diagnostic tools communicate with these systems and present information in a form that technicians and vehicle owners can understand.
The development of vehicle diagnostics grew alongside electronic vehicle controls. Earlier vehicles relied heavily on mechanical inspection, while newer vehicles increasingly use computer-controlled systems. On-board diagnostics, commonly called OBD, created a standardized way for compatible equipment to access certain vehicle information. SAE documentation describes OBD communication between vehicles and external diagnostic equipment, including regulated emissions-related data.

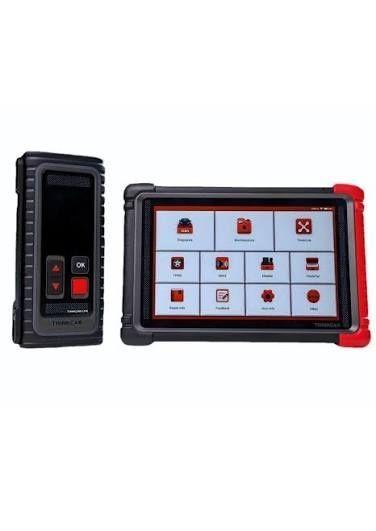

An OBD2 diagnostic equipment setup normally includes a scan device connected to the vehicle's diagnostic connector. Depending on its design, the device may read diagnostic trouble codes, display live sensor information, clear certain stored codes, conduct system tests, or communicate with multiple electronic modules.
Main Types of Diagnostic Equipment
Automotive diagnostic equipment ranges from simple code readers to advanced systems designed for detailed electronic analysis. Common categories include:
- Basic code readers for retrieving selected diagnostic trouble codes.
- Automotive diagnostic scanners for reading data from multiple vehicle systems.
- Professional automotive scanners with expanded testing and data functions.
- Automotive ECU diagnostic tools for examining electronic control units.
- Automotive testing equipment for electrical, battery, charging, and related measurements.
- Commercial vehicle diagnostic equipment designed for trucks, buses, and other larger vehicles.
The actual capabilities vary according to vehicle model, diagnostic protocol, software, hardware, and manufacturer-specific access. A vehicle diagnostic scanner that works with one vehicle may not provide identical functions on another.
Importance
Why Modern Vehicles Need Diagnostic Tools
Vehicle electronics have become more complex as manufacturers add computerized control, sensors, cameras, communication networks, and software-controlled functions. A warning lamp on the dashboard may indicate a problem in an engine system, electrical circuit, emissions component, or another electronic module.
Diagnostic equipment helps organize this information. Instead of relying only on visible symptoms, a technician can examine stored codes and operating data to narrow down possible causes. This can make the diagnostic process more structured, although a fault code alone does not always identify the failed component.
Automotive electronic diagnostic equipment is also relevant to electric and hybrid vehicles. These vehicles contain high-voltage systems, battery management electronics, electric motors, and power-control components that require diagnostic methods suited to their architecture.
Everyday Applications
Diagnostic tools can be used in several situations:
- Checking the meaning of a dashboard warning indicator.
- Reviewing stored diagnostic trouble codes.
- Observing sensor readings while an engine is operating.
- Examining electronic modules and communication networks.
- Checking selected readiness information related to emissions systems.
- Investigating electrical or electronic symptoms.
- Supporting inspection of commercial vehicles and fleet equipment.
The information produced by automotive scan tools should be interpreted alongside physical inspection, manufacturer documentation, wiring information, and other measurements. A scanner is a diagnostic aid rather than a substitute for understanding how the vehicle system operates.
Comparison of Common Equipment Types
| Equipment type | Typical purpose | General capability |
|---|---|---|
| Code reader | Retrieve selected fault codes | Basic |
| OBD2 scanner | Access standardized OBD information | Basic to moderate |
| Vehicle diagnostic scanner | Examine several vehicle modules | Moderate to advanced |
| Professional OBD2 scanner | Broader diagnostic analysis | Advanced |
| Automotive ECU diagnostic tools | Examine electronic control units | Advanced |
| Automotive testing equipment | Measure electrical or physical conditions | Varies |
| Commercial vehicle diagnostic equipment | Diagnose larger vehicles | Vehicle-specific |
Recent Updates
Broader Diagnostic Communication
Recent developments have expanded the capabilities expected from diagnostic equipment. SAE diagnostic standards continue to address communication between vehicles and external test equipment, including newer generations of OBD functionality. A second-generation OBD-II scan-tool specification was issued and subsequently revised, reflecting ongoing development of diagnostic communication methods.
Modern diagnostic environments can also use communication approaches such as Controller Area Network (CAN) and Diagnostics over Internet Protocol (DoIP). These technologies allow diagnostic information to move through different vehicle communication architectures.
Greater Attention to Software and Cybersecurity
Connected vehicles have increased the importance of cybersecurity within vehicle electronics. UNECE work concerning UN Regulations 155 and 156 addresses vehicle cybersecurity and software-update management, with continued implementation discussions during 2025 and further regulatory work in 2026.
This trend affects advanced vehicle diagnostic equipment because diagnostic access increasingly involves software, communication gateways, authentication, and electronic control units. Professional vehicle diagnostic systems therefore need to account for the changing electronic architecture of newer vehicles.
Ongoing Development of Emissions Monitoring
Another development is the wider use of electronic monitoring for vehicle emissions. UNECE announced a new regulation in 2026 involving on-board monitoring and an Environmental Vehicle Passport, with the aim of maintaining emissions oversight throughout a vehicle's life.
These developments show that automotive diagnostic software is becoming part of a broader electronic ecosystem. Diagnostic information can involve emissions, propulsion systems, software, electronic modules, and vehicle communication networks rather than only traditional engine fault codes.
Tools and Resources
Diagnostic Hardware
A suitable diagnostic setup may include an automotive diagnostic scanner, vehicle diagnostic scanner, multimeter, battery tester, oscilloscope, or other measurement equipment. The appropriate combination depends on the vehicle and the type of problem being investigated.
An advanced automotive scan tools platform may provide functions such as live data, actuator testing, module identification, graphing, code interpretation, and system-specific tests. However, these functions differ among equipment and vehicle applications.
Diagnostic Standards and Documentation
Technical standards are useful resources when learning how vehicle diagnostic communication works. SAE J1979 documentation describes diagnostic test modes and information exchanged between compatible OBD systems and external equipment. SAE has continued revising related diagnostic documents through 2026.
Vehicle repair manuals, wiring diagrams, technical bulletins, and manufacturer diagnostic procedures can also help interpret scanner results. These resources provide context that a generic code description may not contain.
Software and Data Resources
Automotive diagnostic software can provide databases containing fault-code descriptions, wiring information, system diagrams, live-data references, and test procedures. Some platforms are designed around particular vehicle groups, while others cover multiple manufacturers.
When using professional automotive diagnostic equipment, important specifications to examine include:
- Supported vehicle makes, models, and model years.
- Supported communication protocols.
- OBD and manufacturer-specific functions.
- ECU access and module coverage.
- Live-data capabilities.
- Software update arrangements.
- Data recording and reporting functions.
- Compatibility with electrical testing equipment.
These factors help explain why diagnostic equipment can vary significantly in its practical capabilities.
FAQs
What is automotive diagnostic equipment?
Automotive diagnostic equipment is electronic hardware and software used to communicate with vehicle control systems, retrieve diagnostic information, observe operating data, and perform selected tests.
What does an automotive diagnostic scanner do?
An automotive diagnostic scanner can communicate with compatible vehicle modules and display information such as diagnostic trouble codes, live sensor readings, system status, and selected test results.
Is OBD2 diagnostic equipment suitable for every vehicle?
OBD2 diagnostic equipment can access standardized information on compatible vehicles, but available functions depend on vehicle design, regulations, communication protocols, and manufacturer-specific systems. More advanced functions may require equipment with broader vehicle coverage.
What are automotive ECU diagnostic tools used for?
Automotive ECU diagnostic tools are used to communicate with electronic control units and examine information associated with systems such as engine management, transmission, braking, airbag, and other electronic functions.
What is the difference between automotive testing equipment and scan tools?
Scan tools primarily communicate with vehicle electronic systems and retrieve software-based diagnostic information. Automotive testing equipment can include physical measurement instruments, such as multimeters and oscilloscopes, that help evaluate electrical signals, voltage, resistance, or other measurable conditions.
Conclusion
Automotive diagnostic equipment has developed from basic fault-code reading into a broader group of electronic tools for examining vehicle systems. Modern vehicle diagnostic equipment can work with standardized OBD information while more advanced systems may communicate with multiple electronic modules and communication networks. Developments in diagnostic standards, cybersecurity, software management, and emissions monitoring are shaping professional vehicle diagnostic systems. Understanding the differences among scanners, ECU tools, testing instruments, and diagnostic software helps explain how modern vehicle testing is performed.
