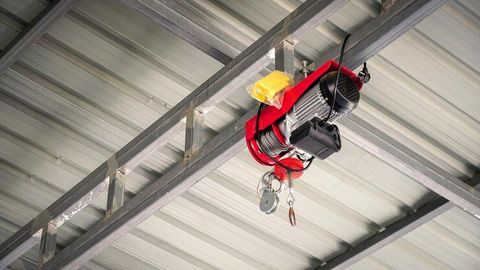

An electric hoist is a powered lifting device designed to raise, lower, and position suspended loads. It uses an electric motor together with a mechanical lifting mechanism, such as a chain or wire rope arrangement, to move material vertically. Electric hoists are commonly integrated with overhead cranes, gantry systems, monorails, workstation cranes, and fixed lifting structures.
Context
The development of powered hoisting equipment followed the growing need to move heavier materials with greater control than could normally be achieved through manual lifting methods. Early lifting systems relied heavily on mechanical advantage, pulleys, drums, chains, and manually operated mechanisms. The introduction of electric motors made it possible to control lifting operations through powered mechanisms.
An electric hoist generally converts electrical energy into mechanical motion. The motor turns a transmission system, which transfers rotational force to a chain wheel or rope drum. The lifting element then moves upward or downward according to the direction selected by the operator.
Electric hoists are available in several configurations. The appropriate arrangement depends on factors such as rated load, lifting height, lifting speed, duty cycle, available mounting structure, operating environment, and the type of material being handled.
Main electric hoist types
Electric hoists can be classified according to their lifting element, construction, mounting arrangement, and intended application.
Electric chain hoist: Uses a load chain passing through a chain wheel. It is commonly used for compact lifting applications.
Electric wire rope hoist: Uses a steel wire rope wound around a drum or guided through a rope system. It is frequently used for heavier loads and greater lifting heights.
Fixed electric hoist: Mounted at a stationary point and used when the lifting location remains in one area.
Trolley-mounted hoist: Attached to a trolley that travels along a beam or crane runway, allowing horizontal movement in addition to vertical lifting.
Low-headroom hoist: Designed where available vertical space is limited.
Double-girder crane hoist: Integrated with crane arrangements where the hoisting mechanism travels along a crane bridge.
The distinction between these types is important because the lifting mechanism affects installation requirements, movement, maintenance needs, and operating characteristics.
Importance
Electric hoists play an important role in industrial material handling because many workplaces need to move loads vertically between different positions. They can be used in manufacturing facilities, warehouses, workshops, maintenance areas, construction-related operations, fabrication plants, and other industrial environments.
Manual lifting becomes increasingly difficult as load mass, lifting height, or handling frequency increases. A powered hoisting mechanism can reduce the amount of physical effort required to move suspended loads while allowing the operator to control lifting and lowering through dedicated controls.
However, an electric hoist is part of a larger lifting system rather than an isolated machine. The supporting structure, trolley, hooks, slings, shackles, electrical system, controls, and load all influence the overall operation.
Key factors that affect hoist selection
Several characteristics should be considered when assessing an electric hoist for an application:
Rated lifting capacity: Indicates the maximum load for which the hoist is designed under specified conditions.
Lifting height: Defines the vertical distance through which the load needs to travel.
Lifting speed: Determines how quickly the load can be raised or lowered.
Duty classification: Relates to the expected operating frequency and workload.
Mounting arrangement: Determines whether the hoist is fixed, trolley-mounted, or integrated into another lifting structure.
Power supply: Includes voltage, frequency, phase arrangement, and electrical requirements.
Operating environment: Covers factors such as temperature, dust, moisture, and potentially corrosive conditions.
Control method: May involve pendant controls, radio controls, push-button stations, or integrated control systems.
Electric hoist components
Although designs vary, most electric hoists contain several fundamental components.
The electric motor supplies rotational power. A gearbox transfers and modifies this motion so that the lifting mechanism can raise the required load. A brake helps control or hold the suspended load when the motor is not driving the lifting mechanism.
The lifting element may be a load chain or wire rope. Chain hoists use a chain wheel or pocket wheel to engage the chain, while wire rope hoists use a drum and associated rope-guiding components.
A hook or similar load attachment point connects the hoist to the load-handling arrangement. Limit devices can restrict movement at predetermined positions, while electrical controls determine the direction and operation of the motor.
| Component | Primary function |
|---|---|
| Electric motor | Provides mechanical power |
| Gearbox | Transfers and modifies motor rotation |
| Brake | Controls or holds lifting motion |
| Chain wheel | Engages and moves the load chain |
| Wire rope drum | Stores and moves wire rope |
| Load chain or wire rope | Transfers lifting force to the load |
| Hook | Connects the lifting system to the load |
| Limit device | Restricts movement at defined positions |
| Control system | Directs lifting and lowering functions |
| Trolley | Allows horizontal travel where applicable |
How the lifting mechanism works
When an electric hoist receives a lifting command, electrical power is supplied to the motor. The motor rotates and transfers motion through the gearbox to the lifting mechanism.
In a chain hoist, the chain wheel engages individual links and pulls the load chain through the mechanism. In a wire rope hoist, the rope is wound onto or unwound from a rotating drum, depending on the direction of movement.
The brake and control system work alongside the motor to regulate movement. The exact arrangement differs according to hoist design, capacity, control architecture, and manufacturer specifications.
Recent Updates
Recent developments in electric hoist technology have focused on improved control, monitoring, equipment integration, energy management, and more detailed approaches to lifting-system design. These changes are particularly relevant as industrial facilities increasingly connect material-handling equipment with digital monitoring systems.
One notable standards development was the publication of ISO 16625:2025, which addresses the selection of steel wire ropes, drums, and sheaves for cranes and hoists. The standard incorporates factors related to rope-drive geometry and drum and sheave geometry when assessing the selection of these components.
This reflects a broader trend toward evaluating the complete lifting mechanism rather than considering individual components independently. Wire rope characteristics, drum dimensions, sheave geometry, operating conditions, and mechanism classification can all influence equipment design.
Digital monitoring and control
Modern electric hoists may incorporate electronic controls and monitoring functions that provide information about operating conditions. Depending on the system, monitoring can include operating cycles, motor conditions, overload events, limit positions, or other equipment parameters.
Variable-speed control is another area of development. Instead of relying on a single fixed movement rate, some systems can provide controlled acceleration and deceleration. This can help manage load movement, particularly when precise positioning is important.
Remote control technology has also become more common in industrial lifting applications. Wireless controls can allow operators to position themselves where the load and surrounding equipment are easier to observe, subject to the controls and procedures applicable to the specific installation.
These technologies do not remove the need for appropriate inspection, operating procedures, equipment selection, or trained personnel.
Laws or Policies
Electric hoists are subject to different legal and technical requirements depending on where they are installed and used. Because requirements differ between jurisdictions, a general guide cannot establish one universal legal procedure for every application.
Rules governing lifting equipment commonly address areas such as equipment design, rated capacity, installation, inspection, testing, maintenance, operator competence, and workplace risk control.
International and national standards may also define technical requirements for particular categories of hoists and cranes. For example, ASME B30.16 addresses overhead, underhung, and stationary hoists, including electric-powered chain and wire rope hoists used for vertical lifting and lowering of freely suspended loads.
ISO standards provide another source of technical requirements and guidance for lifting equipment. ISO 16625:2025 specifically addresses selection of wire ropes, drums, and sheaves for cranes and hoists.
Standards should not automatically be treated as laws. Whether a particular standard is mandatory depends on the jurisdiction, equipment category, workplace requirements, contract conditions, and other applicable rules.
For a specific installation, the relevant regulatory authority, current national requirements, applicable technical standards, and equipment documentation should be considered together.
Tools and Resources
Several resources can help people understand electric hoists and evaluate technical information without relying on promotional material.
Manufacturer documentation
Technical manuals, installation instructions, load charts, wiring information, component diagrams, and inspection instructions provide information specific to a particular hoist. These documents are important because two hoists with similar rated capacities can have different operating and installation requirements.
Standards databases
Standards organizations maintain searchable catalogs containing information about lifting equipment standards. ISO and ASME resources can help readers identify documents relevant to cranes, hoists, wire ropes, and related equipment.
Load and lifting calculations
Engineering calculations can help determine factors such as load capacity, lifting height, rope arrangement, reeving configuration, motor requirements, and supporting-structure loads. These calculations should account for the complete lifting system rather than relying only on the hoist's rated capacity.
Inspection records
A structured inspection record can contain:
Equipment identification
Rated capacity
Inspection date
Operating hours or cycles where applicable
Observed condition
Defects or irregularities
Corrective work
Inspection findings
Next scheduled inspection
Keeping consistent records can make equipment history easier to review.
Training and technical references
Industrial training materials, technical manuals, standards publications, and equipment documentation can help explain terminology such as duty classification, reeving, rated capacity, headroom, load chain, wire rope, braking systems, and limit devices.
FAQs
What is an electric hoist and how does it work?
An electric hoist is a powered lifting device that uses an electric motor to raise and lower suspended loads. The motor transfers power through a gearbox to either a chain mechanism or wire rope drum, while brakes and controls regulate movement.
What are the main electric hoist types?
The main electric hoist types include electric chain hoists, electric wire rope hoists, fixed hoists, trolley-mounted hoists, and low-headroom configurations. The appropriate type depends on load requirements, lifting height, movement requirements, available space, and operating conditions.
What components are found in an electric hoist?
Common electric hoist components include the motor, gearbox, brake, chain wheel or rope drum, load chain or wire rope, hook, limit devices, and control system. Trolley-mounted arrangements also include a trolley and travel mechanism.
How is an electric chain hoist different from a wire rope hoist?
An electric chain hoist lifts the load using a load chain and chain wheel, while a wire rope hoist uses steel wire rope and usually a rotating drum. Chain arrangements can be compact, while wire rope configurations are frequently used where greater lifting heights or different crane arrangements are required.
What standards apply to electric hoists?
Applicable standards depend on the equipment and jurisdiction. Standards such as ASME B30.16 address certain overhead, underhung, and stationary hoists, while ISO 16625:2025 addresses selection of wire ropes, drums, and sheaves for cranes and hoists.
Conclusion
An electric hoist combines an electric motor, mechanical transmission, lifting element, braking system, controls, and supporting components to raise and lower suspended loads. Chain and wire rope hoists use different lifting mechanisms and are suited to different equipment arrangements and operating requirements. Recent developments include more digital monitoring, controlled movement, and updated technical approaches to crane and hoist components, including ISO 16625:2025. Applicable regulations and standards vary by jurisdiction and should be considered together with the equipment's technical documentation.
