A fiberscope is an optical inspection instrument designed to help people examine areas that are difficult to reach with direct vision.
It uses flexible optical fibers or related imaging technology to transmit light and provide a view of internal spaces, narrow passages, and enclosed components. A flexible optical fiberscope is commonly used in industrial maintenance, aviation, manufacturing, and equipment inspection.
The technology developed from the need to inspect internal structures without completely dismantling machinery or equipment. Traditional inspection methods often require disassembly, which can take time and introduce additional handling. Fiberscopes provide another way to examine internal surfaces and identify visible signs of wear, damage, corrosion, or obstruction.

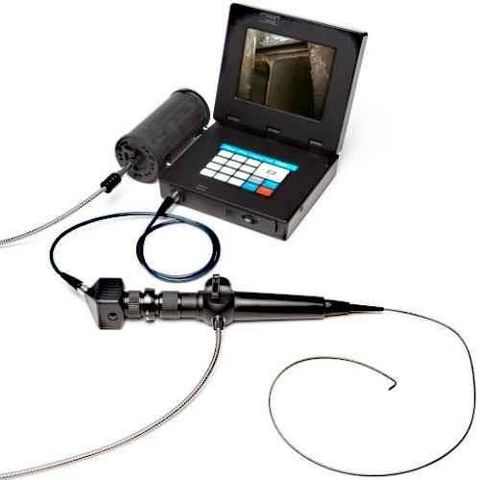

Modern industrial fiberscope inspection equipment may include an insertion tube, illumination system, eyepiece or display, control section, and image capture functions. Depending on the design, the viewing tip may bend in different directions to help an operator examine surfaces around corners or inside complex structures.
An industrial fiberscope manufacturer may develop instruments for particular inspection environments, such as narrow engine passages, industrial pipes, or enclosed mechanical assemblies. These instruments are part of the wider category of industrial nondestructive testing equipment, which allows certain conditions to be examined without damaging the component being inspected.
How Fiberscopes Work
A traditional fiber optic inspection scope uses bundles of optical fibers to transmit light or an image. One group of fibers may carry illumination toward the inspection area, while another group transmits the image back to the viewing end.
Some modern flexible inspection instruments instead use miniature cameras positioned near the insertion tip. These video-based instruments can display images on a screen and may include digital recording features. Although both technologies can inspect confined spaces, their image transmission methods and optical characteristics differ.
Common Types of Fiberscopes
Fiberscopes vary according to their construction, viewing method, flexibility, and intended application.
Flexible optical fiberscopes: Designed to navigate curved or restricted passages.
Video inspection scopes: Use a small camera to capture images at the inspection tip.
Articulating fiberscopes: Allow the viewing tip to move in selected directions.
Special-purpose inspection scopes: Adapted to particular equipment dimensions, viewing angles, or environmental requirements.
The choice depends on the size of the opening, the distance to the inspection area, the expected image detail, and the conditions inside the component.
Importance
Fiberscopes are important because many mechanical and industrial components contain internal areas that cannot be examined easily from the outside. These areas may include engine passages, turbine assemblies, narrow pipes, gear housings, and internal machine cavities.
Industrial remote visual inspection equipment can help inspectors examine these locations while limiting the need for disassembly. The resulting images may support maintenance planning, condition assessment, and decisions about whether further examination is necessary.
Applications Across Industries
In aviation, an aviation inspection fiberscope can help examine accessible internal areas of engines and other aircraft components. Inspectors may look for cracks, surface deterioration, foreign objects, deposits, or other visible irregularities. The instrument does not replace required inspection procedures or other testing methods.
In manufacturing facilities, fiberscopes can help examine enclosed machinery, cooling passages, molds, and assembled components. They may also be used in automotive production, power generation, and selected pipeline applications.
The main applications include:
Internal examination of machinery and mechanical assemblies.
Inspection of narrow passages in aviation equipment.
Examination of pipes and enclosed industrial components.
Documentation of visible defects during maintenance.
Monitoring changes in accessible internal surfaces over time.
Benefits and Practical Limitations
A fiberscope can reduce the amount of disassembly needed for certain visual inspections. Image capture can also provide a record for comparison with earlier findings, helping maintenance teams document changes in a component's condition.
However, the instrument has limitations. Image quality may be affected by poor illumination, contamination, limited viewing angles, or the condition of the optical system. A fiberscope also cannot reveal every internal defect, especially when damage lies beneath a surface or outside the camera's field of view.
Inspection findings therefore need to be interpreted in context. Other nondestructive testing methods may be required when a defect cannot be confirmed through visual examination alone.
Recent Updates
Developments in fiberscope technology from 2024 through 2026 have continued to reflect wider trends in digital imaging, equipment connectivity, and industrial inspection. Improvements vary by instrument type and manufacturer, so not every feature is available in every model.
Digital Imaging and Image Documentation
Digital displays and image recording are increasingly relevant to industrial inspection workflows. Depending on the equipment, operators may capture still images, record video, label inspection findings, and transfer documentation to a maintenance system.
High resolution industrial fiberscope systems are designed to show fine visual details within the limits of their optics and sensor technology. Actual image clarity also depends on lighting, working distance, viewing angle, and the condition of the inspected surface.
Improved Tip Control and Flexibility
Articulation and insertion-tube design remain important areas of development. A flexible instrument must navigate the available space while allowing the operator to position the viewing tip accurately.
Some systems include adjustable illumination, improved control mechanisms, and interchangeable accessories. These features can help inspectors adapt the instrument to different geometries, although the dimensions and movement range still impose practical limits.
Integration With Digital Inspection Records
Industrial inspection increasingly involves organized digital records rather than isolated observations. Fiberscope images may be linked to equipment identification, inspection reports, maintenance histories, and follow-up findings.
Artificial intelligence and image analysis are also areas of interest in industrial inspection. Automated image assessment may assist with organizing or identifying visual patterns, but its results require appropriate validation and should not be treated as conclusive evidence without supporting inspection procedures.
| Feature | Purpose | Practical Consideration |
|---|---|---|
| Flexible insertion tube | Reaches confined spaces | Must fit the opening and passage |
| Articulating tip | Changes the viewing direction | Movement range varies by design |
| Adjustable illumination | Lights internal surfaces | Reflective surfaces may cause glare |
| Digital image capture | Records inspection findings | Image quality depends on several factors |
| Replaceable components | Supports selected inspection configurations | Compatibility must be checked |
| Image analysis software | Organizes or evaluates images | Results require suitable interpretation |
Tools and Resources
Selecting and using fiberscopes involves more than comparing image displays. Inspection requirements, physical dimensions, operating conditions, and documentation needs all influence the equipment choice.
Equipment Specifications and Inspection Planning
Manufacturer documentation can explain insertion-tube diameter, working length, articulation range, field of view, depth of field, illumination, and image resolution. Reviewing these specifications helps determine whether an instrument can physically reach the intended inspection area.
A borescope and fiberscope supplier may provide information about different inspection technologies and their technical configurations. When evaluating equipment, the relevant details include:
Access dimensions: The minimum opening through which the probe must pass.
Working length: The distance the instrument needs to travel.
Viewing direction: The angle required to see the target surface.
Image requirements: The level of detail needed to identify visible conditions.
Environmental compatibility: Applicable temperature, moisture, and contamination limits.
Documentation: Available image storage, recording, and reporting functions.
Inspection Standards and Training Resources
Technical documentation from aviation authorities, industrial standards organizations, and equipment manufacturers can explain inspection procedures and limitations. Training materials may cover probe handling, image interpretation, cleaning, and equipment checks.
Custom industrial inspection scopes may be developed for unusual access requirements or specialized machinery. Their suitability depends on the application, mechanical dimensions, optical performance, and environmental conditions.
For organizations using industrial nondestructive testing equipment, written inspection procedures can help maintain consistent records. These procedures may identify the inspection area, acceptable image quality, reporting requirements, and circumstances that require another testing method.
FAQs
What is a flexible optical fiberscope used for?
A flexible optical fiberscope is used to view internal areas that are difficult to reach directly. Common applications include machinery inspection, aviation maintenance, pipe examination, and manufacturing quality checks.
How does industrial fiberscope inspection equipment work?
Industrial fiberscope inspection equipment uses optical fibers or a miniature camera to transmit a view of an internal surface. Illumination helps make the inspection area visible, while the operator positions the probe to examine the required location.
What should be considered when choosing a high resolution industrial fiberscope?
Important factors include probe diameter, working length, articulation, illumination, viewing angle, and image quality. The instrument must also suit the component's geometry and the inspection procedure.
What is the difference between a borescope and a fiberscope?
A borescope is a broad term for an instrument used to inspect confined spaces. A fiberscope traditionally transmits images through optical fiber bundles, while other borescopes may use rigid optical systems or miniature cameras.
Can fiberscopes replace other industrial nondestructive testing equipment?
No. Fiberscopes support visual inspection but cannot detect every type of internal defect. Depending on the material and suspected damage, methods such as ultrasonic testing or radiographic testing may also be needed.
Conclusion
Fiberscopes provide a practical way to examine confined internal spaces in industrial, manufacturing, and aviation environments. Their capabilities depend on optical design, flexibility, illumination, image quality, and access requirements. Digital imaging and improved inspection records are shaping current developments, while equipment limitations and operator judgment remain important. Fiberscope inspections are one part of a broader approach to equipment condition assessment and nondestructive testing.
