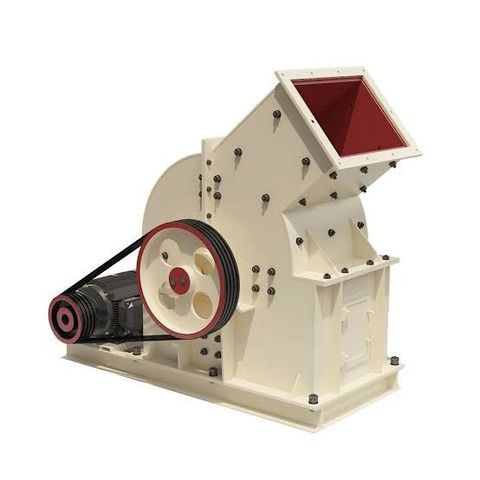

Hammer crusher machines are widely used for reducing materials into smaller sizes through repeated impact.
They are commonly used in mining, quarrying, cement production, aggregate processing, and other material-processing applications. Their operating principle is relatively straightforward, but factors such as rotor design, hammer configuration, feed size, crushing chamber, and discharge arrangement can significantly affect performance.
Understanding these features can help users compare different machine configurations and identify equipment suited to particular material-processing requirements.
Why Hammer Crusher Machines Matter
Hammer crushers use rapidly rotating hammers to strike incoming material against breaker plates, impact surfaces, or other components within the crushing chamber. The repeated impact breaks the material into smaller pieces.
This approach can be useful when a process requires substantial size reduction in a relatively compact machine. However, the suitability of a hammer crusher depends on material hardness, abrasiveness, moisture content, desired particle size, and required production capacity.
The machine's configuration should therefore be considered alongside the characteristics of the material being processed.
How Hammer Crusher Machines Work
A hammer crusher typically contains a rotor, hammers, crushing chamber, breaker plates, feed opening, and discharge area.
Material enters through the feed opening while the rotor rotates at a specified speed. The hammers attached to the rotor strike the material, generating impact forces that fracture it.
After the initial impact, particles can collide with internal surfaces or other particles. Material continues through the crushing chamber until it reaches a size that allows it to leave through the discharge opening or grate.
Main Operating Stages
- Feeding: Raw material enters the crushing chamber.
- Impact: Rotating hammers strike the material.
- Secondary breakage: Material encounters internal surfaces and additional impacts.
- Size reduction: Particles continue breaking into smaller pieces.
- Discharge: Material exits once it reaches the required size range.
Key Features of Hammer Crusher Machines
Different hammer crusher machines can have substantially different configurations. Several features deserve attention when comparing equipment.
Rotor Design
The rotor is one of the central mechanical components. It carries the hammers and transfers rotational energy into the crushing process.
Rotor diameter, width, rotational speed, balancing, and structural design can influence the machine's operating characteristics. Proper balancing is particularly important because high-speed rotation can generate substantial mechanical forces.
Hammer Configuration
Hammers directly interact with the feed material. Their number, shape, arrangement, material composition, and mounting method can vary between machine designs.
Wear-resistant materials may be used for applications involving abrasive feed. The hammer design should correspond to the material characteristics and expected operating conditions.
Crushing Chamber
The crushing chamber determines how material interacts with the rotating hammers and internal surfaces.
Its dimensions and internal arrangement influence the movement of material and the degree of size reduction. Breaker plates, liners, and other wear components can also affect the crushing process.
Feed Opening
The feed opening determines the maximum practical size of material entering the crusher.
A machine with an appropriately sized feed opening can reduce the need for excessive upstream size reduction. Feed characteristics should always be considered when evaluating equipment dimensions.
Discharge Arrangement
The discharge system influences the resulting particle size. Some hammer crushers use grates or controlled openings to regulate the material leaving the crushing chamber.
The discharge configuration should correspond with downstream processing requirements. A finer product may require different operating conditions from a coarse product.
Important Specifications to Compare
Specifications provide a structured way to compare hammer crusher machines.
| Specification | Why It Matters |
|---|---|
| Feed opening | Determines the practical feed size |
| Rotor diameter | Influences crushing chamber and rotor characteristics |
| Rotor speed | Affects impact energy and material movement |
| Production capacity | Indicates expected material throughput |
| Motor power | Relates to the energy available for operation |
| Hammer material | Influences wear characteristics |
| Discharge size | Helps determine resulting particle dimensions |
| Machine weight | Relevant to foundation and installation planning |
| Crusher dimensions | Important for plant layout and access |
Capacity figures should be interpreted carefully because actual throughput can change according to feed size, material hardness, moisture, machine configuration, and operating conditions.
Hammer Crusher vs. Jaw Crusher
Hammer crushers and jaw crushers both reduce material size, but they use different mechanical principles.
| Feature | Hammer Crusher | Jaw Crusher |
|---|---|---|
| Primary force | Impact | Compression |
| Main moving component | Rotor with hammers | Moving jaw |
| Typical operation | Repeated impact | Compression between jaws |
| Product characteristics | Can produce relatively fine material | Often produces coarser crushed material |
| Feed suitability | Depends strongly on hardness and abrasiveness | Widely used for hard feed materials |
| Wear components | Hammers, liners, breaker surfaces | Jaw plates and related components |
The appropriate choice depends on the material, required reduction ratio, product specifications, capacity, and overall processing arrangement.
Factors Affecting Hammer Crusher Performance
Several operating factors can influence crushing results.
Material Characteristics
Material hardness, abrasiveness, density, moisture, and fracture characteristics can affect performance. Highly abrasive materials can increase wear on hammers and internal surfaces.
Feed Size
Oversized feed can place additional loads on the crusher and affect throughput. Consistent feed dimensions can help maintain more predictable operating conditions.
Rotor Speed
Rotor speed influences impact energy and material movement. The appropriate speed depends on the crusher design and intended application rather than simply maximizing rotational speed.
Discharge Setting
The discharge arrangement affects the size and flow of material leaving the crushing chamber. It should be coordinated with the requirements of downstream equipment.
Wear Condition
Worn hammers, liners, breaker plates, and other components can alter crushing performance. Regular inspection helps identify changes before they significantly affect the process.
Costs and Pricing Factors
The price of a hammer crusher machine depends on several technical and configuration-related factors.
These can include:
- Machine size and capacity
- Rotor configuration
- Motor power
- Hammer material
- Crushing chamber dimensions
- Wear-component design
- Automation and monitoring equipment
- Installation requirements
- Spare-component requirements
Instead of comparing price alone, users can examine the complete specification and consider how the machine fits into the wider processing system.
Best Practices for Selecting Hammer Crusher Machines
A systematic evaluation can make equipment comparison easier.
1. Define the material: Identify hardness, abrasiveness, moisture, density, and feed characteristics.
2. Establish capacity requirements: Determine the approximate tonnes-per-hour requirement.
3. Identify the target product size: Understand the desired output range before comparing discharge arrangements.
4. Check feed dimensions: Make sure the feed opening corresponds with the material entering the crusher.
5. Examine wear components: Review hammer and liner materials in relation to the application.
6. Consider maintenance access: Check whether major wear components can be inspected and replaced efficiently.
7. Review complete specifications: Compare rotor design, motor power, dimensions, capacity, and discharge configuration together.
Who Are Hammer Crusher Machines Suitable For?
Hammer crushers can be relevant to applications involving materials that can be effectively reduced through impact. Industries and operations may include mining, cement processing, aggregate production, quarrying, mineral processing, and recycling.
The machine configuration should be matched with the feed material and processing objectives. Applications involving highly abrasive or exceptionally hard materials may require careful evaluation of wear characteristics before selecting an impact-based crushing system.
Frequently Asked Questions
What are hammer crusher machines used for?
Hammer crusher machines are used to reduce various materials into smaller particles through repeated impact from rotating hammers. Applications can include mining, aggregate processing, quarrying, cement production, and mineral processing.
How does a hammer crusher work?
A hammer crusher works by feeding material into a chamber containing a rotating rotor fitted with hammers. The hammers strike the material repeatedly, causing it to fracture and reduce in size.
What affects hammer crusher capacity?
Capacity can be influenced by feed size, material properties, rotor speed, crusher dimensions, discharge configuration, moisture content, and operating conditions.
What is the difference between a hammer crusher and a jaw crusher?
A hammer crusher primarily uses impact forces generated by rotating hammers, while a jaw crusher uses compression between a fixed jaw and a moving jaw. Their applications depend on material and required product characteristics.
How can hammer crusher wear be managed?
Regular inspection of hammers, liners, breaker plates, and other wear components can help identify deterioration. Operating the machine within its specified conditions can also help manage unnecessary wear.
Conclusion
Hammer crusher machines combine a rotating hammer assembly with a crushing chamber to achieve material size reduction through repeated impact. Features such as rotor design, hammer configuration, feed opening, crushing chamber, discharge arrangement, and wear materials influence how a machine performs.
When comparing equipment, users should consider material characteristics, feed size, target product size, capacity, maintenance requirements, and complete machine specifications. Evaluating these factors together provides a clearer basis for selecting a configuration that matches the intended crushing application.
