An HDPE extrusion machine is industrial equipment used to manufacture products from high-density polyethylene (HDPE), a thermoplastic material commonly used in pipes, sheets, and other plastic components.
The process involves heating plastic material until it becomes soft enough to flow, shaping it through a die, and cooling it to maintain the required dimensions. HDPE pipe manufacturing is widely associated with water distribution, drainage, irrigation, and industrial fluid transportation.

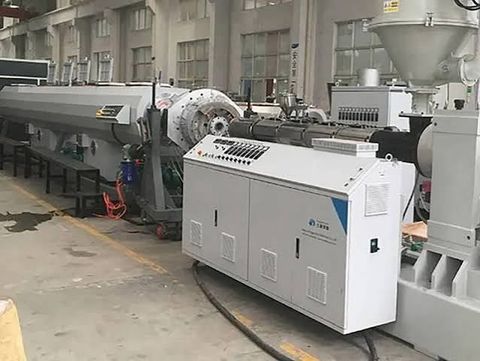

An HDPE pipe manufacturing machine typically combines a feeding system, extruder, die assembly, cooling equipment, haul-off unit, and cutting mechanism. These components work together to transform plastic pellets into a continuous pipe with a specified diameter and wall thickness. The final product depends on the material properties, machine settings, cooling conditions, and quality checks.
How HDPE Extrusion Works
The process begins when HDPE pellets enter the machine through a hopper. A rotating screw moves the material through a heated barrel, where heat and mechanical action melt and mix the polymer. The molten plastic then passes through a die that shapes it into a pipe or another profile.
For pipe manufacturing, the extruded material usually enters a calibration and cooling section. Vacuum sizing equipment may help maintain the outer diameter while cooling tanks remove heat and stabilize the shape. A haul-off unit pulls the pipe at a controlled speed, and a cutting system divides it into specified lengths.
Main Types of HDPE Extrusion Equipment
Different production requirements call for different machine configurations. Industrial HDPE extrusion equipment may be designed for pipes, sheets, pellets, or recycled plastic materials.
Pipe extrusion lines produce pipes for water, drainage, irrigation, and industrial applications.
Sheet extrusion machines form flat plastic sheets used in fabrication, packaging, and construction.
Pellet extrusion systems process polymer materials into pellets for further manufacturing.
Recycling extrusion equipment processes suitable recovered plastics into material that can be reused in manufacturing.
HDPE sheet extrusion machine manufacturers generally work with equipment designed for flat products, while HDPE pipe extrusion line suppliers focus on systems that control pipe dimensions, cooling, and continuous production.
Importance
HDPE extrusion plays an important role in producing plastic components used in infrastructure and manufacturing. HDPE pipes are valued for their resistance to corrosion, relatively low weight, and ability to accommodate certain ground movements when properly designed and installed. Their suitability depends on the application, operating conditions, material grade, and relevant standards.
Applications in Everyday Infrastructure
HDPE pipes are used in several areas:
Water distribution: carrying treated water through underground or above-ground networks.
Agriculture: transporting water through irrigation systems.
Drainage: supporting the movement of wastewater and stormwater where the pipe specification is suitable.
Industry: carrying compatible fluids through designated piping systems.
Telecommunications: protecting cables through appropriately designed ducts.
Consistent pipe dimensions matter because they affect connections, pressure performance, and installation. An automatic HDPE pipe production line can coordinate extrusion, sizing, cooling, pulling, and cutting to reduce variation between production stages.
Production Quality and Operational Challenges
Manufacturing HDPE pipes requires control over several variables. Temperature differences, unstable material flow, incorrect pulling speed, and uneven cooling can lead to dimensional variation or surface defects. Contamination and unsuitable raw materials may also affect the finished product.
Quality checks can include measuring outside diameter, wall thickness, ovality, and pipe length. Depending on the intended application, manufacturers may also conduct pressure, tensile, or other tests required by applicable standards.
Equipment selection involves more than the extruder itself. Production capacity, pipe diameter range, energy use, maintenance needs, operator training, and available floor space all influence how a production line operates.
Recent Updates
Developments in HDPE extrusion from 2024 through 2026 have generally focused on process monitoring, energy efficiency, automation, and the use of recycled materials where technical requirements permit. The extent of these changes varies among manufacturers and production facilities.
Automation and Process Monitoring
Modern extrusion lines may use digital controls to monitor barrel temperatures, screw speed, melt pressure, cooling conditions, and haul-off speed. These measurements help operators identify changes during production and adjust process settings when necessary.
High output HDPE extruder systems may incorporate coordinated control systems that help maintain stable material flow. However, production capacity depends on the polymer grade, screw design, die configuration, product dimensions, and downstream equipment.
Screw Design and Material Processing
Twin screw HDPE extrusion systems use two rotating screws rather than one. Depending on their configuration, twin-screw systems can support particular mixing, compounding, or material-processing requirements. Single-screw extruders remain common in conventional HDPE pipe production, so the appropriate design depends on the intended process.
HDPE pellet extrusion machine suppliers may provide equipment for processing polymer compounds or preparing pellets from suitable feedstock. Pellet production differs from pipe extrusion because the output must be formed, cooled, and cut into individual granules.
Recycling and Resource Efficiency
HDPE plastic recycling extrusion equipment is used to process suitable recovered plastic into material for further applications. The process may include sorting, washing, drying, size reduction, melting, filtration, and pelletizing, depending on the condition of the input material.
Recycled HDPE may be suitable for certain products, but its use in pressure pipes or other regulated applications depends on material properties, contamination controls, traceability, and applicable standards. Recycling does not automatically make every recovered plastic suitable for every application.
Tools and Resources
Several technical resources help explain how extrusion equipment is selected, operated, and evaluated. Their relevance depends on the product being manufactured and the required production standards.
Production Planning and Measurement Tools
Manufacturers may use process calculators, engineering drawings, dimensional gauges, and production records to monitor pipe output. A simple production estimate can be developed using line speed and operating time, although actual output also depends on downtime, rejected products, and production changes.
For example, a line running at 2 metres per minute for 60 minutes would theoretically produce 120 metres of pipe before accounting for interruptions or quality-related losses.
Standards and Technical Documentation
Technical standards and equipment manuals provide information about material requirements, dimensions, testing methods, and operating limits. Relevant resources include:
ISO standards covering polyethylene piping systems and related test methods.
ASTM International standards addressing polyethylene pipe materials and product requirements.
Equipment manuals describing screw operation, temperature settings, maintenance, and safety procedures.
Material datasheets specifying polymer grade, melt flow characteristics, and other relevant properties.
Quality-control records documenting measurements, production conditions, and test results.
HDPE extrusion machine manufacturers may use different machine configurations, so technical specifications should be interpreted in relation to the intended product and production process.
| Equipment component | Main function | Important operating consideration |
|---|---|---|
| Hopper and feeder | Supplies polymer material | Consistent feeding |
| Extruder and screw | Melts and moves the polymer | Temperature and material flow |
| Die assembly | Forms the pipe profile | Die alignment and dimensions |
| Sizing and cooling unit | Stabilizes pipe shape | Cooling consistency |
| Haul-off unit | Pulls the pipe forward | Controlled pulling speed |
| Cutting unit | Divides pipe into lengths | Accurate cutting |
| Inspection equipment | Checks product dimensions | Measurement accuracy |
FAQs
What is an HDPE pipe manufacturing machine?
An HDPE pipe manufacturing machine is equipment that melts polyethylene pellets and forms them into pipes through extrusion, sizing, cooling, and cutting. The line configuration depends on the pipe dimensions and intended application.
How does an automatic HDPE pipe production line work?
An automatic HDPE pipe production line coordinates material feeding, extrusion, pipe sizing, cooling, pulling, and cutting. Sensors and control systems may monitor operating conditions, while operators oversee production and quality checks.
What should be considered when evaluating HDPE pipe extrusion line suppliers?
Important considerations include the required pipe diameter range, production capacity, compatible polymer grades, control features, cooling arrangements, maintenance requirements, safety provisions, and applicable technical standards.
What are high output HDPE extruder systems used for?
High output HDPE extruder systems are designed to process larger quantities of polymer within a given operating period. Actual throughput depends on machine design, material characteristics, pipe dimensions, and the capacity of downstream equipment.
Can HDPE plastic recycling extrusion equipment process recycled plastic?
Yes, suitable recycling extrusion equipment can melt and process recovered HDPE. The resulting material must be evaluated for contamination, consistency, and intended use, particularly when regulatory or pressure-performance requirements apply.
Conclusion
An HDPE extrusion machine transforms polyethylene pellets into pipes, sheets, and other products through controlled heating, shaping, and cooling. Production quality depends on equipment design, material properties, operating conditions, and appropriate testing. Automation and recycling technologies are expanding the range of available processing methods, although their suitability varies by application. Understanding these factors provides a useful foundation for learning about modern plastic pipe manufacturing.
