Battery dry electrode processing is a manufacturing approach in which active electrode materials are processed and applied without using the conventional liquid-solvent slurry.
Instead of mixing active materials with a liquid solvent and subsequently removing that solvent, dry processing relies on dry powders, binders, mechanical mixing, film formation, and controlled compaction.
The approach is being investigated and developed for lithium-ion battery manufacturing because eliminating solvent handling and drying stages can change the equipment arrangement and energy requirements of electrode production.
A dry electrode production line can include powder preparation, dry mixing, fiberization or binder activation, film formation, calendering, current-collector lamination, cutting, and inspection. The exact sequence depends on the dry-electrode technology and electrode chemistry.
What Is Battery Dry Electrode Processing?
Battery dry electrode processing is a method of producing battery electrodes without forming a conventional solvent-based slurry.
A typical electrode contains several materials:
- Active material
- Conductive additive
- Binder
- Current collector
For a cathode, the active material may be a lithium-containing compound. For an anode, graphite, silicon-containing materials, or other active materials may be used.
In a wet process, these components are mixed with a solvent to create a slurry. In dry processing, the solid components are blended and transformed into a cohesive electrode layer without requiring the same liquid-slurry preparation route.
Why Dry Electrode Processing Is Used
Reduced Solvent Handling
Dry processing can reduce or eliminate the use of certain solvents associated with conventional slurry coating.
This changes the requirements for solvent recovery, ventilation, and drying systems.
Fewer Processing Stages
A conventional wet electrode process typically includes slurry mixing, coating, solvent evaporation, and solvent recovery.
Dry processing can combine material preparation and electrode formation into a more direct sequence.
Different Energy Requirements
Wet electrode manufacturing can require substantial thermal energy to evaporate solvent from coated electrodes.
Dry processing changes this energy demand because the electrode does not undergo the same solvent-evaporation stage.
High Electrode Loading
Dry processing can support the development of electrodes with high active-material loading and controlled thickness, depending on the selected process and material system.
How Battery Dry Electrode Processing Works
The process varies among technologies, but a typical sequence includes the following stages.
1. Raw Material Preparation
Active material, conductive additives, and binder are prepared for processing.
Particle size, moisture content, morphology, and material composition can influence subsequent processing.
2. Dry Mixing
The solid components are introduced into a dry mixer.
The objective is to distribute the active material, conductive additive, and binder throughout the mixture.
Mixing equipment can use mechanical shear, impact, or other forces depending on the material system.
3. Binder Fiberization
In some dry-processing approaches, mechanical forces cause the polymer binder to form fibrils or a fibrous network.
This network can bind the active material and conductive particles together.
The degree of fiberization depends on binder chemistry, mixing conditions, temperature, and mechanical energy.

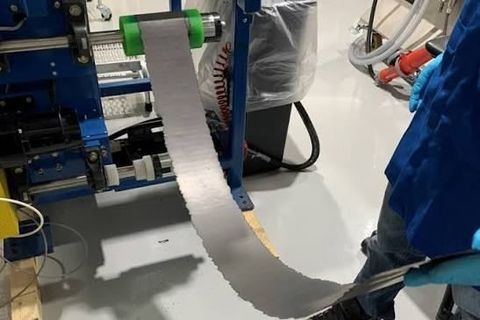

4. Electrode Film Formation
The processed powder mixture is transformed into a self-supporting electrode film.
Different approaches can be used, including:
- Dry powder compaction
- Roll-based film formation
- Shear-based processing
- Powder spreading
- Extrusion-assisted formation
The objective is to create a uniform electrode layer with controlled thickness and mechanical strength.
5. Lamination to the Current Collector
The dry electrode film can be bonded to a metal current collector.
Aluminum foil is commonly associated with cathodes, while copper foil is commonly associated with anodes.
Pressure and temperature can be controlled during lamination according to the material system.
6. Calendering
The electrode and current collector can pass through calendering rolls.
Calendering compresses the electrode layer and controls:
- Thickness
- Density
- Porosity
- Surface characteristics
- Mechanical structure
The required conditions depend on the electrode chemistry and cell design.
7. Slitting and Cutting
The electrode sheet is divided into appropriate widths or shapes for the next battery assembly stage.
Slitting equipment must maintain dimensional accuracy while minimizing edge damage and particle generation.
8. Inspection
The finished electrode is inspected for thickness, coating uniformity, density, surface defects, adhesion, and other characteristics.
Automated optical and dimensional measurement systems can be integrated into the production line.
Main Equipment Used in Dry Electrode Processing
Dry Powder Mixer
The mixer distributes active material, conductive additives, and binder.
Mixing intensity and residence time influence the structure of the processed material.
Fiberization or Shear Processing Equipment
Specialized equipment can apply mechanical forces to the binder-containing mixture.
This can create the fibrous binder network required by selected dry-processing methods.
Dry Electrode Forming System
The forming system converts the mixed powder into a continuous or semi-continuous electrode layer.
Roll presses, compaction systems, or other forming technologies can be used.
Lamination Equipment
Lamination equipment bonds the electrode layer to the current collector.
Pressure, temperature, line speed, and web tension can be controlled during the process.
Calendering Machine
Calendering rolls compress the electrode to achieve the desired density and thickness.
Roll gap, pressure, temperature, and speed are important process parameters.
Slitting Equipment
Slitting machines divide the electrode web into narrower rolls or strips.
Precision slitting is important because electrode dimensions affect subsequent cell assembly.
Inspection Systems
Measurement systems can continuously monitor electrode thickness, surface condition, width, alignment, and other characteristics.
Comparison of Wet and Dry Electrode Processing
| Feature | Wet Electrode Processing | Dry Electrode Processing |
|---|---|---|
| Material preparation | Slurry-based | Dry powder-based |
| Solvent use | Typically required | Can avoid conventional solvent use |
| Drying stage | Required for solvent removal | Conventional solvent drying is avoided |
| Solvent recovery | May be required | Reduced requirement |
| Main mixing form | Liquid slurry | Dry powder mixture |
| Electrode formation | Wet coating and drying | Dry film formation |
| Calendering | Common | Common |
| Process configuration | Multiple slurry and drying stages | Different, potentially more compact sequence |
Key Process Parameters
Powder Particle Characteristics
Particle size and shape influence mixing, packing, electrode density, and conductivity.
Binder Content
Binder concentration affects mechanical strength and the ability of the electrode layer to remain intact.
Mixing Energy
Mechanical energy influences the distribution of materials and binder structure.
Electrode Thickness
Thickness affects active-material loading and transport properties.
Porosity
Porosity influences ion movement and electrode performance.
Calendering Pressure
Excessive compression can reduce porosity, while insufficient compression may leave the electrode structure too loose.
Lamination Temperature
Temperature can influence adhesion between the electrode layer and current collector.
Dry Electrode Processing for Cathodes
Cathode dry processing can use active materials such as lithium nickel manganese cobalt oxide, lithium iron phosphate, or other cathode chemistries.
The active material is combined with conductive additives and a suitable binder.
The dry mixture is mechanically processed to form an electrode layer before lamination and calendering.
Cathode formulations can be sensitive to moisture and mechanical processing conditions, so environmental control may be important.
Dry Electrode Processing for Anodes
Anode dry processing can use graphite, silicon-containing materials, or other anode active materials.
The selected material affects mixing behavior, binder requirements, electrode structure, and calendering conditions.
Silicon-containing anodes can introduce additional considerations because some silicon materials undergo substantial volume changes during battery cycling.
Automation and Process Monitoring
Dry electrode production can incorporate automated control systems throughout the manufacturing line.
Sensors can monitor:
- Powder feed rate
- Mixer speed
- Temperature
- Electrode thickness
- Web tension
- Roll pressure
- Line speed
- Electrode width
- Surface defects
- Environmental conditions
Inline measurement can help identify changes in electrode structure during production.
Data from different stages can also be correlated to investigate variations in the finished electrode.
Quality Control
Quality control is important because electrode structure directly affects subsequent cell manufacturing.
Common measurements include:
- Thickness
- Areal density
- Porosity
- Adhesion
- Electrical resistance
- Surface uniformity
- Active-material distribution
- Moisture content
- Edge condition
Microscopy and other analytical techniques can be used to examine binder distribution, particle arrangement, pores, and other structural features.
Challenges in Dry Electrode Processing
Powder Handling
Dry powders can behave differently from liquids and may be difficult to feed consistently.
Particle segregation can also occur if material characteristics and handling conditions are not controlled.
Binder Distribution
Uniform binder distribution is important for mechanical integrity.
Insufficient or excessive mechanical processing can affect the resulting binder network.
Electrode Uniformity
Maintaining consistent thickness, density, porosity, and composition across a wide electrode web can be challenging.
Dust Management
Dry powder processing can generate airborne particles.
Appropriate containment, extraction, filtration, and housekeeping procedures may therefore be required.
Scale-Up
A process that works at laboratory scale may require significant adjustment for continuous industrial production.
Mixing, film formation, web handling, heat transfer, and quality monitoring can all change with production scale.
Applications of Battery Dry Electrode Processing
Lithium-Ion Batteries
Dry processing is being developed for lithium-ion battery electrode manufacturing across different cathode and anode chemistries.
Electric Vehicle Batteries
The technology can be considered for high-volume battery production where electrode manufacturing efficiency and process integration are important.
Energy Storage Systems
Stationary battery systems can also use lithium-ion cells manufactured using dry-electrode approaches when the selected cell technology supports the process.
Advanced Battery Research
Dry processing is also used in research and development for new electrode materials and cell architectures.
Maintenance and Safety Considerations
Dry electrode equipment requires regular inspection of mixers, rollers, feeders, laminators, calendering systems, slitting equipment, sensors, and dust-collection systems.
Powder-handling equipment should be checked for buildup, leakage, blockages, and wear.
Because battery electrode powders can present inhalation, contamination, or combustible-dust hazards depending on their composition and particle characteristics, facilities should use appropriate ventilation, containment, filtration, grounding, and material-handling controls.
Equipment operating at elevated temperatures or under mechanical pressure also requires appropriate guarding and isolation procedures.
Frequently Asked Questions
What is battery dry electrode processing?
Battery dry electrode processing is a method of producing electrode layers from dry active materials, conductive additives, and binders without using the conventional solvent-based slurry coating process.
How is dry electrode processing different from wet coating?
Wet coating generally creates a liquid slurry that is coated onto a current collector and dried to remove solvent. Dry processing forms the electrode from solid materials without the same solvent-based coating and drying sequence.
What equipment is used for dry electrode manufacturing?
Equipment can include dry powder mixers, fiberization or shear-processing systems, film-forming equipment, laminators, calendering machines, slitters, and inline inspection systems.
Why is calendering used in dry electrode processing?
Calendering compresses the electrode layer to control thickness, density, porosity, and surface characteristics. These properties influence subsequent battery cell manufacturing.
What are the challenges of dry electrode processing?
Important challenges include consistent powder feeding, material mixing, binder distribution, electrode uniformity, dust control, scale-up, and maintaining controlled electrode properties across the production web.
Conclusion
Battery dry electrode processing is an alternative electrode manufacturing approach that uses solid materials rather than the conventional solvent-based slurry route. The process can involve dry mixing, binder fiberization, electrode film formation, current-collector lamination, calendering, slitting, and inspection.
The equipment used in the process includes dry mixers, forming systems, laminators, calendering machines, slitters, and automated measurement systems. Process parameters such as powder characteristics, binder content, mixing energy, thickness, porosity, pressure, and temperature influence the resulting electrode structure.
Dry processing is being developed for lithium-ion batteries and other advanced battery applications. As the technology is scaled, consistent powder handling, electrode uniformity, environmental control, process monitoring, and safety management remain important considerations.
