Biomass pellet mills are machines designed to compress prepared organic materials into small, dense pellets.
Materials such as wood residues, sawdust, agricultural waste, and other biomass feedstocks can be processed into a more uniform form for storage, handling, and energy applications.
The pelletizing process involves several stages, including raw material preparation, size reduction, moisture adjustment, feeding, compression, cooling, and screening. The configuration of a biomass pellet mill depends on the feedstock, required pellet diameter, production capacity, and operating conditions.
Why Biomass Pellet Mills Matter
Raw biomass materials can vary considerably in size, moisture content, density, and physical structure. Pelletizing transforms these materials into a more consistent shape and density.
Uniform pellets can be easier to handle and transport than loose biomass. The controlled dimensions also make pellets suitable for automated feeding systems and various thermal energy applications.
Important factors in biomass pellet production include:
- Raw material composition
- Particle size
- Moisture content
- Material density
- Compression pressure
- Die configuration
- Pellet diameter
- Cooling conditions
- Production throughput
How Biomass Pellet Mills Work
A typical biomass pelletizing process includes multiple stages before and after the pellet mill itself.
1. Raw Material Preparation
Biomass feedstock first needs to be prepared for pellet production. Common materials include sawdust, wood chips, agricultural residues, straw, husks, and other plant-based materials.
Foreign materials such as stones, metal, and other unwanted particles should be removed before further processing.
2. Size Reduction
Larger biomass pieces are reduced in size using equipment such as hammer mills or other grinding systems.
A relatively consistent particle size helps the material move through the pellet mill more evenly. The appropriate size depends on the material and the design of the overall production system.
3. Moisture Adjustment
Moisture has an important effect on pellet formation. Material that is excessively dry may not bind effectively, while excessive moisture can make compression and subsequent handling more difficult.
Drying systems may be used when feedstock moisture needs to be reduced. The target moisture range depends on the biomass type and pelletizing equipment.
4. Material Feeding
Prepared biomass enters the pellet mill through a controlled feeding system. A consistent feed rate helps maintain stable material flow into the compression chamber.
Feeders can be configured according to material characteristics, production requirements, and mill design.
5. Compression
Inside the pellet mill, rollers press the prepared biomass through openings in a rotating or stationary die, depending on the machine configuration.
Pressure and friction generate heat that helps soften natural binding components within some biomass materials. The compressed material emerges from the die openings in cylindrical strands.
6. Pellet Formation
As compressed biomass exits the die, a cutting mechanism separates the material into individual pellets.
Pellet diameter is primarily associated with the die-hole dimensions, while pellet length can be influenced by cutting conditions and equipment configuration.
7. Cooling
Freshly produced pellets can retain heat and moisture. A cooling stage reduces their temperature and helps stabilize their physical structure.
Industrial production systems may use dedicated pellet coolers that control airflow around the newly formed pellets.
8. Screening
After cooling, pellets may pass through a screening system. Screening can separate fines and irregular particles from pellets that meet the required size range.
Separated fines may be returned to the production process depending on the system design and material characteristics.
Main Types of Biomass Pellet Mills
Biomass pellet mills can be categorized according to their mechanical configuration and intended operating conditions.

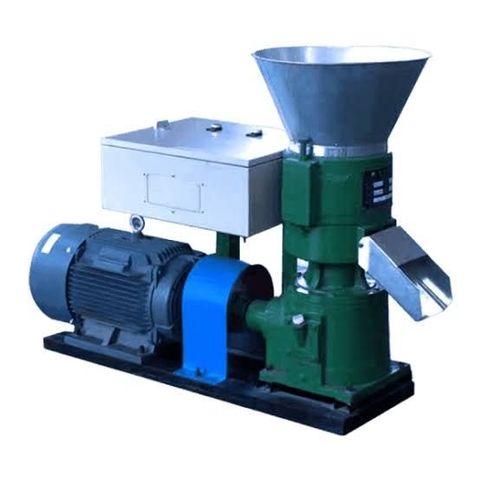

Flat Die Pellet Mills
Flat die mills use a flat die through which rollers compress the biomass. They generally have a relatively straightforward mechanical arrangement and can be used for various small-scale and specialized pelletizing applications.
Ring Die Pellet Mills
Ring die mills use a circular die and rollers to compress biomass continuously. They are commonly associated with larger production systems where continuous pellet formation is required.
Vertical Pellet Mills
Some pellet mills use a vertical arrangement in which material moves through a vertically oriented compression system. The configuration can influence material feeding, roller movement, and equipment layout.
Horizontal Pellet Mills
Horizontal configurations position the compression components differently within the machine. Their design varies among manufacturers and applications.
Comparison of Biomass Pellet Mill Types
| Pellet Mill Type | Die Design | Typical Application | Key Consideration |
|---|---|---|---|
| Flat Die | Flat | Smaller-scale production | Simple mechanical arrangement |
| Ring Die | Circular ring | Larger production systems | Continuous pellet formation |
| Vertical | Vertical configuration | Various biomass applications | Equipment layout |
| Horizontal | Horizontal configuration | Industrial processing | Feed and compression arrangement |
Main Components of Biomass Pellet Mills
A biomass pellet mill contains several mechanical components that work together.
Feed Hopper
The hopper receives prepared biomass and directs it toward the compression section.
Feeder
The feeder controls the movement of material into the pelletizing chamber. Stable feeding supports consistent production.
Die
The die contains the openings through which compressed biomass passes. Hole diameter and die configuration influence pellet dimensions and production characteristics.
Rollers
Rollers apply mechanical pressure to the biomass and force it through the die openings.
Main Drive System
The motor and transmission system provide the rotational force required for compression and pellet formation.
Cutting Mechanism
A cutter separates extruded biomass into pellets of the required approximate length.
Cooling System
The cooling unit reduces the temperature of freshly produced pellets and supports stabilization before storage.
Screening Equipment
Screens separate fines and irregular particles from finished pellets.
Factors Affecting Pellet Quality
Several variables influence the characteristics of biomass pellets.
Feedstock Type
Wood residues, straw, agricultural husks, and other biomass materials have different fiber structures and natural binding characteristics. These differences affect compression behavior.
Particle Size
Particles that are too large may not compress uniformly, while excessively fine material can change airflow and feeding characteristics.
Moisture Content
Moisture affects compression, binding, pellet durability, and cooling requirements. Maintaining appropriate moisture conditions is therefore an important part of pellet production.
Die Configuration
Die-hole diameter, compression ratio, and material selection influence pellet dimensions and the force required for compression.
Roller Adjustment
The position and condition of the rollers affect the interaction between the biomass and die. Incorrect adjustment can contribute to uneven production or increased mechanical wear.
Production Rate
Increasing feed rate changes the amount of material passing through the compression zone. Operating conditions need to remain within the machine's intended range.
Biomass Materials Used in Pellet Mills
Biomass pellet mills can process various organic feedstocks when their physical characteristics are compatible with the equipment.
Common examples include:
- Sawdust
- Wood shavings
- Wood chips
- Straw
- Rice husks
- Wheat residues
- Corn residues
- Agricultural fibers
- Forestry residues
- Certain processed organic wastes
Feedstock preparation requirements vary according to material composition, particle size, moisture, and density.
Automation and Monitoring
Modern biomass pellet production systems can incorporate sensors and control equipment to monitor important operating parameters.
Common monitoring points include:
- Motor load
- Feed rate
- Die temperature
- Material moisture
- Pellet temperature
- Cooling airflow
- Production throughput
- Vibration
- Bearing temperature
Automated monitoring can help operators identify changes in machine conditions and maintain more consistent operating parameters.
Applications of Biomass Pellet Mills
Biomass pellet mills are used in several areas of material processing and renewable energy production.
Wood Residue Processing
Sawdust, wood shavings, and other processed wood residues can be converted into compact pellets.
Agricultural Residue Processing
Certain agricultural residues can be pelletized after appropriate preparation, drying, and size reduction.
Biomass Fuel Production
Pellets can be used as a standardized form of solid biomass fuel in compatible heating and energy systems.
Industrial Biomass Processing
Larger pellet production facilities can integrate milling, drying, pelletizing, cooling, screening, and storage into a continuous processing line.
Maintenance Requirements
Regular inspection is important for maintaining stable pellet mill operation. Key components include dies, rollers, bearings, shafts, drive systems, feeders, and lubrication points.
Operators should inspect die openings for blockage and monitor rollers for wear. Changes in vibration, motor load, noise, pellet shape, or production rate can indicate a need for inspection.
Cleaning the feed system and surrounding equipment also helps reduce material buildup and contamination.
Safety Considerations
Biomass pellet mills contain rotating mechanical components and operate under significant compression forces. Appropriate machine guarding, emergency stopping systems, and maintenance isolation procedures are important.
Fine biomass particles can also create combustible dust hazards under certain conditions. Facilities should control dust accumulation, maintain suitable ventilation, and follow applicable fire and explosion-prevention procedures.
Hot surfaces and freshly produced pellets can also present burn hazards. Operators should use appropriate protective equipment and follow equipment-specific operating procedures.
FAQs
What is a biomass pellet mill?
A biomass pellet mill is a machine that compresses prepared organic materials into compact cylindrical pellets. It is commonly used with wood residues and agricultural biomass.
What materials can biomass pellet mills process?
Depending on the equipment, biomass pellet mills can process materials such as sawdust, wood shavings, agricultural residues, straw, rice husks, and other plant-based materials.
Why is moisture important in biomass pellet production?
Moisture affects material compression, binding, pellet durability, and cooling. The appropriate moisture condition varies according to the feedstock and pellet mill configuration.
What determines biomass pellet size?
Pellet diameter is primarily determined by die-hole dimensions. Pellet length is influenced by the cutting mechanism and operating conditions.
What is the difference between flat die and ring die pellet mills?
Flat die pellet mills use a flat compression surface, while ring die mills use a circular die. Their mechanical configurations and typical production capacities differ.
Conclusion
Biomass pellet mills convert prepared organic materials into compact, uniform pellets through controlled compression. The complete process may include material preparation, grinding, moisture adjustment, feeding, compression, cutting, cooling, and screening.
The performance of a pellet mill depends on feedstock characteristics, particle size, moisture, die configuration, roller condition, and operating parameters. Proper preparation, monitoring, maintenance, and safety practices are important for maintaining consistent biomass pellet production.
