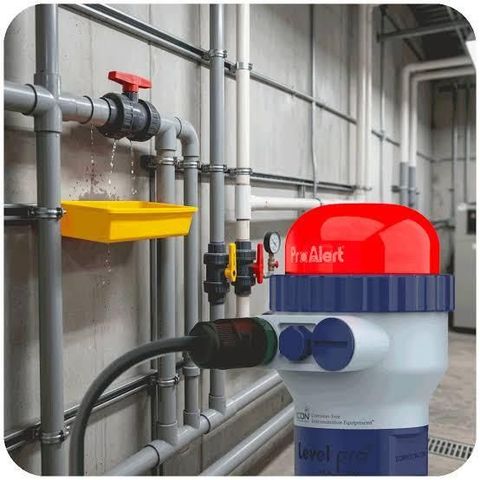

Pipeline leak detection systems are technologies used to identify and monitor leaks in pipelines that transport liquids or gases.
They combine sensors, pressure measurements, flow monitoring, software, communication networks, and alarms to detect abnormal operating conditions.
Pipelines can transport water, petroleum products, natural gas, chemicals, and other fluids over short or long distances. A leak can affect production, equipment, the surrounding environment, and pipeline integrity, making continuous monitoring an important part of pipeline operation.
Different detection technologies are designed for different pipeline configurations and operating conditions. The appropriate system depends on the transported material, pipeline length, pressure, flow characteristics, location, and required detection sensitivity.
What Are Pipeline Leak Detection Systems?
Pipeline leak detection systems are monitoring systems designed to identify conditions that may indicate a loss of containment.
A basic system collects operating data from the pipeline and compares actual conditions with expected operating behavior. When measurements indicate an abnormal condition, the system can generate an alarm for further investigation.
A complete pipeline monitoring arrangement can include:
- Pressure sensors
- Flow meters
- Temperature sensors
- Acoustic sensors
- Fiber-optic cables
- Control systems
- Data acquisition equipment
- Communication networks
- Leak detection software
- Alarm systems
- Remote monitoring interfaces
Some systems focus on detecting changes within the pipeline, while others monitor the area surrounding the pipeline for physical or environmental signs of leakage.
How Pipeline Leak Detection Systems Work
Although technologies differ, most systems follow a similar monitoring sequence.
1. Data Collection
Sensors positioned along or around the pipeline collect measurements.
Depending on the system, these measurements can include pressure, flow rate, temperature, vibration, acoustic signals, or changes in the surrounding environment.
2. Data Transmission
Sensor information is transmitted to a central monitoring platform.
Industrial communication networks, remote terminal units, fiber-optic systems, wireless technologies, or other communication infrastructure can be used depending on the pipeline configuration.
3. Data Analysis
The monitoring software evaluates incoming measurements against predefined operating conditions.
Algorithms can compare inlet and outlet flow, identify pressure changes, analyze acoustic signals, or detect deviations from established pipeline behavior.
4. Leak Identification
If the system detects a pattern consistent with a possible leak, it generates an alert.
More advanced systems can estimate the approximate location of the suspected leak using measurements from multiple monitoring points.
5. Operator Response
An alarm is presented to pipeline operators through a control room or remote monitoring interface.
Operators can investigate the event using additional process information, field inspection, cameras, or other diagnostic equipment.
6. Corrective Action
Depending on the confirmed condition and operating procedures, operators may isolate a pipeline section, reduce flow, shut down equipment, or initiate inspection activities.
Main Types of Pipeline Leak Detection Systems
Pressure-Based Leak Detection
Pressure sensors monitor changes in pipeline pressure.
A sudden or unusual pressure reduction can indicate a possible leak, although pressure changes can also result from normal operational events such as valve movements, pump changes, or changes in demand.
Flow-Based Detection
Flow meters measure the quantity of fluid entering and leaving a pipeline section.
A persistent difference between inlet and outlet measurements can indicate potential fluid loss.
Flow-based systems require accurate measurements and consideration of factors such as fluid accumulation, temperature, pressure, and measurement uncertainty.
Mass Balance Systems
Mass balance methods compare the mass entering a pipeline segment with the mass leaving it.
The system accounts for factors such as pressure, temperature, fluid density, and inventory changes to determine whether an unexplained imbalance exists.
Acoustic Leak Detection
Acoustic systems detect sound or pressure waves associated with fluid escaping through a leak.
Sensors can identify changes in the acoustic signature and software can analyze these signals to distinguish potential leaks from normal pipeline noise.
Negative Pressure Wave Detection
When a pressurized pipeline develops a sudden leak, the pressure disturbance can propagate through the fluid in both directions.
Sensors positioned along the pipeline can detect these pressure waves and use their arrival times to estimate the location of the event.
Fiber-Optic Leak Detection
Fiber-optic systems use optical fibers installed along or near the pipeline.
Changes in temperature, strain, vibration, or acoustic conditions can be detected along the fiber. The system can analyze these changes to identify conditions associated with leakage or pipeline disturbances.
External Sensor Systems
External sensors monitor conditions around the pipeline.
Depending on the application, these systems may detect hydrocarbons, changes in soil conditions, temperature variations, or other physical indicators.
Comparison of Pipeline Leak Detection Methods
| Detection Method | Main Measurement | Typical Strength |
|---|---|---|
| Pressure monitoring | Pipeline pressure | Detects pressure abnormalities |
| Flow monitoring | Fluid flow | Identifies flow imbalance |
| Mass balance | Mass flow and inventory | Monitors overall pipeline balance |
| Acoustic detection | Sound or pressure waves | Detects leak-related signals |
| Negative pressure wave | Pressure disturbance | Can help locate sudden events |
| Fiber optic | Vibration, temperature, strain | Provides distributed monitoring |
| External sensors | Surrounding conditions | Monitors external leak indicators |
Main Components of a Pipeline Leak Detection System
Sensors
Sensors provide the raw measurements used by the detection system.
The sensor type depends on the detection method and can include pressure transmitters, flow meters, acoustic sensors, temperature sensors, and fiber-optic equipment.
Flow Meters
Flow meters measure the movement of liquid or gas through a pipeline.
Measurement accuracy is important because small discrepancies can affect the interpretation of pipeline balance.
Pressure Transmitters
Pressure transmitters continuously measure pipeline pressure at selected locations.
Multiple pressure measurements can help identify abnormal pressure behavior and support leak localization.
Data Acquisition Units
Data acquisition equipment collects signals from field instruments and transfers them to monitoring software.
These units can be integrated with supervisory control and data acquisition systems.
Communication Network
Communication infrastructure transfers data between remote pipeline locations and monitoring centers.
The network may use fiber optics, radio, cellular communication, satellite links, or other industrial communication technologies.
Leak Detection Software
Software processes sensor information and applies detection algorithms.
It can display pipeline conditions, generate alarms, record historical data, and support event analysis.
Alarm and Control Interface
Operators receive alerts through control room interfaces, dashboards, or other monitoring systems.
Alarm systems can provide information about the affected pipeline section, detected condition, measurement values, and event timing.
Real-Time Pipeline Monitoring
Real-time monitoring allows operators to observe pipeline conditions continuously or at defined intervals.
A monitoring platform can display:
- Pressure
- Flow rate
- Temperature
- Pump status
- Valve position
- Pipeline segment status
- Alarm conditions
- Historical trends
- Suspected leak locations
Continuous data collection can help operators distinguish between normal operating changes and abnormal events.
Factors Affecting Leak Detection Performance
Pipeline Length
Long pipelines can require multiple measurement points because operating conditions can vary significantly along their length.
Fluid Type
Liquid and gas pipelines behave differently when a leak occurs. Fluid compressibility, viscosity, pressure, and temperature can influence detection characteristics.
Operating Pressure
Pipeline pressure affects the behavior of fluid escaping through a leak and can influence pressure-based detection methods.
Flow Conditions
Changing flow rates can create transient conditions that resemble leakage.
Detection algorithms therefore need to account for normal changes caused by pumps, valves, demand, and other operations.
Sensor Placement
The location and spacing of sensors affect the system's ability to identify and locate abnormal conditions.
Measurement Accuracy
Sensor accuracy, calibration, communication delays, and data quality all influence detection performance.
Pipeline Leak Localization
Detecting a possible leak and determining its location are separate functions.
Some systems estimate leak location using pressure wave arrival times, flow measurements, sensor data, or mathematical models.
For example, negative pressure wave systems can compare the timing of a pressure disturbance at multiple sensors. The difference in arrival times can be used to estimate where the disturbance originated.
Other technologies can provide distributed measurements along a pipeline, allowing the system to identify a more specific section for investigation.
Role of Automation and Data Analytics
Modern pipeline monitoring systems can process large volumes of sensor data automatically.
Software can establish operating baselines and identify deviations from expected conditions. Advanced analytical methods can also evaluate multiple measurements simultaneously rather than relying on a single sensor value.
Automated event classification can help distinguish possible leaks from events such as:
- Pump starts and stops
- Valve operations
- Flow changes
- Pressure fluctuations
- Maintenance activities
- Communication interruptions
- Normal process transients
The effectiveness of these functions depends on data quality, system configuration, and the operating characteristics of the pipeline.
Applications of Pipeline Leak Detection Systems
Oil Pipelines
Leak detection systems can monitor crude oil and refined-product pipelines for abnormal pressure, flow, acoustic, or other conditions.
Natural Gas Pipelines
Gas pipeline monitoring can use pressure, flow, acoustic, fiber-optic, and computational methods to identify potential leakage.
Water Pipelines
Water distribution and transmission pipelines can use pressure sensors, acoustic monitoring, flow measurement, and other techniques to identify possible water losses.
Chemical Pipelines
Industrial chemical pipelines can require specialized monitoring based on the properties and hazards of the transported material.
Offshore Pipelines
Offshore pipelines can use subsea sensors, fiber-optic systems, pressure monitoring, and other technologies suited to marine environments.
Maintenance and Testing
Pipeline leak detection equipment requires regular inspection and testing to maintain dependable operation.
Typical activities can include sensor calibration, communication checks, alarm testing, software verification, battery inspection, and examination of field equipment.
Flow meters and pressure transmitters should be maintained according to their specified procedures. Fiber-optic systems and acoustic sensors may also require specialized testing.
Detection systems should be evaluated against simulated or controlled events where appropriate. Testing can help determine whether alarms, communication pathways, data processing, and operator interfaces function as intended.
Safety Considerations
Pipeline leak detection systems are part of a broader pipeline integrity and operational safety framework.
Detection equipment itself does not eliminate the need for inspection, maintenance, emergency procedures, or physical pipeline protection.
Where pipelines transport flammable, toxic, corrosive, or otherwise hazardous materials, detection and response procedures should be designed around the characteristics of the transported substance.
Electrical and electronic equipment installed in hazardous areas should comply with the applicable equipment classification and safety requirements.
Frequently Asked Questions
What is the purpose of a pipeline leak detection system?
Its purpose is to identify conditions that may indicate loss of containment in a pipeline. The system can monitor pressure, flow, acoustic signals, temperature, or other measurements and generate alarms when abnormal conditions are detected.
How do pipeline leak detection systems detect leaks?
Different systems use different techniques. Common approaches include pressure monitoring, flow comparison, mass balance, acoustic detection, negative pressure wave analysis, fiber-optic monitoring, and external sensing.
Can a pipeline leak detection system locate a leak?
Some systems can estimate the location of a suspected leak. Localization can use pressure wave timing, flow measurements, sensor data, mathematical models, or distributed fiber-optic measurements.
What factors affect pipeline leak detection?
Pipeline length, fluid type, pressure, flow conditions, sensor placement, measurement accuracy, communication quality, and normal operational changes can all affect detection performance.
Are pipeline leak detection systems used for both liquids and gases?
Yes. Detection technologies are used for both liquid and gas pipelines, although the appropriate detection method depends on fluid properties and pipeline operating conditions.
Conclusion
Pipeline leak detection systems combine field sensors, measurement equipment, communication networks, software, and operator interfaces to identify conditions that may indicate pipeline leakage. Depending on the application, systems can monitor pressure, flow, mass balance, acoustic signals, fiber-optic measurements, or external environmental conditions.
No single detection method applies to every pipeline. Pipeline length, fluid characteristics, operating pressure, flow behavior, sensor arrangement, and required detection capabilities all influence system selection.
Modern systems increasingly combine multiple data sources with automated analysis to support real-time pipeline monitoring. Regular sensor calibration, communication testing, alarm verification, and system maintenance are important parts of maintaining the overall monitoring process.
