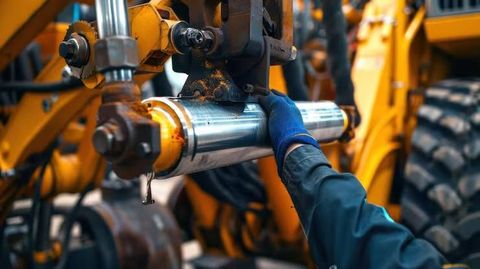

A hydraulic cylinder is a mechanical actuator that converts hydraulic fluid pressure into controlled linear movement. It is widely used in equipment where lifting, pushing, pulling, clamping, tilting, or positioning requires substantial force. Hydraulic cylinders are found in construction machinery, agricultural equipment, manufacturing systems, material-handling equipment, transportation systems, and other industrial applications.
Context
A hydraulic cylinder is a mechanical actuator that converts hydraulic fluid pressure into controlled linear movement. It is widely used in equipment where lifting, pushing, pulling, clamping, tilting, or positioning requires substantial force. Hydraulic cylinders are found in construction machinery, agricultural equipment, manufacturing systems, material-handling equipment, transportation systems, and other industrial applications.
The basic principle is relatively simple. Pressurized hydraulic fluid enters a cylinder chamber and acts against a piston. The resulting force moves the piston and its connected rod in a linear direction. When fluid flow is controlled and redirected, the cylinder can extend or retract according to the requirements of the equipment.
Hydraulic cylinder designs vary according to pressure requirements, available space, movement characteristics, mounting arrangement, and operating environment. Understanding the main parts, functions, designs, and performance factors helps explain how these components operate within larger hydraulic systems.
Importance
Hydraulic cylinders are important because they allow hydraulic systems to produce controlled linear movement from relatively compact mechanical assemblies. A cylinder can transfer hydraulic pressure into mechanical force while operating as part of a larger system that includes pumps, valves, reservoirs, hoses, and control components.
The correct cylinder characteristics can affect equipment movement, stability, operating speed, durability, and maintenance requirements. A mismatch between cylinder specifications and system requirements can result in inefficient movement, excessive wear, leakage, or mechanical stress.
Common applications
Hydraulic cylinders are used in many types of equipment and machinery. Common applications include:
Excavators and other construction machinery
Agricultural tractors and implements
Hydraulic presses
Material-handling equipment
Dump bodies and lifting systems
Industrial production machinery
Forestry equipment
Waste-processing machinery
Mobile hydraulic systems
Automated machinery
Different applications require different combinations of force, stroke length, speed, mounting configuration, and environmental protection.
Main hydraulic cylinder parts
A typical hydraulic cylinder contains several interconnected components. The cylinder barrel provides the main chamber in which the piston moves. The piston separates the internal chambers and transfers hydraulic pressure into mechanical force.
The piston rod extends from the cylinder and connects the internal piston to an external mechanical component. Seals help retain hydraulic fluid and prevent contaminants from entering the assembly. The gland or head supports the rod and contains sealing components.
Other components can include a piston nut, rod bearing, wear rings, ports, retaining components, and mounting attachments. The exact arrangement varies according to cylinder design and application.
Designs
Hydraulic cylinder designs can be categorized according to how they generate movement and how their internal components are arranged.
Single-acting cylinders
A single-acting cylinder uses hydraulic pressure to move the piston primarily in one direction. Return movement is commonly produced by an external force, spring arrangement, gravity, or another mechanical mechanism.
These cylinders can be suitable for applications where powered movement is required in only one direction. Their relatively straightforward arrangement can simplify certain system designs.
Double-acting cylinders
A double-acting cylinder uses hydraulic pressure on both sides of the piston. Fluid can be directed into one chamber for extension and into the other chamber for retraction.
This arrangement provides controlled hydraulic movement in both directions and is common in construction equipment, industrial machinery, agricultural systems, and material-handling applications.
Telescopic cylinders
Telescopic cylinders contain multiple nested stages that extend sequentially. When retracted, the assembly can occupy less space than a conventional cylinder capable of producing a similar extended length.
They are frequently associated with tipping mechanisms, lifting equipment, dump bodies, and applications where a long stroke is required within a limited installation space.
Tie-rod and welded cylinders
Tie-rod cylinders use external rods to hold the cylinder components together. They are commonly found in industrial hydraulic systems and can be convenient for certain maintenance procedures.
Welded cylinders use welded construction for the main barrel and associated components. This design is frequently used in mobile equipment where compact construction and resistance to demanding operating conditions are important considerations.
Functions
The primary function of a hydraulic cylinder is to transform hydraulic energy into linear mechanical movement. However, its role within a machine can include several specific functions.
Force generation
Cylinder force depends largely on hydraulic pressure and the effective piston area. A simplified relationship can be expressed as:
Force = Pressure × Effective Area
During retraction, the area available for hydraulic pressure is reduced because the piston rod occupies part of the piston area. Therefore, extension and retraction forces can differ even when system pressure remains the same.
Linear movement
The piston and rod provide controlled movement along a defined path. Stroke length determines the distance through which the rod can travel.
Position control
When combined with suitable valves and control systems, hydraulic cylinders can help position machine components. More advanced systems may use sensors and electronic controls to monitor cylinder position and coordinate movement.
Load movement
Cylinders can generate the force needed to lift, push, pull, tilt, clamp, or hold mechanical components. The actual load capacity depends on cylinder dimensions, hydraulic pressure, mounting arrangement, mechanical geometry, and other system factors.
Performance Factors
Several factors influence hydraulic cylinder performance and operating life. These factors should be considered as part of the complete hydraulic system rather than evaluating the cylinder in isolation.
Pressure rating
The cylinder must be suitable for the pressure range of the hydraulic system. Operating beyond the specified pressure range can place excessive stress on internal and external components.
Bore diameter
Bore diameter affects piston area and therefore influences the force generated at a given hydraulic pressure. Larger bore dimensions can provide greater theoretical force, although the complete system must also accommodate the resulting physical dimensions and flow requirements.
Rod diameter
Rod diameter influences strength, resistance to bending, and the cylinder's ability to withstand mechanical loading. The appropriate size depends on force, stroke, mounting arrangement, and external loads.
Stroke length
Stroke refers to the distance the piston rod travels between its retracted and extended positions. Selecting an appropriate stroke helps ensure that the cylinder can complete the required machine movement without unnecessary travel.
Operating speed
Cylinder speed depends partly on hydraulic flow rate and effective piston area. Excessive speed can increase mechanical shock, heat generation, seal wear, and control difficulties.
Seals and leakage control
Seals retain hydraulic fluid and help prevent contamination. Their material and design should correspond with the hydraulic fluid, temperature range, pressure conditions, and operating environment.
Mounting arrangement
Mounting points determine how forces are transferred between the cylinder and the machine structure. Common arrangements include clevis, flange, trunnion, foot, and threaded mounting configurations.
Temperature and environment
Temperature, dust, moisture, chemicals, vibration, and outdoor exposure can influence cylinder performance. Protective coatings, suitable sealing arrangements, and appropriate materials may be considered for demanding environments.
Hydraulic Cylinder Specifications
| Specification | What it describes | Why it matters |
|---|---|---|
| Bore diameter | Internal piston diameter | Influences force capacity |
| Rod diameter | Diameter of piston rod | Influences strength and load resistance |
| Stroke | Rod travel distance | Determines movement range |
| Pressure rating | Permitted hydraulic pressure | Relates to operating limits |
| Retracted length | Overall length when closed | Affects installation space |
| Extended length | Overall length at full stroke | Determines required clearance |
| Mounting type | Cylinder attachment arrangement | Affects installation and force transfer |
| Port size | Hydraulic connection dimensions | Relates to fluid flow and connections |
Maintenance Considerations
Routine inspection can help identify developing problems before they affect the wider hydraulic system. Areas commonly checked include rod surfaces, seals, mounting points, hydraulic connections, and visible leakage.
A piston rod with scratches, corrosion, or other surface damage can affect sealing performance. Loose mounting components can also create abnormal loads and uneven movement.
Hydraulic fluid condition is another important consideration because contaminated or unsuitable fluid can affect valves, pumps, seals, and cylinder surfaces. Maintenance intervals should follow the equipment manufacturer's specifications and the operating environment.
Any maintenance involving pressurized hydraulic equipment requires appropriate safety procedures. Hydraulic systems can retain stored energy even after equipment has stopped operating, so pressure should be properly released according to the applicable equipment procedures before inspection or maintenance.
FAQs
What is a hydraulic cylinder?
A hydraulic cylinder is a mechanical actuator that converts pressurized hydraulic fluid into linear movement. It contains components such as a barrel, piston, piston rod, seals, and hydraulic ports.
What are the main hydraulic cylinder designs?
Common designs include single-acting, double-acting, telescopic, tie-rod, and welded cylinders. The appropriate design depends on movement requirements, installation space, load conditions, and system configuration.
How does a hydraulic cylinder generate force?
Hydraulic pressure acts on the effective area of the piston. A simplified calculation is force equal to pressure multiplied by effective piston area. Actual machine performance also depends on mechanical geometry and system conditions.
What factors affect hydraulic cylinder performance?
Important factors include pressure, bore diameter, rod diameter, stroke length, hydraulic flow, operating temperature, sealing condition, mounting arrangement, alignment, and external loading.
Where are hydraulic cylinders used?
Hydraulic cylinders are commonly used in construction machinery, agricultural equipment, industrial presses, material-handling systems, transportation equipment, forestry machinery, and various automated or mobile hydraulic systems.
Conclusion
Hydraulic cylinders convert hydraulic pressure into controlled linear mechanical movement and are used across many types of machinery. Their designs, dimensions, seals, mounting arrangements, pressure ratings, and stroke lengths vary according to application requirements. Performance depends on both cylinder specifications and the wider hydraulic system, including fluid flow, pressure, control components, and mechanical loading. Understanding these factors provides a useful foundation for interpreting hydraulic cylinder designs and their applications.
