A hydraulic folding machine is industrial equipment used to bend sheet metal and other suitable metal workpieces into controlled angles and shapes. It combines mechanical structures with a hydraulic system that generates and controls the force needed for bending.
Context
The development of hydraulic folding equipment is connected with the broader growth of industrial metal forming. Earlier forming processes relied heavily on manual force, mechanical mechanisms, or simpler bending arrangements. As manufacturing requirements became more demanding, hydraulic systems provided a way to control substantial forming forces through pressurized fluid.

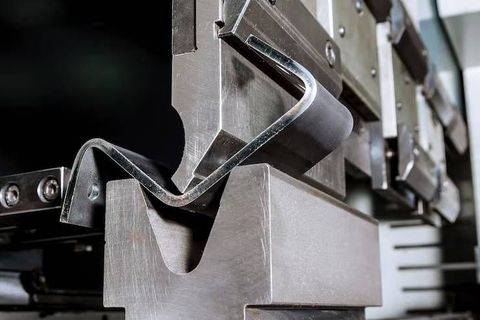

A typical hydraulic folding machine contains a frame, hydraulic cylinders, a power unit, control system, bending tools, and a work area where sheet metal is positioned. Depending on the machine design, the workpiece may be bent between an upper punch and lower die or through another forming arrangement.
The basic operating principle is relatively straightforward. Hydraulic fluid is pressurized by a pump and directed through valves toward one or more hydraulic cylinders. The cylinders convert hydraulic pressure into linear movement, which moves the machine's bending mechanism and applies force to the workpiece.
Basic hydraulic principle
Hydraulic systems rely on the transmission of pressure through a confined fluid. A pump moves hydraulic fluid through the circuit, while valves control its direction, pressure, and flow.
The main sequence can be summarized as:
Hydraulic fluid is held in a reservoir.
A pump draws fluid from the reservoir.
Pressurized fluid travels through hydraulic lines.
Control valves regulate fluid movement.
Hydraulic cylinders convert fluid pressure into mechanical movement.
The bending mechanism applies force to the workpiece.
Fluid returns through the hydraulic circuit as the cycle changes.
The amount of bending force required depends on factors such as material type, thickness, bend length, tooling, and the desired bend geometry.
Importance
Hydraulic folding machines are important in metal fabrication because sheet metal frequently needs to be shaped into precise angles rather than simply cut into flat sections. Controlled bending is used to create panels, brackets, enclosures, frames, channels, structural components, and many other fabricated parts.
The hydraulic system is particularly relevant when substantial and controlled force is required. Hydraulic cylinders can generate significant linear force while allowing the machine to control movement through hydraulic pressure, valves, and electronic or mechanical controls.
Factors that influence bending
The result of a folding operation depends on several variables rather than hydraulic pressure alone. Important factors include:
Material type and mechanical properties
Sheet thickness
Sheet width and bend length
Tool geometry
Die opening
Bend angle
Machine capacity
Material grain direction
Positioning and alignment
Hydraulic pressure and movement control
The relationship between these factors means that the same machine settings cannot necessarily be applied to every workpiece.
Main machine components
A hydraulic folding machine normally combines several mechanical, hydraulic, and control components.
| Component | Primary function |
|---|---|
| Machine frame | Supports the major mechanical assemblies |
| Hydraulic cylinder | Converts fluid pressure into linear movement |
| Hydraulic pump | Circulates and pressurizes hydraulic fluid |
| Reservoir | Stores hydraulic fluid |
| Valves | Control hydraulic pressure and fluid direction |
| Hydraulic lines | Transport fluid between system components |
| Punch and die | Apply the forming force to the workpiece |
| Control system | Regulates machine movements and operating parameters |
| Back gauge | Helps position the workpiece for repeated bends |
| Safety equipment | Helps reduce exposure to mechanical and operational hazards |
The exact arrangement varies between machine designs. Some systems use multiple cylinders to distribute force across the working area, while others use different mechanical arrangements to transmit movement.
Hydraulic cylinders
Hydraulic cylinders are central to the operation of a hydraulic folding machine. Pressurized fluid enters a cylinder and acts against a piston, producing linear movement.
The force generated by a cylinder is related to hydraulic pressure and the effective piston area. In simplified terms, increasing either pressure or effective piston area increases the available force, although actual machine performance also depends on mechanical design, efficiency, and operating conditions.
Cylinder seals and other internal components are important because hydraulic systems depend on maintaining controlled fluid pressure. Leakage, contamination, or damaged components can affect machine operation.
Hydraulic pump and reservoir
The hydraulic pump moves fluid from the reservoir into the pressurized circuit. Different pump designs can be used depending on the machine architecture and required flow characteristics.
The reservoir stores hydraulic fluid and can also support functions such as heat dissipation and separation of certain contaminants or air from the fluid. Proper fluid condition is important because contamination can affect pumps, valves, cylinders, and seals.
Recent Updates
Recent developments in hydraulic folding equipment have focused on greater control, automation, energy management, and integration with digital manufacturing systems. Modern machines increasingly combine hydraulic mechanisms with electronic controls, sensors, programmable settings, and automated positioning systems.
Digital control and automation
Computerized controls can coordinate machine movement, back-gauge positioning, bending sequences, and other operating parameters. This reduces the amount of manual adjustment required between programmed operations.
Some modern systems can store bending programs and retrieve previously defined sequences. This can support repeat production where multiple workpieces require similar forming operations.
Sensors can also provide information about position, pressure, or machine status. When integrated with the control system, this information can help coordinate machine movements and detect certain operating conditions.
Hydraulic efficiency
Another area of development is hydraulic efficiency. Variable-displacement pumps, proportional valves, improved motor control, and more responsive hydraulic circuits can help match hydraulic output more closely with the machine's operating requirements.
Hybrid architectures are also being explored in metal-forming equipment, combining hydraulic and electrically driven mechanisms. The specific design depends on the machine's force requirements, speed, control architecture, and intended application.
Integration with digital manufacturing
Hydraulic folding machines can also form part of digitally connected manufacturing environments. Production data, programmed bending sequences, machine status information, and inspection results may be exchanged between equipment and manufacturing software.
Such integration does not remove the need for appropriate machine setup or operator oversight. It primarily changes how information and machine parameters are organized and managed.
Tools and Resources
Several technical resources can help readers understand hydraulic folding machines and their operation.
Bending-force calculations
Bending-force calculators are commonly used to estimate the force required for a particular forming operation. These calculations generally consider material properties, thickness, bend length, die geometry, and the selected bending method.
Calculated values should be treated as engineering estimates because actual requirements depend on the machine, tooling, material condition, and forming method.
Hydraulic system diagrams
Hydraulic circuit diagrams are useful for understanding how pumps, valves, cylinders, reservoirs, filters, and pressure-control components interact. Standard hydraulic symbols allow different components to be represented consistently on technical drawings.
Machine manuals and technical documentation
Manufacturer documentation normally provides information about machine specifications, hydraulic circuits, operating procedures, lubrication points, tooling arrangements, and maintenance intervals. The specific manual applicable to a machine is more relevant than a generic procedure when operating or maintaining equipment.
Tooling references
Punches and dies are available in different geometries for different bending applications. Tool selection influences bend shape, required force, material positioning, and the resulting geometry.
For technical planning, relevant parameters can include:
Sheet thickness
Material grade
Bend length
Internal bend radius
Bend angle
Die opening
Punch geometry
Required forming force
Hydraulic fluid and filtration
Hydraulic systems depend on appropriate fluid cleanliness and filtration. Filters help control particulate contamination, while fluid condition can influence the performance and operating life of hydraulic components.
Maintenance requirements vary according to machine design and hydraulic-system specifications. The applicable technical documentation should determine fluid type, filtration requirements, inspection intervals, and replacement procedures.
FAQs
What is a hydraulic folding machine?
A hydraulic folding machine is equipment used to bend sheet metal through controlled mechanical force generated by hydraulic cylinders. The hydraulic system supplies and regulates the force required for the forming operation.
How does a hydraulic folding machine work?
A pump pressurizes hydraulic fluid and sends it through control valves to hydraulic cylinders. The cylinders create linear movement, which operates the bending mechanism and applies force to the workpiece. The control system regulates movement and, depending on the machine, other operating parameters.
What are the main hydraulic folding machine components?
Common hydraulic folding machine components include the frame, hydraulic cylinders, pump, reservoir, valves, hydraulic lines, control system, tooling, and positioning equipment. The exact configuration varies according to machine design.
What materials can a hydraulic folding machine bend?
Hydraulic folding machines can be designed for various sheet metals, including materials such as carbon steel, stainless steel, and aluminium alloys. The suitable material thickness and forming range depend on the machine's capacity, tooling, and design specifications.
What affects hydraulic folding machine accuracy?
Accuracy can be influenced by material properties, sheet thickness, tooling condition, machine alignment, hydraulic control, positioning accuracy, temperature, and setup. Consistent results therefore depend on the interaction between the hydraulic system, mechanical structure, tooling, material, and control system.
