Hydraulic power units are important parts of many industrial machines, construction equipment, agricultural systems, and material-handling devices. A hydraulic power unit, often called an HPU, generates and controls the hydraulic pressure needed to move mechanical components. It converts energy from an electric motor or an engine into hydraulic energy that can operate cylinders, motors, and other equipment.
Hydraulic systems use pressurized liquid to transmit force from one location to another. This principle allows machines to lift heavy loads, move platforms, clamp materials, and control mechanical movements. A hydraulic power unit brings several essential components together to create a controlled source of hydraulic power.

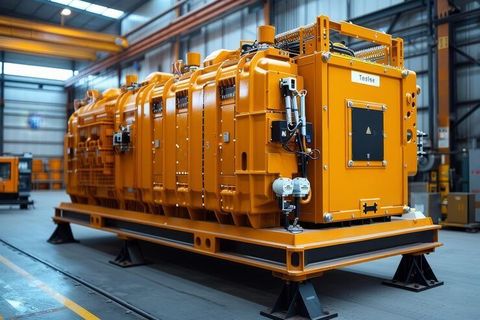

What Is a Hydraulic Power Unit?
A hydraulic power unit is an assembly that supplies pressurized hydraulic fluid to a connected machine. Its main components generally include a reservoir, pump, motor, valves, filters, and connecting pipes or hoses. The exact arrangement depends on the machine's operating requirements and the type of movement it needs to perform.
Unlike a complete hydraulic machine, an HPU primarily generates and manages hydraulic power. The equipment connected to it uses that power to perform a particular task. For example, a hydraulic press uses pressure to compress materials, while a lifting platform uses hydraulic cylinders to raise or lower a load.
How Hydraulic Power Units Work
The operating process begins when an electric motor or engine drives a hydraulic pump. The pump moves fluid from the reservoir into the hydraulic circuit, where valves direct the flow toward the required actuator.
The pressurized fluid enters a hydraulic cylinder or motor, producing linear or rotational movement. After completing its task, the fluid returns through the circuit to the reservoir or follows another designed flow path.
Several factors influence performance, including fluid flow rate, pressure, temperature, pump efficiency, and the load being moved. These factors must work together to support stable and controlled machine operation.
Importance
Hydraulic power units matter because many industrial operations require substantial force, controlled movement, and reliable handling of heavy materials. They support equipment used in factories, warehouses, construction sites, agricultural fields, and transportation facilities. Their role ranges from operating a small lifting mechanism to supplying hydraulic power for large industrial machinery.
Why Hydraulic Power Units Matter in Industry
Hydraulic power units allow machines to perform movements that may be difficult to achieve through manual force alone. They also help operators control movement speed, lifting force, and the position of mechanical components.
Common applications include:
Manufacturing equipment that presses, forms, or clamps materials.
Construction machinery that lifts, digs, or moves heavy objects.
Agricultural equipment that raises attachments and adjusts working components.
Warehouse lifting systems that move goods between different levels.
Industrial maintenance platforms and equipment used for controlled positioning.
Problems Addressed by Hydraulic Systems
Hydraulic power units help address several practical operating challenges. They can provide substantial force within a relatively compact arrangement, making them useful when machinery must operate in limited spaces.
They also support controlled movement through pressure regulation and flow-control valves. However, hydraulic systems can experience fluid leaks, overheating, contamination, and pressure fluctuations if components are incorrectly selected, installed, or maintained.
The selection of an HPU therefore depends on the machine's load requirements, operating cycle, available space, environmental conditions, and expected duty period.
Benefits and Limitations
Hydraulic power units have several useful characteristics, although their suitability depends on the application.
Feature | Explanation |
|---|---|
High force capability | Pressurized fluid can generate substantial force in hydraulic cylinders. |
Controlled movement | Valves regulate fluid direction, flow, and pressure. |
Flexible configuration | Components can be arranged for different machine designs. |
Centralized power | One unit may supply hydraulic power to multiple compatible actuators. |
Heat generation | Hydraulic losses can increase fluid temperature during operation. |
Leakage risk | Damaged seals, fittings, or hoses may release hydraulic fluid. |
Maintenance needs | Filters, fluid condition, and mechanical components require inspection. |
Recent Updates
Hydraulic power units continue to evolve as manufacturers and industrial operators focus on energy use, monitoring, noise reduction, and equipment reliability. Recent developments generally emphasize improved control systems and more efficient operation rather than a complete change in the underlying hydraulic principle.
Energy-Efficient Hydraulic Power Units
Conventional hydraulic power units often use motors that run at a relatively constant speed, even when a machine requires less hydraulic flow. In some applications, variable-speed drives adjust motor speed to match demand more closely.
This approach can reduce unnecessary energy use and heat generation under suitable operating conditions. The actual result depends on the machine's workload, control strategy, and operating cycle.
Smart Monitoring and Connected Equipment
Sensors and digital monitoring systems are increasingly used to measure hydraulic pressure, fluid temperature, motor current, vibration, and other operating conditions. This information can help operators identify unusual changes before they develop into more serious equipment problems.
Some systems connect monitoring data to industrial control platforms. These arrangements can support maintenance planning, operating records, and condition-based inspections, although their usefulness depends on sensor quality and the way collected data is interpreted.
Compact Designs and Lower-Noise Operation
Compact hydraulic power packs are used where installation space is limited, including lifting tables, small presses, and mobile equipment. Designers may also use improved motor enclosures, vibration isolation, and pump selection to manage operating noise.
Developments in variable-speed control, filtration, and hydraulic component design continue to influence equipment selection. These features are not available in every unit, so specifications must be checked against the intended application.
Laws or Policies
Hydraulic power units are affected by machinery safety requirements, workplace regulations, electrical standards, environmental rules, and pressure-related requirements. The applicable rules depend on the country, the equipment design, and whether the unit is used in a factory, on a construction site, or in another setting.
Hydraulic Power Unit Regulations in India
In India, hydraulic equipment may fall under several regulatory frameworks depending on its intended use and configuration. Relevant requirements can include the Occupational Safety, Health and Working Conditions Code and associated rules where applicable, electrical safety requirements, and state-level factory regulations.
The applicability of particular provisions depends on the implementation status of the legislation, relevant notifications, and the type of workplace. Equipment used in lifting operations or industrial machinery may also need to meet specific safety requirements related to guarding, inspection, and safe operation.
Pressure Safety and Equipment Standards
Hydraulic systems operate under pressure, so their components must be appropriate for the intended operating conditions. Pumps, hoses, cylinders, fittings, and valves should have suitable pressure ratings and compatible fluid specifications.
International standards can provide guidance for hydraulic system design and safety. For example, ISO 4413 addresses general rules and safety requirements for hydraulic fluid power systems and their components.
Operators should also follow equipment documentation, applicable inspection procedures, and workplace risk assessments. Pressurized hoses and fittings must not be loosened while a system is operating or remains under trapped pressure.
Environmental Considerations
Hydraulic fluid can affect soil and water if it leaks or is disposed of improperly. Workplaces should use suitable containment methods, manage spills promptly, and handle used fluid according to applicable waste-management requirements.
The choice of hydraulic fluid should consider operating temperature, equipment compatibility, and environmental conditions. Fluid handling procedures vary according to the type of fluid and the applicable local regulations.
Tools and Resources
Selecting, operating, and maintaining hydraulic power units involves understanding machine requirements, fluid characteristics, pressure limits, and component specifications. Technical documentation and calculation tools help explain how these factors relate to one another.
Hydraulic Power Unit Sizing Calculators
Hydraulic calculators can help estimate pump flow, hydraulic power, cylinder force, and operating time. These calculations provide an initial understanding of system requirements, but they do not replace a complete engineering assessment.
Useful calculations include:
Cylinder force: For an ideal hydraulic cylinder, force equals pressure multiplied by the effective piston area.
Hydraulic power: Power depends on pressure and flow rate.
Pump flow: Required flow depends on actuator size and the speed of movement.
Reservoir capacity: Capacity depends on circuit design, fluid circulation, heat management, and the equipment manufacturer's specifications.
For example, a cylinder with an effective piston area of 0.01 square metres operating at 10 megapascals of pressure produces an ideal theoretical force of 100,000 newtons. Actual output can differ because of friction, pressure losses, and other operating conditions.
Technical Standards and Manufacturer Documentation
The following resources help explain hydraulic system design and safe operation:
International Organization for Standardization (ISO): Publishes standards, including ISO 4413, covering hydraulic fluid power system safety.
Bureau of Indian Standards (BIS): Provides information about Indian standards and applicable technical requirements.
Manufacturer manuals: Describe pressure ratings, recommended fluids, operating limits, inspection procedures, and component compatibility.
Hydraulic circuit diagrams: Show how pumps, valves, cylinders, reservoirs, and other components are connected.
Industrial monitoring tools: Pressure gauges, temperature sensors, flow meters, and condition-monitoring systems help assess operating conditions.
When interpreting technical information, it is important to distinguish estimated calculations from verified equipment ratings. The complete hydraulic circuit, including its weakest pressure-rated component, must be considered during system design.
FAQs
What Is a Hydraulic Power Unit Used For?
A hydraulic power unit supplies pressurized fluid to machinery that requires controlled force or movement. Common applications include hydraulic presses, lifting platforms, construction equipment, agricultural machinery, and industrial handling systems.
What Are the Main Components of a Hydraulic Power Unit?
The main components usually include a reservoir, hydraulic pump, electric motor or engine, control valves, filters, and connecting hoses or pipes. Some units also contain pressure gauges, cooling systems, sensors, and accumulators.
How Do Hydraulic Power Units Generate Pressure?
A pump moves hydraulic fluid through a circuit, while resistance from the connected equipment and system controls creates operating pressure. Pressure-relief valves help limit pressure within the designed operating range.
What Is the Difference Between a Hydraulic Power Pack and an HPU?
The terms hydraulic power pack and hydraulic power unit are often used interchangeably. Both generally describe an assembly that generates and controls hydraulic power, although terminology can vary between manufacturers and industries.
How Is Hydraulic Power Unit Maintenance Performed?
Maintenance typically involves checking fluid condition, inspecting hoses and fittings, monitoring operating temperature, examining filters, and identifying leaks or unusual noise. Inspection intervals and procedures depend on the equipment manufacturer's instructions and the conditions in which the unit operates.
Conclusion
Hydraulic power units convert mechanical input energy into hydraulic power for operating a wide range of industrial and mobile equipment. Their main components work together to manage fluid flow, pressure, and movement according to the connected machine's requirements. Energy-efficient controls, digital monitoring, and compact designs are influencing modern hydraulic system development. Proper component selection, safe operation, and regular inspection remain important for maintaining reliable performance.
