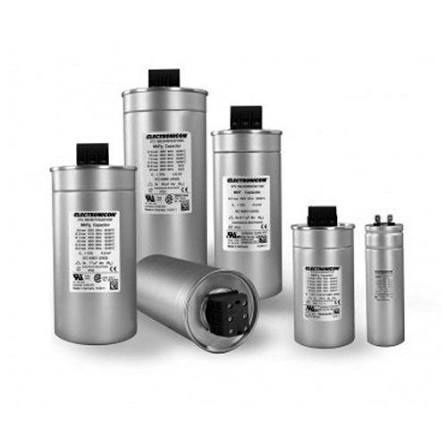

Industrial power capacitors are electrical components used in power systems to manage reactive power and support more efficient use of electrical energy.
They are commonly arranged into power capacitor systems, industrial capacitor banks, and power factor correction systems for industrial facilities where motors, transformers, and other inductive equipment operate.
An industrial power capacitor stores electrical energy in an electric field and releases it as part of an alternating-current electrical system. In industrial environments, capacitors are mainly associated with power factor correction, voltage support, and reactive power compensation.
Why Power Factor Matters
Alternating-current equipment can draw two broad forms of electrical power: active power, which performs useful work, and reactive power, which supports magnetic fields in equipment such as motors and transformers. The relationship between these quantities is represented partly by the power factor.
A lower power factor means that an electrical installation may require more current to deliver a given amount of active power. Power factor correction capacitors can supply reactive power closer to where it is needed, helping reduce the reactive component of current in suitable installations.
How Industrial Capacitor Banks Work
Industrial capacitor banks contain multiple capacitors connected together to provide a required amount of reactive power. An industrial capacitor bank may be permanently connected to a circuit or switched in and out according to electrical demand.
A typical arrangement can include capacitors, switching equipment, protective devices, control equipment, and measurement components. Automatic power factor correction systems use controllers to determine when capacitor stages should be connected or disconnected.
| Component | General Function |
|---|---|
| Capacitor unit | Stores and releases electrical energy |
| Capacitor bank | Combines multiple capacitor units |
| Controller | Monitors electrical conditions and controls switching |
| Switching device | Connects or disconnects capacitor stages |
| Protection equipment | Helps limit damage during abnormal conditions |
| Measurement equipment | Provides electrical operating information |
Common Industrial Applications
Industrial power capacitor systems are found in environments where electrical loads create significant reactive power demand. Typical applications include manufacturing plants, processing facilities, large commercial buildings, pumping installations, and infrastructure involving substantial motor loads.
High voltage power capacitors are used in electrical networks operating at higher voltage levels. High voltage capacitor banks can be configured for particular network requirements and may be incorporated into broader electrical power capacitor equipment.
Importance
Industrial power capacitors matter because electrical systems need to manage both active and reactive power. Poor power factor can increase current flow through parts of an electrical installation, which can affect the loading of transformers, conductors, and other equipment.
Power factor correction is therefore an important consideration in many industrial electrical systems. The appropriate configuration depends on the characteristics of the electrical load, operating voltage, harmonics, switching requirements, and applicable electrical standards.
Supporting Electrical System Operation
Industrial reactive power compensation can help balance reactive power requirements within an electrical installation. Capacitors can provide reactive power locally, reducing the amount that must travel through upstream parts of the system.
Industrial reactive power compensation systems may be applied at individual loads, distribution panels, or larger electrical networks. The selected arrangement depends on how the facility operates and how its electrical demand changes.
Applications in Motor-Driven Equipment
Electric motors are common sources of inductive loads in industrial environments. Pumps, compressors, conveyors, fans, machine tools, and other motor-driven equipment can create reactive power demand during operation.
An industrial capacitor system can be installed alongside appropriate electrical equipment to address this demand. The arrangement must account for changes in load because excessive correction can create its own electrical problems.
Managing Changing Electrical Demand
Some facilities have relatively stable loads, while others experience substantial changes during production cycles. Fixed capacitor arrangements may suit relatively consistent loads, whereas automatic power factor correction can use switched capacitor stages.
Automated industrial capacitor systems can therefore adjust the connected capacitance according to measured electrical conditions. This approach is particularly relevant where equipment starts and stops frequently or where electrical demand changes throughout operating periods.
Recent Updates
From 2024 through 2026, the development of industrial capacitor applications has generally followed broader changes in industrial electrical systems. Greater use of electronic equipment, variable-speed drives, digital monitoring, and connected control systems has increased attention to power quality and system coordination.
Integration With Modern Power Systems
Advanced power factor correction systems increasingly incorporate digital controllers and measurement capabilities. These systems can monitor electrical conditions and control capacitor stages according to programmed operating parameters.
Advanced industrial power capacitor systems may also be designed with communication features that allow electrical information to be viewed through plant monitoring platforms. Such integration can make operating conditions easier to observe without changing the basic electrical function of the capacitor itself.
Harmonics and Power Quality
Modern industrial facilities may contain equipment that produces harmonic currents. Variable-frequency drives, power converters, switching power supplies, and other electronic devices can influence the electrical waveform.
Because capacitor banks can interact with harmonic conditions, system design may require consideration of resonance and harmonic distortion. Detuned reactors, filtering arrangements, and other power-quality components may be used where the electrical design calls for them.
High Voltage Applications
High voltage power capacitors continue to be used in electrical distribution and transmission environments for reactive power management and voltage-related applications. High voltage capacitor bank systems can consist of multiple units arranged with appropriate switching and protection equipment.
The physical arrangement and operating requirements differ from lower-voltage installations. Electrical clearances, insulation coordination, protection, grounding, and switching behavior become important considerations at higher voltage levels.
Automation and Monitoring
Automatic control is another continuing development in capacitor systems. Automatic power factor correction equipment can measure power factor or related electrical quantities and change capacitor stages as demand changes.
Digital monitoring can also provide information about switching activity, operating conditions, and potential abnormalities. These capabilities connect traditional capacitor bank power factor correction with broader industrial monitoring practices.
Tools and Resources
Several tools can help people understand, calculate, or document capacitor applications. These resources are useful for education and preliminary analysis, while actual electrical-system design requires appropriate technical evaluation.
Power Factor Calculators
Power factor calculators can estimate the reactive power compensation associated with a change in power factor. A common calculation uses active power, the initial power factor, and the desired power factor to estimate the required reactive power compensation.
Basic calculators can help explain the relationship between active power, reactive power, apparent power, and power factor. Results from such calculations should not be treated as a complete electrical design.
Electrical Standards and Documentation
Electrical standards provide requirements and guidance related to capacitor installations, protection, switching, insulation, and power quality. Technical documentation from recognized standards organizations and equipment manufacturers can provide terminology, ratings, diagrams, and application information.
Useful reference materials include:
- Power factor calculation worksheets.
- Capacitor bank sizing templates.
- Single-line electrical diagrams.
- Power quality measurement records.
- Equipment specification sheets.
- Electrical inspection and maintenance checklists.
Monitoring and Analysis Platforms
Electrical monitoring platforms can collect information such as voltage, current, power factor, active power, reactive power, and harmonic measurements. This information can help explain how a facility's electrical demand changes over time.
Process engineers and electrical professionals may use these records when evaluating industrial capacitor banks or power factor correction systems. Accurate measurements are important because capacitor selection depends on actual electrical conditions rather than assumptions about equipment behavior.
FAQs
What are industrial power capacitors used for?
Industrial power capacitors are primarily used for reactive power compensation and power factor correction. They can be arranged into capacitor banks for applications involving motors, transformers, distribution systems, and other inductive loads.
How do power factor correction capacitors work?
Power factor correction capacitors provide reactive power to an electrical system. This can reduce the reactive component of current drawn from upstream parts of the electrical network when the system is appropriately designed.
What is an industrial capacitor bank?
An industrial capacitor bank is a group of capacitor units connected together to provide a defined amount of reactive power compensation. Banks may use fixed or switched stages depending on the electrical load.
What are high voltage capacitor banks used for?
High voltage capacitor banks are used in higher-voltage electrical networks for reactive power management and related voltage-support applications. Their design includes considerations such as insulation, protection, switching, grounding, and electrical clearances.
What is automatic power factor correction?
Automatic power factor correction uses measurement and control equipment to connect or disconnect capacitor stages as electrical demand changes. This allows compensation to vary rather than remaining at one fixed level.
Conclusion
Industrial power capacitors are important components in electrical systems that need to manage reactive power and power factor. Industrial capacitor banks and power factor correction systems can be configured for different voltage levels, load patterns, and operating conditions. Recent developments have increased the use of digital monitoring, automatic switching, and power-quality analysis alongside conventional capacitor technology. Understanding these components requires consideration of the electrical load, system voltage, harmonics, protection, and operating conditions.
