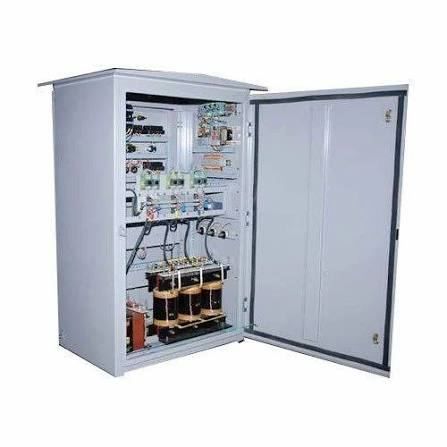

Power rectifiers are electrical devices that convert alternating current (AC) into direct current (DC).
This conversion is important because many industrial machines, electronic systems, battery systems, and DC-powered equipment require a controlled DC supply. Industrial power rectifiers can range from relatively simple circuits to complex high power rectifier systems designed for demanding electrical environments.
A rectifier generally uses semiconductor components such as diodes or thyristors to control the direction in which electrical current flows. AC voltage periodically changes direction, while a rectifier allows current to flow toward the DC output in a controlled manner. Depending on the circuit design, the resulting DC may contain fluctuations that are reduced through filters and other electrical components.
Industrial rectifier equipment is commonly integrated into larger electrical systems. Examples include industrial DC power supplies, electrochemical equipment, battery charging systems, telecommunications infrastructure, transportation systems, and processes requiring controlled DC electricity.
How a Power Rectifier Works
The basic rectification process begins with an AC input. Semiconductor devices allow selected portions of the AC waveform to pass through the circuit, producing a unidirectional output.
A simple half-wave rectifier uses one primary conduction path and produces an output from one portion of the AC waveform. A full-wave design uses both portions of the waveform, resulting in a more continuous DC output. Three phase power rectifiers use three AC phases and are commonly associated with industrial electrical systems because their output can provide a smoother waveform than single-phase arrangements.
The main stages can be summarized as:
AC input supplies alternating electrical energy.
Rectifier devices direct current toward the DC output.
Filtering reduces unwanted voltage fluctuations.
Regulation or control adjusts the output when required.
Protection components help manage abnormal electrical conditions.
Main Types of Power Rectifiers
Different rectifier configurations are selected according to voltage, current, control requirements, and application conditions. Common categories include diode rectifiers, controlled rectifiers, single-phase rectifiers, and three-phase rectifiers.
Controlled rectifier systems use controllable semiconductor devices to adjust the average DC output. This makes them useful when an application requires variable DC voltage or current rather than a fixed output.
High voltage rectifier systems are designed for applications where the DC output operates at elevated voltage levels. Their design requires careful consideration of insulation, electrical clearances, cooling, protection, and system monitoring.
| Rectifier Type | General Characteristic | Common Application Area |
|---|---|---|
| Half-wave | Uses part of the AC waveform | Simple low-power circuits |
| Full-wave | Uses both AC waveform portions | DC power conversion |
| Three-phase | Uses three AC phases | Industrial power systems |
| Controlled | Output can be adjusted | Industrial DC control |
| High-voltage | Designed for elevated DC voltage | Specialized electrical systems |
| High-current | Designed for substantial current flow | Industrial DC processes |
Importance
Power rectification is important because many electrical systems require DC power even when the available electrical source is AC. Without a suitable conversion stage, equipment designed around DC voltage cannot operate from a conventional AC supply.
Industrial AC DC rectifier systems are therefore found in a wide range of applications. Their electrical characteristics influence how equipment receives power, how much fluctuation reaches connected components, and how effectively the system responds to changes in operating conditions.
Industrial and Commercial Applications
Industrial power conversion is used in processes where stable or controlled DC electricity is required. High current rectifier equipment can be used in electrochemical processes, metal-related operations, industrial heating arrangements, and other applications involving substantial electrical currents.
Industrial battery charging rectifiers are another important category. These systems convert AC electricity into DC suitable for charging battery banks while incorporating controls for voltage and current according to the requirements of the battery system.
Industrial rectifier power supplies can also be incorporated into equipment that requires a specific DC voltage. Depending on the application, these systems may include monitoring, cooling, protection, filtering, and control circuits.
Why Voltage and Current Matter
Rectifier selection depends strongly on the electrical characteristics of the intended application. Voltage describes the electrical potential, while current describes the flow of electrical charge. A rectifier must be designed to operate within appropriate voltage and current ranges.
High capacity industrial rectifiers may therefore require substantial thermal management because semiconductor devices generate heat during operation. Cooling arrangements can involve natural airflow, forced air, liquid cooling, or other methods depending on the equipment design.
High efficiency power rectifiers also receive attention because electrical conversion inevitably involves some energy loss. Semiconductor characteristics, switching methods, conduction losses, thermal conditions, and system design all influence conversion efficiency.
Protection and Reliability Considerations
Rectifier systems can encounter conditions such as overvoltage, excessive current, overheating, short circuits, or input disturbances. Protection components and monitoring systems can help identify or limit the effects of such conditions.
High voltage DC rectifier equipment requires additional attention to insulation and physical separation between conductive parts. Appropriate electrical design and operating procedures are particularly important when equipment handles elevated voltage or current levels.
Recent Updates
Recent developments in rectifier technology have focused on semiconductor improvements, digital control, power monitoring, thermal management, and integration with larger power-conversion systems. These developments are relevant to industrial facilities that require more precise control of electrical energy.
Semiconductor and Control Developments
Modern rectifier designs increasingly use advanced semiconductor devices and digital controllers. These technologies can improve control over switching and electrical output while allowing more detailed monitoring of operating conditions.
Advanced power conversion systems may combine rectification with filtering, regulation, monitoring, and communication functions. Such integration can allow operators and control systems to observe electrical conditions through digital interfaces.
Automated industrial power rectifier systems can also be connected to broader automation networks. This allows electrical measurements and operating information to be incorporated into plant monitoring systems.
Greater Integration with Industrial Systems
Advanced industrial high power rectifier systems are increasingly considered as part of a larger electrical architecture rather than as isolated devices. A rectifier may interact with transformers, switchgear, batteries, control systems, sensors, and other equipment.
High performance DC power conversion systems can also be designed around changing load requirements. Digital control can monitor electrical conditions and adjust system behavior within defined operating limits.
Energy and Thermal Considerations
Power conversion efficiency remains an important engineering consideration. Improvements in semiconductor materials, switching methods, cooling technologies, and control algorithms can influence electrical losses and thermal performance.
Modern designs also place greater emphasis on monitoring temperature, current, voltage, and equipment status. These measurements can help identify abnormal operating conditions and support planned maintenance activities.
Tools and Resources
Understanding rectifier systems can involve several practical tools and reference materials. Electrical calculators can help with basic relationships between voltage, current, resistance, and power, while waveform tools can help illustrate how AC changes into DC.
Electrical Calculation Resources
Useful resources include:
Ohm's law calculators for basic voltage, current, and resistance calculations.
Power calculators for estimating electrical relationships.
AC-to-DC conversion calculators for examining rectified voltage.
Datasheets for reviewing semiconductor voltage and current ratings.
Circuit simulation platforms for examining rectifier behavior.
Electrical design references for understanding protection and insulation requirements.
For industrial applications, manufacturer datasheets and technical manuals can provide information about operating ranges, cooling requirements, connection arrangements, and control interfaces.
Standards and Technical Documentation
Electrical standards organizations publish documents covering areas such as power electronics, electrical safety, equipment testing, and system design. Technical documentation can help readers understand terminology and general design principles.
Circuit diagrams and process documentation are also useful when studying industrial rectifier equipment. They can show how transformers, rectifiers, filters, controllers, protection devices, and loads interact within a complete electrical system.
FAQs
What are industrial power rectifiers used for?
Industrial power rectifiers convert AC electricity into DC electricity for equipment and processes that require direct current. Applications can include battery charging, industrial power supplies, electrochemical processes, and other DC-powered systems.
How do three phase power rectifiers work?
Three phase power rectifiers receive power from three AC phases and use semiconductor devices to produce a DC output. Their waveform generally has less fluctuation than a comparable single-phase arrangement, although filtering may still be required.
What are high power rectifier systems?
High power rectifier systems are electrical conversion systems designed to handle substantial levels of DC power. Their design can include transformers, semiconductor devices, cooling arrangements, control circuits, filters, and protection equipment.
What is the purpose of controlled rectifier systems?
Controlled rectifier systems allow the DC output to be adjusted by controlling semiconductor conduction. They are used in applications where the DC voltage or current needs to vary according to operating requirements.
Where are industrial battery charging rectifiers used?
Industrial battery charging rectifiers are used to convert AC input electricity into controlled DC power for charging battery systems. They may be integrated with monitoring and control equipment to manage charging conditions.
Conclusion
Power rectifiers convert AC electricity into DC electricity and are an important part of many industrial and electrical systems. Their configurations vary according to voltage, current, control requirements, waveform characteristics, and application conditions. Modern rectifier technology increasingly combines semiconductor improvements, digital control, monitoring, thermal management, and system integration. Understanding these principles provides a foundation for explaining how industrial DC power supplies and broader power conversion systems operate.
