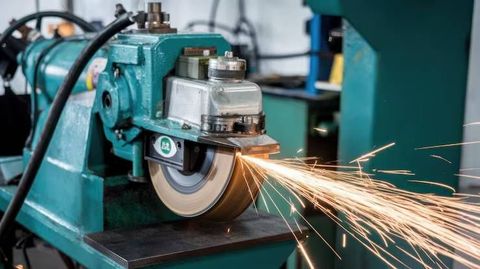

Precision grinding equipment plays an important role in modern machining and manufacturing. It uses an abrasive wheel or another suitable grinding tool to remove small amounts of material from a workpiece, producing accurate dimensions, controlled surface finishes, and specific geometric features.
Precision grinding is commonly used when conventional cutting methods cannot achieve the required dimensional accuracy or surface quality.
The process developed alongside industrial manufacturing as components became more complex and mechanical assemblies required closer tolerances. Today, precision grinding equipment is used to process metals, ceramics, hardened alloys, and other engineering materials across various production environments.
Unlike ordinary material removal, precision grinding focuses on controlling the interaction between the abrasive tool and the workpiece. Machine rigidity, wheel condition, workholding, coolant delivery, and process settings all influence the final result.
Main Types of Grinding Equipment
Different machines support different workpiece shapes, dimensions, and manufacturing requirements. Selecting suitable equipment depends on the material, required tolerance, surface finish, and production volume.
Surface grinding machines use a rotating abrasive wheel to produce flat surfaces with controlled thickness and finish.
Cylindrical grinding machines process the outside surfaces of round components, including shafts, rollers, and precision pins.
Internal grinding machines finish holes and internal cylindrical surfaces.
Centerless grinding machines process cylindrical parts without holding them between centers, making them suitable for repeated production of appropriately shaped components.
Tool and cutter grinding machines sharpen and finish cutting tools used in machining operations.
CNC grinding machines use computer numerical control to coordinate machine movements and process parameters with repeatable accuracy.
How the Grinding Process Works
A grinding wheel contains abrasive grains that act as small cutting edges. As the wheel rotates against the workpiece, these grains remove material through cutting, rubbing, and microscopic fracture.
The operator or control system manages factors such as wheel speed, feed rate, depth of cut, and coolant flow. Appropriate settings help limit excessive heat, dimensional errors, wheel wear, and unwanted surface damage.
Importance
Why Precision Grinding Matters in Manufacturing
Precision grinding equipment helps manufacturers produce components that must fit accurately within mechanical assemblies. Even small dimensional variations can affect alignment, vibration, friction, sealing, and the operating life of a finished product.
The process is especially important for hardened materials that are difficult to machine using conventional cutting tools. Grinding can also improve surface consistency after heat treatment, when components may develop dimensional changes that require correction.
Industries using precision grinding include automotive manufacturing, aerospace engineering, medical equipment production, industrial machinery, energy systems, and precision tooling.
Factors Affecting Grinding Accuracy
Several technical factors determine whether a grinding operation produces consistent results.
Machine rigidity: A stable machine structure reduces unwanted movement during material removal.
Abrasive selection: Grain type, wheel hardness, and wheel structure should suit the material and grinding operation.
Workholding: Secure positioning helps prevent movement, vibration, and dimensional variation.
Thermal control: Excessive heat can cause burns, residual stresses, or dimensional changes.
Wheel dressing: Dressing restores the wheel's cutting characteristics and can improve geometric accuracy.
Measurement: Suitable inspection equipment verifies dimensions and surface quality during production.
Common Manufacturing Applications
Precision grinding supports several component manufacturing tasks. Examples include finishing bearing races, producing accurate shafts, refining turbine components, preparing cutting tools, and finishing hardened machine parts.
The process also helps control surface roughness where contact, lubrication, fatigue resistance, or sealing performance depends on the surface condition. However, grinding does not automatically improve every material property; results depend on the workpiece material and the process used.
Recent Updates
CNC Automation and Digital Process Control
Modern precision grinding equipment increasingly incorporates CNC controls, automated workpiece handling, and digital monitoring. These features can reduce dependence on repeated manual adjustments and help maintain consistency across production batches.
CNC grinding systems can coordinate multiple machine axes, manage programmed grinding sequences, and store settings for recurring component designs. Automation can also connect grinding equipment with inspection systems, production scheduling, and other machining operations.
Sensor-Based Monitoring
Sensors are increasingly used to monitor vibration, spindle conditions, temperature, and machine performance. These measurements can help operators identify unusual operating conditions before they result in extensive component defects or equipment downtime.
Some systems use process data to support predictive maintenance. Such systems still require appropriate calibration, interpretation, and maintenance procedures; sensor readings alone do not establish that every component meets its specifications.
Advanced Abrasives and Sustainable Manufacturing
Developments in abrasive technology include engineered grinding wheels, ceramic abrasives, and superabrasive materials such as cubic boron nitride and diamond. Their suitability depends on workpiece hardness, chemical compatibility, operating temperature, and the required finish.
Manufacturers are also paying greater attention to coolant management, energy consumption, wheel life, and abrasive waste. Optimizing these factors can reduce unnecessary material use while maintaining process requirements.
Comparison of Common Grinding Technologies
Equipment type | Typical application | Main consideration |
|---|---|---|
Surface grinder | Flat components | Flatness and surface finish |
Cylindrical grinder | External round surfaces | Diameter and roundness |
Internal grinder | Holes and bores | Bore geometry and finish |
Centerless grinder | Repeated cylindrical parts | Feed stability and part consistency |
CNC grinder | Complex or repeatable operations | Programming and process control |
Tool and cutter grinder | Cutting tools | Tool geometry and edge condition |
Laws or Policies
Machinery Safety Requirements
Precision grinding equipment must be operated according to applicable workplace safety rules and machine manufacturer instructions. Relevant requirements commonly address rotating machinery, abrasive wheel integrity, electrical systems, guarding, noise, dust, and operator training.
Requirements vary by country and industry. Manufacturers and facility operators should identify the occupational safety regulations, machinery standards, and inspection obligations applicable to their location.
Important safety measures generally include:
Using suitable wheel guards and machine enclosures.
Inspecting grinding wheels for damage and following specified mounting procedures.
Operating wheels within their rated speed limits.
Wearing appropriate eye and face protection.
Maintaining safe distances from rotating parts.
Following lockout procedures before maintenance or internal cleaning.
Controlling airborne particles and coolant exposure where necessary.
Quality and Manufacturing Standards
Precision grinding operations may be governed by engineering drawings, dimensional tolerances, surface roughness specifications, and industry-specific quality systems. International standards can help define measurement methods, geometric tolerances, and requirements for documented manufacturing processes.
ISO 9001 is a widely used quality management standard, while ISO GPS standards address aspects of geometrical product specifications and verification. Compliance depends on the requirements applicable to a particular organization or contract; using a standard does not automatically establish that a finished component meets every technical specification.
Environmental Considerations
Grinding can produce fine particles, used abrasive material, metal-bearing sludge, and contaminated coolant. Facilities may need procedures for collection, handling, treatment, and disposal under applicable environmental rules.
Coolant storage, spill prevention, ventilation, and waste segregation can also affect workplace conditions. Appropriate controls depend on the grinding material, coolant chemistry, production process, and local requirements.
Tools and Resources
Measurement and Inspection Equipment
Accurate inspection is essential for confirming the results of precision grinding. The appropriate instrument depends on the required tolerance, component geometry, and measurement conditions.
Common tools include:
Micrometers for checking external dimensions.
Dial indicators for assessing runout and alignment.
Coordinate measuring machines for evaluating complex geometries.
Surface roughness testers for measuring texture.
Bore gauges for checking internal diameters.
Roundness measuring instruments for evaluating circular components.
Measurement uncertainty, calibration, cleanliness, and temperature can influence inspection results. Instruments should have suitable resolution and accuracy for the specified tolerance.
Grinding Wheel Selection Resources
Grinding wheel manufacturers provide technical information about abrasive type, grit size, bond, hardness, structure, and recommended operating conditions. These characteristics help determine how a wheel interacts with a particular workpiece.
A simplified selection guide is shown below.
Material or requirement | Common consideration |
|---|---|
Hardened steel | Abrasive suitability and heat control |
Carbide components | Diamond abrasive compatibility |
Tough metal alloys | Grain selection and wheel loading |
Fine surface finish | Grit size and dressing quality |
High-volume production | Wheel life and process consistency |
Complex component geometry | Machine axes and workholding |
This table provides general guidance rather than fixed operating instructions. The actual selection must account for the wheel specification, machine limits, workpiece material, and manufacturer recommendations.
Process Planning and Digital Tools
Computer-aided manufacturing software can help prepare CNC grinding programs, define tool paths, and coordinate grinding with other machining operations. Machine monitoring platforms can record operating conditions, production quantities, and maintenance events.
Useful planning resources include machine manuals, grinding wheel specification sheets, tolerance drawings, inspection plans, coolant handling instructions, and maintenance logs. These documents help operators maintain consistent procedures and trace the conditions associated with a production batch.
FAQs
What is precision grinding equipment used for?
Precision grinding equipment removes small amounts of material to achieve specified dimensions, surface finishes, and geometric accuracy. It is used for components such as shafts, bearings, tools, and hardened machine parts.
What is the difference between CNC grinding and conventional grinding?
CNC grinding uses computer-controlled movements and programmed operations, supporting repeatable machining sequences. Conventional grinding may rely more heavily on manual controls and operator adjustments, depending on the machine design.
Which grinding machine is suitable for cylindrical components?
Cylindrical grinders are commonly used for external round surfaces, while internal grinders finish bores. Centerless grinding can suit repeated cylindrical components when their geometry and production requirements are compatible with the process.
How does a grinding wheel affect surface finish?
Abrasive grain size, wheel structure, bond, dressing condition, and operating parameters influence surface finish. Finer abrasives can support smoother surfaces, but the final result also depends on the material and grinding method.
What safety precautions are important when using precision grinding equipment?
Operators should use appropriate guarding, inspect abrasive wheels, follow rated speed limits, wear suitable protective equipment, and follow machine-specific operating procedures. Maintenance should be performed only after the equipment has been safely isolated.
Conclusion
Precision grinding equipment supports accurate machining by controlling material removal, component geometry, and surface finish. CNC controls, monitoring sensors, advanced abrasives, and improved inspection methods are shaping modern grinding operations. Equipment selection depends on workpiece material, tolerance requirements, production needs, and machine capabilities. Safe operation, appropriate measurement, and compliance with applicable manufacturing and environmental requirements remain essential.
