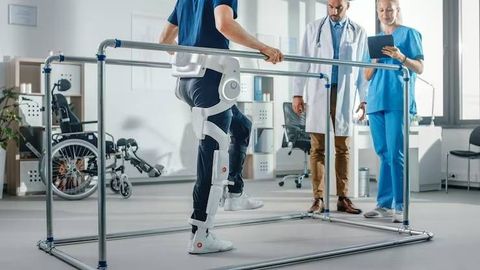

A robotic rehabilitation exoskeleton is a wearable robotic system designed to assist body movement during rehabilitation and mobility training.
These systems are generally worn around parts of the body such as the hips, knees, or ankles and use mechanical structures, sensors, motors, and control software to help guide movement. Research has expanded from early systems focused mainly on severe walking limitations to devices designed for a wider range of neurological and musculoskeletal conditions.
The basic idea behind a robotic rehabilitation exoskeleton is to provide controlled physical assistance while a person practices specific movements. Lower-limb systems commonly focus on walking, standing, weight shifting, and step training, while other robotic systems can assist movements of the upper limbs. The amount and type of assistance can vary according to the device, training activity, and individual movement ability.
How Robotic Exoskeletons Work
A robotic exoskeleton usually combines a wearable frame with sensors and powered joints. Sensors can detect information such as joint position, movement patterns, force, or the user's intention to move. The control system processes this information and determines how the robotic components should respond.
Some systems guide a person's legs through a planned movement pattern, while others provide assistance only when additional support is needed. This approach can allow repeated practice while reducing the physical effort required for certain movements.
Main Types of Exoskeleton Systems
Robotic rehabilitation exoskeletons can differ considerably in design. Rigid exoskeletons use structured frames around the body and can provide substantial joint assistance. Soft exosuits use flexible materials and can provide lighter assistance while allowing greater freedom of movement.
Systems can also be classified according to the joints they support. Some focus on the hip, while others assist the hip and knee or include the ankle. Upper-limb robotic systems are designed around areas such as the shoulder and elbow and are being studied for rehabilitation following neurological conditions.
Importance
Mobility can become difficult after neurological injury, neurological disease, musculoskeletal problems, or other conditions affecting movement. Walking limitations can influence independence, physical activity, participation in everyday activities, and rehabilitation goals. Robotic rehabilitation systems are being studied as tools that can provide structured and repetitive movement practice in these situations.
Repetitive Movement Practice
Repetition is an important part of many rehabilitation programs. A robotic exoskeleton can help a person perform repeated walking or movement cycles while maintaining a controlled pattern. This can make it possible to practice particular movements with consistent mechanical assistance.
Research does not show that robotic systems produce the same results for every condition or every individual. Evidence varies according to the type of device, rehabilitation program, health condition, training duration, and outcome being measured.
Supporting Different Mobility Needs
The potential uses of these systems extend across several populations. Research has examined exoskeleton-assisted rehabilitation for people with spinal cord injury, stroke, cerebral palsy, and Parkinson's disease, among other conditions.
A person's existing movement ability is an important consideration. Someone with substantial weakness may require more mechanical assistance, while someone who can already walk may require only limited assistance during selected exercises. This is one reason current research increasingly focuses on adjustable and individualized control.
Key Considerations
Several factors influence how a robotic rehabilitation exoskeleton can be used:
- Physical condition and movement ability
- Which joints require assistance
- Balance and postural control
- Device weight and fit
- Battery and operating requirements
- Ease of putting on and removing the device
- Training environment
- Therapist or rehabilitation professional involvement
- Safety procedures and appropriate device settings
These considerations are important because an exoskeleton is not simply a powered walking frame. It interacts directly with a person's body and movement patterns.
| Feature | Typical Role |
|---|---|
| Sensors | Detect movement, position, force, or user activity |
| Motors or actuators | Generate controlled joint assistance |
| Frame or wearable structure | Aligns the device with supported body areas |
| Control software | Determines how assistance is delivered |
| Battery system | Supplies electrical power to powered components |
| Training interface | Allows movement settings and activity parameters to be adjusted |
Recent Updates
Research from 2024 through 2026 has increasingly focused on making wearable robotic systems more adaptive, personalized, and practical. Recent reviews describe developments involving adaptive control, intention-sensitive assistance, sensor integration, and artificial intelligence-related methods. These approaches aim to make assistance respond more closely to an individual's movement rather than relying only on fixed movement patterns.
More Personalized Assistance
Personalization has become an important research direction. A 2025 systematic review of robotic exoskeletons for cerebral palsy identified growing attention toward adapting device functions to individual users while also noting gaps in long-term research and user-friendly design.
This trend is also visible in sensor-based upper-limb systems. Recent research has examined combinations of movement, force, muscle-activity, and inertial sensors to make robotic assistance more responsive to the user's actions. Many of these systems remain in development or clinical validation.
Growing Clinical Evidence
Recent research has produced mixed findings depending on the population and outcome measured. A 2025 meta-analysis of randomized trials involving spinal cord injury found that robotic gait training produced improvements in some functional measures, while differences in walking speed and walking distance were not consistently significant compared with conventional gait training.
Another 2025 analysis involving spinal cord injury research reported improvements across several motor-function measures following exoskeleton training, although the authors also noted variation among studies.
These findings show why robotic rehabilitation exoskeleton research needs to be interpreted according to the specific condition, device, training method, and measured outcome rather than treating all exoskeleton systems as identical.
Practical Challenges
Despite technological progress, several challenges remain. Reviews have identified issues involving device weight, comfort, usability, standardized training procedures, limited large-scale research, and integration into everyday environments.
Researchers are therefore examining lighter structures, improved sensors, adaptive software, and designs that can function more naturally with human movement. The broader direction is toward systems that can provide controlled assistance without unnecessarily restricting voluntary movement.
Tools and Resources
Several types of resources can help readers understand robotic rehabilitation exoskeleton technology and related mobility research.
Research Databases
PubMed can be used to locate clinical studies, systematic reviews, and research articles involving exoskeletons, gait rehabilitation, wearable robotics, and mobility. Research databases are useful for distinguishing experimental findings from general descriptions of technology.
Mobility Assessment Measures
Common rehabilitation assessments include walking-speed tests, timed mobility tasks, walking-distance assessments, balance measurements, and functional scales. These measurements help researchers examine changes in mobility before and after a training program.
Sensor and Motion Analysis Tools
Motion sensors, inertial measurement units, force sensors, and electromyography systems can provide information about movement and muscle activity. These technologies are increasingly being studied alongside robotic rehabilitation systems to create more responsive control methods.
Rehabilitation Documentation
Structured assessment forms and rehabilitation progress records can help organize information about movement ability, training activities, assistance levels, and observed changes. Consistent documentation is particularly useful when comparing results across different training sessions or research studies.
FAQs
What is a robotic rehabilitation exoskeleton?
A robotic rehabilitation exoskeleton is a wearable robotic device that assists movement during rehabilitation or mobility training. It commonly supports joints such as the hip, knee, or ankle and may use sensors and powered components to provide controlled assistance.
How does a robotic rehabilitation exoskeleton support walking?
The device can detect movement and provide mechanical assistance at selected joints. Depending on its design, it may help guide leg movement, support stepping, or adjust assistance according to the user's activity.
Who may use a robotic rehabilitation exoskeleton?
Research has examined these systems for people with conditions including spinal cord injury, stroke, cerebral palsy, and Parkinson's disease. Suitability depends on the individual's movement abilities, rehabilitation goals, physical characteristics, and the specific device.
Are robotic exoskeletons suitable for everyone with mobility limitations?
No. Different devices have different physical requirements, operating methods, and supported movements. Assessment by an appropriately trained rehabilitation professional is important when determining whether a particular system is appropriate.
What are current developments in robotic rehabilitation exoskeleton technology?
Current research is examining adaptive control, sensor integration, personalized assistance, artificial intelligence-related methods, lighter wearable structures, and greater usability outside specialized rehabilitation environments.
Conclusion
Robotic rehabilitation exoskeletons combine wearable structures, sensors, powered components, and control software to assist movement during rehabilitation and mobility training. Research has expanded across conditions such as spinal cord injury, stroke, cerebral palsy, and other neurological or musculoskeletal disorders. Recent developments increasingly focus on personalized assistance, adaptive control, improved sensing, comfort, and practical use. Evidence continues to develop, with outcomes varying according to the device, condition, training approach, and assessment method.
