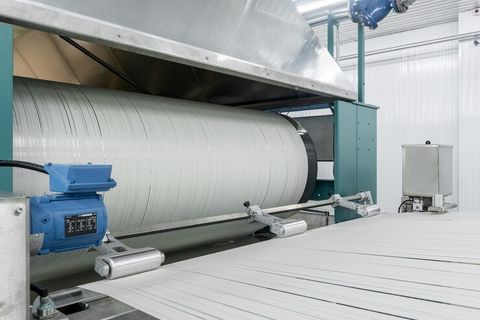

A roll slitting machine is industrial equipment used to divide a wide roll of flexible or semi-flexible material into narrower rolls. The process is commonly known as slitting and rewinding because the incoming master roll is separated into multiple widths and then wound into individual rolls for later manufacturing processes.
Context
The machine is used with materials such as plastic films, paper, foil, laminates, adhesive-coated materials, nonwoven materials, textiles, and other roll-based substrates. The exact machine configuration depends on material thickness, width, tensile characteristics, roll diameter, winding requirements, and the desired finished-roll dimensions.
Roll slitting developed from the need to convert large material rolls into formats that match downstream production equipment. Instead of processing one wide roll throughout an entire production line, manufacturers can divide it into narrower rolls that correspond to packaging, printing, converting, coating, labeling, insulation, or other production requirements.
How roll slitting works
The basic process begins with an unwind section that holds the master roll. The material passes through tension-control and guiding components before reaching the slitting section, where circular blades, razor blades, shear knives, or other cutting arrangements separate the web into narrower sections.
The separated webs then enter the rewind section. Each section is wound onto a core or shaft to create individual rolls. Tension must remain controlled during this stage because excessive or insufficient winding pressure can affect roll formation.
A typical roll slitting machine contains several functional areas:
Unwinding system for holding and releasing the incoming roll
Web-guiding system for maintaining material alignment
Slitting system for separating the material
Tension-control system for managing web movement
Rewinding system for producing finished rolls
Drive and control system for coordinating machine movement
The configuration can vary considerably between machines. Some systems are designed for narrow materials, while others handle wide master rolls used in large-scale converting operations.
Common slitting methods
Different materials require different cutting arrangements. Razor slitting uses a sharp blade positioned against or near the moving web and is commonly associated with thinner materials. Shear slitting uses two circular knives that interact with each other, while score slitting applies pressure between a knife and a supporting surface.
Crush or score methods may be suitable for particular substrates, while shear arrangements can provide a different cutting action. Selection depends on material characteristics, required edge quality, production conditions, and the machine configuration.
Importance
Roll slitting machines are important because many manufacturing processes require material in specific widths rather than in the original master-roll format. Converting a wide roll into narrower rolls allows material dimensions to match downstream equipment and production layouts.
The process also affects how material is handled throughout a factory. Finished rolls need suitable winding tension, edge alignment, core dimensions, and roll diameter so that they can move into subsequent processes without unnecessary handling difficulties.
Production needs that influence machine selection
A production line may have different requirements depending on the material and intended application. Important factors include:
Material width and thickness
Master-roll diameter and weight
Required finished-roll width
Number of slit rolls produced from each master roll
Maximum and minimum winding diameter
Required line speed
Tension-control range
Core diameter and core material
Cutting method
Roll-handling requirements
These factors are interconnected. For example, a thin film can behave differently from a thick paper substrate at the same operating speed. Material elasticity can also influence tension requirements and finished-roll quality.
Material conversion applications
Roll slitting is used across several industrial sectors because many materials are manufactured or supplied in wide web formats.
| Material | Typical conversion requirement | Related industries |
|---|---|---|
| Plastic film | Narrow rolls for further processing | Packaging and converting |
| Paper | Width reduction and rewinding | Printing and paper processing |
| Aluminum foil | Controlled-width rolls | Packaging and industrial applications |
| Laminated film | Width conversion | Flexible packaging |
| Nonwoven material | Narrow-roll preparation | Hygiene and technical materials |
| Adhesive-coated web | Width conversion | Labels and industrial products |
| Textile web | Narrowing and rewinding | Textile processing |
| Insulation material | Roll-width conversion | Construction and industrial applications |
The specific suitability of a machine depends on the physical properties of the material and the intended downstream process.
Recent Updates
From 2024 through 2026, development in roll slitting has generally focused on automation, process monitoring, tension control, material handling, and integration with digital production systems. Rather than changing the basic principle of slitting, newer machine configurations increasingly combine mechanical conversion with electronic controls and automated monitoring.
Automation and control systems
Modern machines can incorporate programmable control systems, touchscreen interfaces, automated tension regulation, web-position monitoring, and recipe-based production settings. These functions can reduce the amount of manual adjustment required during repeated production runs.
Automation is particularly relevant when several finished-roll widths must be produced from different master-roll specifications. Digital controls can help operators manage settings consistently between production batches.
Tension and web control
Tension management remains an important area of machine development. Inconsistent web tension can contribute to problems such as telescoping rolls, wrinkles, loose winding, or uneven edges.
Electronic tension systems can monitor material behavior and adjust machine operation during the winding process. The appropriate control method depends on the material, machine design, and production conditions.
Automated roll handling
Larger industrial systems increasingly incorporate automated or semi-automated roll handling. This can include shaftless loading, automatic knife positioning, finished-roll unloading, and material handling equipment integrated around the slitting process.
Such systems are intended to reduce manual handling steps and support production layouts where roll dimensions or weights make frequent manual movement impractical.
Digital production monitoring
Industrial manufacturers are also connecting converting equipment with production monitoring systems. Data such as operating speed, roll length, machine status, production quantities, and process interruptions can be collected for operational analysis.
Digital connectivity does not replace the mechanical requirements of slitting. Instead, it provides additional information for understanding machine operation and production performance.
Laws or Policies
Roll slitting machines are industrial equipment and may be subject to workplace safety, machinery, electrical, environmental, and occupational requirements. The exact rules depend on the country, industry, machine configuration, and location where the equipment is installed.
Common regulatory areas include machine guarding, emergency stopping systems, electrical safety, operator protection, noise exposure, workplace risk assessment, and safe material handling. Machines with rotating shafts, cutting blades, powered rollers, and moving webs require particular attention to guarding and access control.
Manufacturers and facility operators may also need to consider technical standards relating to machinery safety and electrical systems. Standards can address areas such as risk reduction, protective devices, control-system safety, and safe access to moving components.
Because requirements differ between jurisdictions, compliance should be assessed against the current rules applicable to the facility where the machinery is installed. Technical documentation, risk assessments, operating instructions, and maintenance records may form part of a facility's broader machinery-safety program.
Tools and Resources
Several tools and resources can help people understand roll slitting requirements and plan production parameters.
Slitting layout calculations
A slitting layout calculator can help determine how many narrower rolls can be produced from a master-roll width. For example, a production planner can compare the required finished widths with the available master width while accounting for trim or edge waste.
A simple calculation begins with:
Number of rolls = usable master-roll width รท required slit width
In actual production, the result must also account for trim allowances, knife spacing, material properties, and machine limitations.
Web-tension references
Material suppliers and machine documentation can provide information about recommended handling conditions for particular substrates. These references can help production personnel understand how material thickness, elasticity, and winding behavior affect machine settings.
Production records
A production worksheet can record:
Master-roll width
Master-roll diameter
Material thickness
Material type
Finished-roll widths
Core diameter
Slitting pattern
Target roll diameter
Tension settings
Production quantity
Observed process issues
Keeping these parameters together can make production planning and process comparison easier.
Machine documentation
Technical manuals, equipment specifications, knife-system documentation, and maintenance instructions are useful resources for understanding a particular roll slitting machine. The manufacturer's stated operating limits should be considered when determining suitable materials and production conditions.
FAQs
What is a roll slitting machine used for?
A roll slitting machine is used to convert wide master rolls into narrower rolls. It is commonly used for materials such as plastic film, paper, foil, laminates, nonwovens, and other web-based substrates.
How does a roll slitting machine work?
The machine unwinds a master roll, guides the material through a slitting section, separates the web into narrower widths, and rewinds the resulting strips into individual rolls. Tension and alignment systems help control the material during this process.
What materials can a roll slitting machine process?
Material compatibility depends on machine configuration and cutting method. Plastic films, paper, foil, laminates, adhesive-coated materials, nonwovens, textiles, and selected industrial webs can be processed on appropriately configured equipment.
What is the difference between shear slitting and razor slitting?
Shear slitting uses interacting circular knives to separate the web, while razor slitting uses a sharp blade to cut the material. The appropriate method depends on material properties, thickness, edge requirements, and machine configuration.
What factors affect roll slitting production?
Material width and thickness, master-roll diameter, finished-roll width, winding tension, cutting method, line speed, core dimensions, and roll-handling requirements can all influence production. Machine configuration and material characteristics also affect the operating range.
