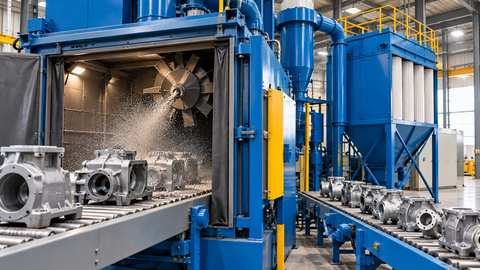

A shot blasting machine is an industrial surface preparation system that cleans, strengthens, and finishes metal, concrete, and other materials by propelling abrasive media at high speed onto a surface.
The process removes rust, scale, paint, contaminants, and surface imperfections while improving surface texture for coating, welding, or further manufacturing.
Shot blasting is widely used in manufacturing, construction, automotive production, foundries, shipbuilding, and steel fabrication because it provides consistent surface treatment and supports high-volume industrial operations.
Quick Facts About Shot Blasting Machines
| Feature | Description |
|---|---|
| Primary Function | Surface cleaning and preparation |
| Operating Method | High-speed abrasive projection |
| Common Materials Processed | Steel, iron, aluminum, concrete |
| Typical Applications | Rust removal, paint removal, surface profiling |
| Main Abrasive Types | Steel shot, steel grit, cut wire shot |
| Industry Usage | Manufacturing, automotive, construction |
| Surface Effect | Cleaning, strengthening, texturing |
| Automation Level | Manual, semi-automatic, automatic |
What Is a Shot Blasting Machine?
A shot blasting machine is a mechanical system that accelerates abrasive particles toward a target surface. The impact removes contaminants and modifies the surface condition according to manufacturing requirements.
Unlike manual cleaning methods, shot blasting delivers controlled and repeatable results across large production volumes. The process is commonly integrated into production lines where surface quality directly affects product performance, coating adhesion, or structural durability.
Why Shot Blasting Matters
Surface condition influences product quality, coating performance, corrosion resistance, and manufacturing efficiency. Many industrial processes require a clean and properly profiled surface before painting, galvanizing, welding, or assembly.
Shot blasting helps manufacturers:
- Remove rust and oxidation
- Eliminate mill scale
- Clean casting residues
- Improve coating adhesion
- Create uniform surface textures
- Increase production consistency
- Reduce manual labor requirements
- Prepare surfaces for inspection
Understanding the Shot Blasting Process
Simple Explanation
A shot blasting machine works similarly to a powerful mechanical cleaning system. Abrasive particles are thrown at high velocity against a surface. The impact removes unwanted material and creates a controlled surface finish.
The abrasive media is usually collected, cleaned, and recycled within the machine, making the process efficient for industrial applications.
How the Shot Blasting Machine Process Works
Loading the Workpiece
The component, structure, or material is placed inside the machine or moved through the blasting chamber using conveyors, rollers, hooks, or rotating tables.
Abrasive Acceleration
A turbine wheel or blasting mechanism accelerates abrasive media to high speed.
Surface Impact
The abrasive strikes the workpiece surface, removing rust, scale, paint, sand, contaminants, and other unwanted materials.
Surface Profiling
The impact creates a controlled surface texture that improves adhesion for coatings and finishing systems.
Abrasive Recovery
Spent abrasive falls into a collection system where reusable media is separated and recycled.
Dust Collection
Dust and debris generated during blasting are captured by filtration and dust collection systems.
Finished Part Discharge
The cleaned and prepared component exits the machine for further manufacturing processes.
Shot Blasting Process Workflow Table
| Process Stage | Purpose |
|---|---|
| Material Loading | Position workpiece for treatment |
| Media Acceleration | Propel abrasive media |
| Surface Cleaning | Remove contaminants |
| Surface Profiling | Create desired texture |
| Media Recovery | Collect reusable abrasive |
| Dust Extraction | Remove airborne particles |
| Inspection | Verify surface condition |
| Unloading | Transfer finished component |
Shot Blasting Machine Construction
Blast Wheel Assembly
The blast wheel generates the energy required to accelerate abrasive media toward the target surface.
Blasting Chamber
The enclosed chamber contains the blasting process and protects surrounding equipment.
Abrasive Recovery System
This system collects, separates, and recycles reusable blasting media.
Dust Collection Unit
Dust collectors maintain cleaner operating conditions and improve environmental control.
Conveyor System
Conveyors transport workpieces through the blasting area automatically.
Control System
The control panel manages blasting parameters, machine operation, and safety functions.
Main Components of a Shot Blasting Machine
| Component | Function |
|---|---|
| Blast Wheel | Projects abrasive media |
| Blasting Chamber | Contains blasting operations |
| Abrasive Hopper | Stores blasting media |
| Separator | Removes waste from abrasive |
| Dust Collector | Captures dust particles |
| Conveyor System | Moves workpieces |
| Control Panel | Operates machine functions |
| Wear Liners | Protect machine surfaces |
Types of Shot Blasting Machines
Tumble Belt Shot Blasting Machine
Used for small and medium-sized components that can tumble during processing.
Advantages:
- Suitable for batch production
- Handles complex shapes
- Efficient cleaning performance
Hanger Type Shot Blasting Machine
Workpieces are suspended from hooks and rotated during blasting.
Advantages:
- Suitable for delicate components
- Uniform exposure
- Good accessibility
Roller Conveyor Shot Blasting Machine
Designed for plates, beams, structural steel, and large fabricated components.
Advantages:
- Continuous processing
- High productivity
- Suitable for heavy materials
Rotary Table Shot Blasting Machine
Uses a rotating platform to expose workpieces to blasting media.
Advantages:
- Uniform treatment
- Suitable for precision parts
- Controlled processing
Continuous Pass-Through Shot Blasting Machine
Common in automated production environments.
Advantages:
- High throughput
- Consistent quality
- Production line integration
Shot Blasting Machine Type Comparison
| Type | Best For | Production Style |
|---|---|---|
| Tumble Belt | Small parts | Batch |
| Hanger Type | Complex components | Batch |
| Roller Conveyor | Steel plates and beams | Continuous |
| Rotary Table | Precision parts | Controlled batch |
| Pass-Through | High-volume production | Continuous |
Materials and Process Requirements
Shot blasting systems can process a variety of materials when appropriate abrasives and machine settings are selected.
Common workpiece materials include:
- Carbon steel
- Structural steel
- Cast iron
- Stainless steel
- Aluminum alloys
- Forged components
- Concrete surfaces
Typical requirements include:
- Appropriate abrasive selection
- Proper machine capacity
- Dust collection systems
- Surface cleanliness targets
- Operator safety procedures
Shot Blasting vs Sand Blasting
| Feature | Shot Blasting | Sand Blasting |
|---|---|---|
| Media Delivery | Mechanical wheel projection | Compressed air |
| Productivity | Generally higher for large volumes | Often used for detailed work |
| Media Types | Steel shot, grit, metallic media | Various blasting abrasives |
| Automation | Highly automated | Often portable |
| Industrial Scale | Large manufacturing facilities | Maintenance and field work |
| Media Recovery | Commonly integrated | Varies by system |
Shot blasting is typically preferred for high-volume industrial production, while abrasive air blasting methods may be selected for specialized applications and field operations.
Benefits and Advantages of Shot Blasting Machines
- Uniform surface preparation
- Improved coating adhesion
- Faster processing compared to many manual methods
- Consistent production quality
- Abrasive recycling capability
- Reduced labor requirements
- Effective rust and scale removal
- Suitable for large industrial workloads
- Supports automated production systems
- Enhanced surface appearance
Industry Applications of Shot Blasting Machines
Steel Fabrication
Steel structures, beams, and plates are cleaned before painting, welding, or assembly.
Automotive Manufacturing
Vehicle components undergo surface preparation before coating and finishing operations.
Foundries
Castings are cleaned to remove molding sand, scale, and production residues.
Shipbuilding
Large steel sections require surface treatment before protective coating application.
Construction Materials
Concrete surfaces may be prepared for repair, coating, or decorative finishing.
Rail and Transportation
Railway components and transportation equipment benefit from controlled surface preparation.
Industry Applications Table
| Industry | Typical Application |
|---|---|
| Steel Fabrication | Structural steel cleaning |
| Automotive | Component preparation |
| Foundry | Casting cleaning |
| Shipbuilding | Hull surface treatment |
| Construction | Concrete preparation |
| Rail Transport | Component refurbishment |
Industry Standards and Safety
Shot blasting operations are commonly influenced by recognized industrial standards and safety requirements.
Relevant standards include:
- ISO 8501 for surface preparation assessment of steel substrates
- ISO 8503 for surface roughness characteristics
- ISO 11124 for metallic blast-cleaning abrasives
- ISO 11126 for non-metallic blast-cleaning abrasives
- Occupational safety requirements for dust control and worker protection
Proper machine guarding, ventilation, dust collection, hearing protection, and operator training are important parts of safe operation.
Common Challenges and Solutions
| Challenge | Solution |
|---|---|
| Uneven Surface Finish | Optimize wheel positioning |
| Excessive Abrasive Consumption | Improve media recovery efficiency |
| Dust Generation | Upgrade dust collection systems |
| Component Damage | Adjust blasting intensity |
| Equipment Wear | Use wear-resistant liners |
| Surface Contamination | Improve pre-cleaning procedures |
| Inconsistent Results | Standardize operating parameters |
How to Choose a Shot Blasting Machine
| Selection Factor | Consideration |
|---|---|
| Workpiece Size | Machine chamber dimensions |
| Production Volume | Batch or continuous operation |
| Material Type | Surface hardness and geometry |
| Surface Finish Requirement | Cleaning and profiling needs |
| Automation Level | Manual or automated handling |
| Available Space | Installation footprint |
| Maintenance Access | Serviceability requirements |
| Dust Control Needs | Environmental compliance |
Maintenance Best Practices
Regular maintenance improves machine reliability and blasting consistency.
Recommended practices include:
- Inspect blast wheels routinely
- Monitor abrasive quality
- Replace worn liners when necessary
- Clean dust collection filters
- Check conveyor systems regularly
- Verify separator performance
- Lubricate moving components
- Maintain accurate operating records
Preventive maintenance helps reduce downtime and protects critical machine components from excessive wear.
Limitations of Shot Blasting Machines
Although highly effective, shot blasting is not suitable for every application.
Limitations include:
- Equipment can require substantial installation space
- Wear components require periodic replacement
- Dust control systems add operational complexity
- Thin or delicate materials may require careful process control
- Initial equipment investment can be significant
- Some intricate internal surfaces may be difficult to reach
Manufacturers should evaluate workpiece characteristics and production requirements before selecting a blasting solution.
Future Trends in Shot Blasting Technology
Several developments are shaping modern shot blasting systems:
- Increased automation and robotics
- Smart monitoring and predictive maintenance
- Improved abrasive recycling systems
- Energy-efficient drive technologies
- Enhanced dust collection performance
- Digital production integration
- Real-time process monitoring
These advancements aim to improve productivity, consistency, and operational efficiency while supporting modern manufacturing requirements.
Frequently Asked Questions
What is the primary purpose of a shot blasting machine?
A shot blasting machine cleans and prepares surfaces by propelling abrasive media at high speed. It removes contaminants and creates a suitable surface condition for coatings, welding, or further processing.
What materials can be processed by shot blasting machines?
Common materials include steel, cast iron, stainless steel, aluminum alloys, and concrete surfaces. Machine settings and abrasive selection depend on the material being treated.
Is shot blasting the same as sand blasting?
No. Shot blasting typically uses mechanically accelerated abrasive media, while sand blasting and other abrasive air blasting methods use compressed air to propel abrasive particles.
Why is surface profiling important?
Surface profiling creates a texture that helps coatings, paints, and protective finishes adhere more effectively to the substrate.
What abrasive media are commonly used?
Steel shot, steel grit, and cut wire shot are among the most common abrasives used in industrial shot blasting operations.
Can shot blasting remove rust?
Yes. Shot blasting is widely used for rust removal, oxidation removal, and elimination of mill scale from metal surfaces.
How does abrasive recycling work?
Most industrial machines collect spent abrasive, separate contaminants, and return reusable media to the blasting cycle.
What industries use shot blasting machines?
Steel fabrication, automotive manufacturing, foundries, shipbuilding, transportation, and construction industries commonly use shot blasting equipment.
Does shot blasting strengthen metal surfaces?
In some applications, controlled blasting can contribute to surface conditioning and may support processes related to fatigue resistance, depending on the blasting method and application.
How often should a shot blasting machine be maintained?
Maintenance schedules vary by machine design and operating conditions. Regular inspections of blast wheels, liners, filters, and recovery systems are typically recommended.
Conclusion
Shot blasting machines are essential industrial surface treatment systems used to clean, profile, and prepare materials for manufacturing and finishing operations. By combining abrasive projection, media recovery, and automated processing, these machines deliver consistent surface quality across a wide range of industries. Selecting the appropriate machine type, abrasive media, and maintenance strategy helps ensure efficient operation and reliable production results.
