Spin coating technology is a widely used method for depositing thin, uniform layers of liquid materials onto flat substrates.
The process is based on placing a measured quantity of coating material on a substrate and rotating it at controlled speed. Centrifugal force spreads the liquid across the surface while excess material moves outward, followed by solvent evaporation and film formation.
Spin coating is used in semiconductor fabrication, optical components, sensors, research laboratories, microfabrication, printed electronics, and other advanced material-processing applications. Understanding thin-film deposition, process parameters, material control, equipment configuration, and quality measurement helps explain how this relatively simple process can produce films with controlled thickness and surface characteristics.
Context
What Is Spin Coating Technology?
Spin coating technology is a thin-film deposition technique in which a liquid precursor or coating solution is distributed across a rotating substrate. The substrate may be made from silicon, glass, metal, polymer, or another material compatible with the selected coating formulation.
The process generally begins with substrate preparation. A small quantity of liquid is placed near the center of the substrate, which then rotates at a defined speed. Rotation spreads the liquid outward while excess material is removed from the surface.
The basic sequence normally includes:
Substrate cleaning and preparation
Placement of the substrate on the rotating stage
Dispensing of a controlled liquid volume
Acceleration to the selected rotation speed
Spreading and thinning of the liquid layer
Solvent evaporation
Formation of the final thin film
Post-treatment, baking, or curing when required
The exact sequence depends on the coating material, substrate, equipment, and intended film characteristics.
How Thin-Film Deposition Works
During rotation, centrifugal force moves liquid away from the center of the substrate. At the same time, viscous forces resist the outward movement, while solvent evaporation gradually changes the liquid composition.
As the process continues, the liquid layer becomes thinner. Eventually, sufficient solvent has evaporated for the remaining material to form a stable film.
Film thickness depends on several interacting variables rather than rotation speed alone. Material viscosity, concentration, solvent volatility, substrate surface condition, ambient humidity, acceleration profile, and spinning duration can all influence the final result.
Common Applications
Spin coating is used across several technical fields. In semiconductor manufacturing, it can be used for applying photoresist and other thin functional layers during microfabrication.
Research laboratories use spin coating to prepare polymer films, optical layers, dielectric materials, nanomaterial coatings, and other experimental thin films. The technique is also relevant to sensors, solar-cell research, display technologies, and surface modification studies.
Main Spin Coating Approaches
Spin coating processes can differ according to how material is applied and how the rotation sequence is controlled.
Static deposition involves placing the coating material on a stationary substrate before rotation begins. Dynamic deposition introduces material while the substrate is already rotating.
Single-stage spinning uses a relatively simple rotation sequence, while multi-stage processes may include separate spreading, acceleration, and final spinning stages.
| Process factor | General influence on film | Typical control approach |
|---|---|---|
| Rotation speed | Strong influence on thickness | Controlled rotational speed |
| Solution viscosity | Influences liquid flow and thickness | Formulation adjustment |
| Dispensed volume | Affects initial material coverage | Precision dispensing |
| Spin duration | Influences drying and final layer | Timed rotation |
| Acceleration | Affects spreading behavior | Programmed ramp |
| Ambient humidity | Can influence evaporation | Environmental monitoring |
| Substrate condition | Affects adhesion and uniformity | Cleaning and surface preparation |
Importance
Controlling Film Thickness
One of the main reasons spin coating technology is widely used is its ability to produce thin layers with controlled thickness when process conditions are properly established.
Film thickness is important because it can influence optical properties, electrical behavior, mechanical characteristics, chemical resistance, and subsequent manufacturing steps. Even relatively small variations may matter in applications involving multilayer structures or microscale features.
Surface Uniformity
Uniform coverage is important when a coated substrate is used for further processing. Variations in thickness can result from contamination, surface irregularities, uneven dispensing, inappropriate acceleration, or changes in material properties.
Substrate preparation therefore forms an important part of the process. Cleaning, drying, surface activation, and controlled handling can influence how the liquid spreads.
Material Control
The coating formulation must have appropriate physical and chemical characteristics for the intended application. Important properties can include viscosity, solids concentration, surface tension, solvent composition, and particle content.
Material preparation may involve filtration, controlled mixing, dilution, or temperature conditioning. The exact procedure depends on the material system and the desired film characteristics.
Process Reproducibility
Reproducibility is important in both laboratory research and industrial manufacturing. If rotation speed, dispense volume, material temperature, humidity, or substrate condition changes between batches, film characteristics can also change.
A controlled process records important parameters so that variations can be investigated. Digital controllers and data logging systems can assist with this type of process documentation.
Applications in Microfabrication
Spin coating is particularly relevant to microfabrication because thin layers can be used as functional or temporary materials during patterning processes. Photoresist coatings, for example, can form a controlled layer before exposure and development.
The required film thickness depends on the substrate, pattern dimensions, exposure method, material formulation, and subsequent processing stages.
Recent Updates
Automated Process Control
From 2024 through 2026, spin coating systems have continued to incorporate greater levels of automation and digital monitoring. Modern equipment can control rotation speed, acceleration, dispensing, process duration, and other parameters through programmable sequences.
Automation can improve repeatability by reducing variation in manually performed steps. Data logging also makes it easier to compare individual coating cycles and identify unusual process behavior.
Improved Dispensing Systems
Precision liquid dispensing has become increasingly important for applications requiring controlled film thickness and material utilization. Automated dispensers can regulate liquid volume and placement more consistently than manual pipetting.
Different dispensing arrangements can be selected according to solution viscosity, substrate dimensions, and process requirements.
Environmental Monitoring
Temperature and humidity can influence solvent evaporation and film formation. As a result, controlled environments are increasingly important for sensitive coating processes.
Laboratories and production facilities may monitor room temperature, relative humidity, airflow, and other environmental variables. This information can help explain differences between coating runs.
Data-Driven Process Analysis
Digital records can contain rotation profiles, dispense quantities, process times, temperature readings, and other information. Analysis of these records can help identify relationships between operating conditions and film measurements.
Some advanced systems can integrate equipment controls with laboratory information systems or manufacturing data platforms, depending on facility requirements.
Development of New Material Systems
Research continues into polymeric, inorganic, hybrid, nanostructured, and functional coating materials. Researchers are investigating formulations for optical devices, sensors, energy-related technologies, electronics, and protective layers.
New materials can introduce additional process challenges because viscosity, surface tension, drying behavior, and thermal treatment may differ substantially from established formulations.
Laws or Policies
Industrial and Laboratory Safety
Spin coating equipment can involve rotating components, electrical systems, solvents, heated surfaces, vacuum systems, and chemical materials. Appropriate workplace safety procedures are therefore important during operation.
In India, facilities may need to consider applicable occupational safety requirements, environmental rules, chemical handling provisions, and local industrial regulations. Requirements depend on the facility, materials used, and scale of operation.
Chemical Handling
Some coating formulations contain volatile organic compounds or other substances requiring controlled handling. Appropriate storage, labeling, ventilation, personal protective equipment, and waste management procedures may be required according to the material's classification and applicable regulations.
Safety Data Sheets provide information about material hazards, handling, storage, exposure controls, and disposal considerations.
Environmental Considerations
Spin coating can generate liquid waste, contaminated wipes, used filters, solvent residues, and other laboratory or industrial waste. Facilities should manage these materials according to applicable environmental requirements.
In India, environmental oversight may involve the Central Pollution Control Board and relevant State Pollution Control Boards. The specific requirements depend on the materials, process scale, location, and applicable regulatory category.
Equipment Safety
Rotating equipment should be operated within the manufacturer's specified limits. Proper enclosure, interlocking, emergency controls, electrical protection, and routine inspection can reduce operational risks.
Laboratory personnel should also receive appropriate training before operating equipment involving high rotational speeds or hazardous coating materials.
Tools and Resources
Spin Coater Systems

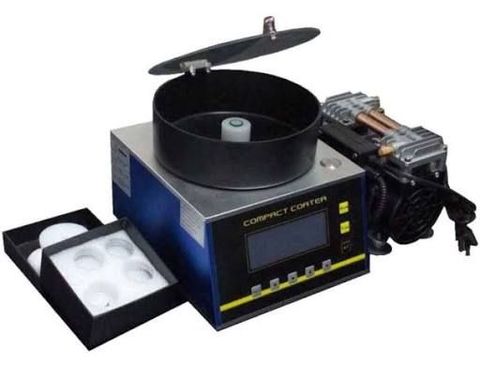

A typical spin coater contains a rotating chuck or stage, motor, speed controller, enclosure, dispensing arrangement, and control interface. Vacuum chucks may be used to hold suitable substrates securely during rotation.
Equipment configuration depends on substrate size, required speed range, material type, and process environment.
Precision Dispensing Equipment
Dispensing can be performed using calibrated pipettes, syringes, automated pumps, or other controlled liquid-delivery systems. The selection depends on the volume range and physical characteristics of the coating material.
Consistent dispensing is important because differences in initial liquid volume can influence the final film.
Film Thickness Measurement
Several techniques can be used to measure coating thickness. Depending on the substrate and material, these may include profilometry, ellipsometry, optical methods, interferometry, or microscopy.
Measurement results can be compared with process records to identify relationships between operating parameters and film characteristics.
Process Documentation
A spin coating process record can include:
Substrate identification
Material formulation
Material temperature
Dispensed volume
Rotation speed
Acceleration profile
Spin duration
Ambient temperature
Relative humidity
Film thickness
Post-treatment conditions
Maintaining these records can support experimental comparison, process development, and quality investigations.
FAQs
What is spin coating technology used for?
Spin coating technology is used to deposit thin liquid-derived films onto flat substrates. Applications include semiconductor processing, microfabrication, optical research, sensors, electronics, polymer films, and laboratory material development.
How does spin coating control thin-film thickness?
Thin-film thickness is influenced by rotation speed, solution viscosity, solids concentration, evaporation behavior, dispense volume, acceleration, and spin duration. These variables interact, so process development normally evaluates them together.
Which process parameters are important in spin coating?
Important process parameters include rotation speed, acceleration, spinning time, liquid volume, solution viscosity, substrate condition, temperature, and humidity. Material properties and post-coating treatment can also influence the final film.
Why is material control important in spin coating?
Material properties such as viscosity, concentration, surface tension, solvent composition, and particle content influence how the liquid spreads and dries. Consistent material preparation can therefore support more repeatable coating results.
What equipment is used for spin coating?
A typical setup includes a motorized rotating stage, substrate holder, speed controller, protective enclosure, and liquid dispensing system. Additional equipment may include environmental monitoring instruments and film-thickness measurement tools.
Conclusion
Spin coating technology is a thin-film deposition method based on controlled liquid spreading over a rotating substrate. Film characteristics depend on rotation speed, acceleration, material properties, dispensing conditions, substrate preparation, environmental conditions, and drying behavior. Recent developments have emphasized automated control, precision dispensing, environmental monitoring, digital process records, and new material systems. Proper equipment operation, material handling, process documentation, and applicable safety and environmental requirements are important parts of a controlled spin coating process.
