A steel coil slitting machine is an industrial metal processing system designed to cut wide steel coils into narrower strips.
The process is known as coil slitting and is widely used in manufacturing industries that require metal strips with specific widths, thicknesses, and edge conditions.

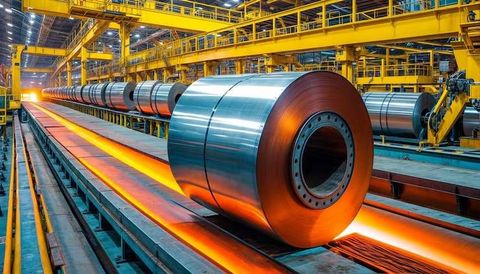

Steel is commonly produced and transported in large coils after rolling. However, many manufacturers need narrower material for their production lines. A steel coil slitting machine converts these wide coils into smaller strips that can be processed into automotive components, metal enclosures, construction materials, electrical equipment, pipes, and other industrial products.
The machine generally combines unwinding, strip guidance, rotary cutting, tension control, and recoiling functions. Its configuration depends on the material being processed, the required strip dimensions, production volume, and the characteristics of the finished product.
How the Metal Slitting Process Works
Steel coil slitting involves several coordinated operations. First, the master coil is loaded onto an uncoiler, which releases the steel strip in a controlled manner. The material then passes through guiding equipment and enters a slitting head containing circular rotary knives.
These knives divide the wide strip into narrower sections as the steel moves through the machine. The resulting strips are collected and rewound into individual coils or arranged according to the production system.
The main stages include:
Uncoiling: Releasing steel from the master coil.
Leveling and guiding: Controlling strip alignment and, where fitted, reducing certain shape irregularities.
Slitting: Cutting the steel into specified widths using rotary knives.
Scrap handling: Managing narrow edge trimmings when generated.
Tension control: Maintaining suitable strip movement throughout processing.
Recoiling: Winding the finished strips into smaller coils.
The exact sequence and equipment arrangement vary by machine design and production requirements.
Common Types of Steel Coil Slitting Machines
Different slitting systems are designed for different material characteristics and manufacturing needs. Standard configurations may process carbon steel, stainless steel, galvanized steel, and certain other metal strips within specified operating limits.
A conventional coil slitting line uses rotary knives to produce multiple narrow strips in one continuous operation. Heavy-duty systems are designed for thicker or heavier coils, while precision slitting lines emphasize dimensional consistency and edge quality for applications with tighter requirements.
Compact systems may suit lower production volumes or narrower material ranges. Automated systems can integrate programmable controls, powered adjustments, monitoring equipment, and coordinated material handling to reduce manual intervention.
Importance
Why Steel Coil Slitting Matters in Manufacturing
Steel coil slitting helps manufacturers obtain material in widths suited to their production processes. Using appropriately sized strips can reduce unnecessary handling and improve the organization of downstream manufacturing operations.
Industries such as automotive manufacturing, construction, appliance production, metal furniture, electrical equipment, and pipe fabrication depend on accurately prepared metal inputs. The required strip width and edge condition can influence how efficiently these materials move through stamping, forming, bending, welding, or rolling operations.
Production Accuracy and Material Utilization
Dimensional consistency is important because narrow steel strips often feed automated production equipment. Variations in width, edge condition, or strip tension can contribute to alignment problems, interruptions, or defects in later manufacturing stages.
Material utilization also matters. Incorrect knife positioning, unsuitable cutting clearances, poor strip alignment, and unnecessary edge trimming can increase scrap generation. Careful setup and routine inspection help manufacturers control material losses and maintain repeatable output.
Industries That Use Slit Steel Coils
Common applications include:
Automotive components: Steel strips for selected brackets, reinforcements, and formed parts.
Construction: Metal framing components, roofing profiles, and structural accessories.
Pipe manufacturing: Narrow strips used as feedstock for tube and pipe forming lines.
Electrical equipment: Steel materials used in selected enclosures and components.
Appliances: Metal panels, frames, and internal structural parts.
General fabrication: Strips used in stamping, bending, rolling, and other metalworking processes.
The suitability of a particular strip depends on its grade, thickness, mechanical properties, surface condition, and intended application.
Key Machine Specifications
The main technical specifications should be evaluated together rather than in isolation.
Specification | Meaning | Industrial significance |
|---|---|---|
Coil width | Width of the incoming master coil | Determines material compatibility |
Coil thickness | Thickness of the steel sheet | Influences cutting requirements |
Coil weight | Maximum supported coil mass | Determines handling capacity |
Slitting width | Width of each finished strip | Defines downstream material dimensions |
Line speed | Rate at which the strip moves | Affects production throughput |
Knife configuration | Arrangement and dimensions of rotary knives | Influences cut quality and strip layout |
Tension control | Regulation of strip tension | Helps maintain stable processing |
Recoiler capacity | Amount of material the recoiler can handle | Determines finished-coil requirements |
Actual operating limits depend on the machine model, steel grade, coil condition, tooling, and production configuration.
Recent Updates
Automation and Digital Production Controls
During 2024–2026, industrial metal processing continued to emphasize automation, production monitoring, and more consistent equipment operation. Steel coil slitting machines may incorporate programmable logic controllers, digital operator interfaces, automatic positioning systems, and sensors that monitor selected operating conditions.
These technologies can help operators manage setup parameters, identify process interruptions, and record production information. However, the level of automation differs substantially between installations, and automated controls do not eliminate the need for qualified operators and maintenance personnel.
Improvements in Process Monitoring
Manufacturers increasingly use digital monitoring to track variables such as line speed, tension, machine status, and production quantities. When integrated with factory management systems, this information can support maintenance planning and production analysis.
Some installations also use automated knife positioning and recipe storage to simplify repeat production runs. Accuracy still depends on correct tooling, material properties, equipment condition, and appropriate setup procedures.
Energy Efficiency and Material Waste
Industrial facilities continue to examine energy consumption, equipment utilization, and material waste as part of manufacturing improvement programs. In coil slitting, relevant considerations include drive efficiency, compressed-air consumption where applicable, scrap handling, and the reduction of avoidable production interruptions.
Manufacturers may evaluate output quality alongside energy use and scrap rates. These measures provide a more complete picture of production performance than line speed alone.
Laws or Policies
Industrial Machinery Safety
Steel coil slitting machines involve rotating knives, heavy coils, powered rollers, and moving material. These components create risks such as crushing injuries, cuts, entanglement, and unexpected machine movement.
Industrial facilities should establish appropriate machine guarding, emergency-stop arrangements, safe operating procedures, and maintenance controls. Operators require suitable training, while personnel performing maintenance should follow procedures that isolate electrical, mechanical, hydraulic, and other hazardous energy sources.
Applicable legal requirements depend on the country, workplace, machine configuration, and industry. Manufacturers and facility operators should identify the occupational safety rules and machinery requirements relevant to their operations.
Machinery Design and Technical Standards
Industrial machinery may be designed or assessed against applicable technical standards covering machine safety, electrical systems, guarding, and control functions. Standards published by organizations such as ISO and IEC are relevant to various aspects of machinery design, but the applicable standard depends on the equipment and intended use.
A machine specification should clearly identify operating limits, safety provisions, maintenance requirements, and installation conditions. Buyers and operators should distinguish between a manufacturer's technical claims and independently verified conformity documentation.
Environmental and Workplace Requirements
Metal processing facilities may also be subject to requirements concerning industrial waste, noise, energy use, and workplace conditions. Steel offcuts and edge trimmings should be collected and handled according to applicable waste-management procedures.
Lubricants, hydraulic fluids, and cleaning materials should be stored and managed appropriately. Good housekeeping around the slitting line can reduce slip hazards, improve access for maintenance, and support safer material handling.
Tools and Resources
Coil Slitting Calculators and Production Planning
Engineering calculators can help estimate strip layouts, coil dimensions, material mass, and production requirements. These calculations support preliminary planning, although actual machine setup must account for tooling geometry, trim allowances, material tolerances, and equipment limitations.
Useful calculations include:
Strip layout: Determining how many strips of specified widths can fit across a master coil.
Material mass: Estimating steel weight from dimensions and material density.
Production throughput: Estimating processed material over a given operating period.
Scrap percentage: Comparing discarded material with the total input quantity.
Coil dimensions: Estimating outer diameter from coil width, thickness, inner diameter, and material length.
For simplified calculations, steel mass can be estimated using volume multiplied by material density. Actual coil measurements and the appropriate steel grade should be used when greater accuracy is required.
Maintenance and Quality Records
A structured maintenance checklist helps track machine condition and recurring problems. Common inspection areas include rotary knives, spacers, bearings, guiding rollers, tension systems, electrical controls, guarding, and recoiler components.
Quality records can document incoming material specifications, finished strip widths, edge condition, coil identification, and nonconforming output. These records help production teams identify repeated deviations and investigate their possible causes.
Technical Documentation
Machine manuals, tooling drawings, electrical diagrams, inspection records, and operating procedures provide important information for safe and consistent production. Documentation should match the installed machine configuration and any approved modifications.
Training materials should explain coil loading, threading, setup, normal operation, emergency procedures, and safe maintenance practices. Access to accurate documentation is particularly important when equipment is integrated into an automated production line.
FAQs
What is a steel coil slitting machine used for?
A steel coil slitting machine cuts wide steel coils into narrower strips. These strips are used in manufacturing processes such as pipe forming, stamping, bending, automotive component production, and construction material fabrication.
How does a steel coil slitting machine work?
The machine unwinds a master coil, guides the steel through rotary cutting knives, separates the material into narrower strips, and rewinds the strips into finished coils. Controlled tension and accurate knife positioning help maintain consistent output.
Which factors affect steel coil slitting machine performance?
Performance depends on material thickness, steel grade, knife condition, cutting clearance, strip tension, line speed, coil alignment, and operator setup. Equipment maintenance and appropriate process settings also influence finished strip quality.
What safety precautions are necessary for a coil slitting line?
Suitable guarding, emergency-stop systems, trained operators, controlled access, and safe energy-isolation procedures are important. Personnel should never reach into moving equipment or attempt adjustments without following the machine's approved safety procedures.
How is scrap reduced during steel coil slitting?
Scrap can be managed through accurate strip-layout planning, suitable knife positioning, correct cutting clearances, and consistent material alignment. Monitoring edge trimming and investigating recurring defects can also help reduce avoidable material losses.
Conclusion
Steel coil slitting machines are important components of metal processing and industrial manufacturing because they convert wide steel coils into strips suited to downstream production. Their performance depends on equipment configuration, material properties, tooling accuracy, tension control, and maintenance practices. Automation and digital monitoring can support production consistency, while machine guarding and safe operating procedures remain essential. Understanding these factors helps explain how coil slitting contributes to material preparation, manufacturing quality, and production planning.
