A well-designed commercial network depends on more than switches, routers, and wireless access points. Structured commercial network cabling systems provide the physical foundation that connects workstations, servers, access points, security devices, and other network equipment throughout a building.
As offices become more dependent on cloud applications, video collaboration, connected devices, and high-speed data transfer, the cabling infrastructure has a direct effect on network reliability and scalability. A poorly organized installation can make troubleshooting difficult and limit future expansion.
Understanding how structured cabling is planned, organized, tested, and documented helps businesses create network layouts that are easier to maintain and adapt. The right design considers cable pathways, distribution points, connection hardware, performance requirements, labeling, and future capacity from the beginning.
Why Structured Cabling Matters in Commercial Networks
Structured cabling uses a standardized architecture rather than connecting network devices through isolated or improvised cable runs. The approach creates an organized physical infrastructure that can support different technologies over its operational life.
A commercial building may contain dozens or thousands of network connections. Computers, phones, wireless access points, cameras, printers, access-control systems, and building-management devices can all depend on structured connectivity.
Without a consistent layout, additions can gradually produce tangled cables, undocumented connections, overloaded pathways, and difficult troubleshooting conditions. Structured cabling separates the physical infrastructure from individual applications, allowing the same cabling framework to support multiple network requirements.
Standards such as ANSI/TIA-568 and ISO/IEC 11801 provide widely recognized principles for telecommunications cabling design, performance, and organization. Following an appropriate standard helps create predictable installation practices and consistent documentation.
The Core Architecture of a Structured Cabling System
A structured commercial network cabling system typically consists of several interconnected areas. Each has a specific role in moving data between user locations and central network equipment.
The entrance facility provides the point where telecommunications infrastructure enters a building. It can contain equipment and connections associated with external network providers.
The equipment room generally contains major network equipment such as core switches, routers, servers, and related infrastructure. It acts as an important central point within the building's connectivity architecture.
Telecommunications rooms or intermediate distribution areas connect horizontal cabling with network equipment. Larger buildings may require several telecommunications rooms because one central location cannot efficiently serve every floor or area.
Horizontal cabling extends from telecommunications rooms to individual outlets or connection points. This portion commonly supports office workstations, wireless access points, cameras, and other endpoint devices.
At the user location, work-area components connect equipment to the permanent cabling infrastructure. Patch cords and outlet assemblies provide flexibility without requiring the permanent cabling to be changed whenever equipment moves.
Choosing Copper and Fiber for Different Network Paths
Cable selection should reflect the distance, bandwidth requirements, environmental conditions, and intended application.
Copper twisted-pair cabling remains common for horizontal connections because it supports many office networking applications and can also deliver power through technologies such as Power over Ethernet.
Different categories of copper cabling provide different performance characteristics. Category 6 and Category 6A are frequently considered in modern commercial installations, particularly where higher data rates and greater bandwidth are required.
Fiber optic cabling becomes particularly useful for backbone connections and longer-distance links. Fiber uses light rather than electrical signals, making it suitable for high-bandwidth connections between telecommunications rooms, equipment rooms, and buildings.
The choice is therefore not simply about selecting the fastest cable. A practical design considers where each medium provides the appropriate combination of transmission performance, distance capability, installation requirements, and future flexibility.
Planning an Efficient Network Layout
An efficient layout begins before cables are installed. Designers need to understand the building, the expected endpoint locations, and how network traffic will move through the infrastructure.
A floor plan can identify work areas, telecommunications rooms, equipment locations, ceiling pathways, cable trays, and potential obstacles. Endpoint density should also be considered because areas with many users or connected devices may require more outlets than lightly occupied spaces.
Cable pathways should follow logical routes while avoiding unnecessary bends, congestion, and exposure to physical hazards. Separation from sources of electrical interference can also be important, particularly where sensitive network equipment is involved.
Planning should include additional capacity where practical. A building may have relatively few connected devices today but significantly more endpoints several years later. Designing pathways and distribution spaces with future expansion in mind can reduce disruption when the network grows.
Managing Patch Panels, Racks, and Connections

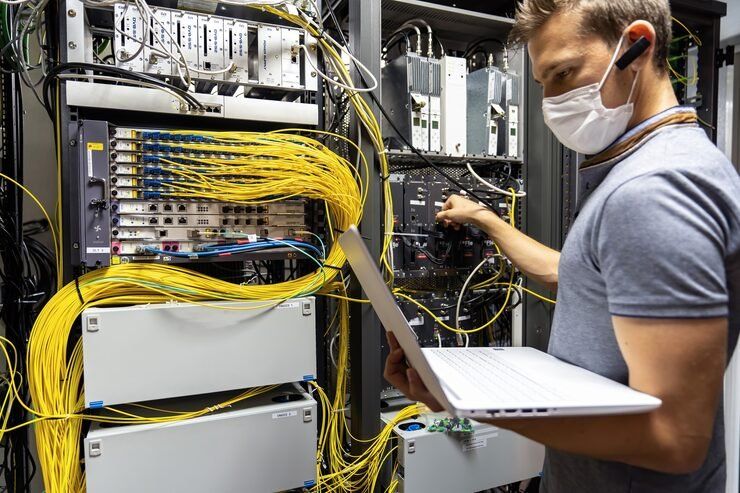

The physical organization of network equipment has a major influence on maintainability. Patch panels provide structured termination points for permanent cabling and allow connections to be changed through patch cords rather than repeatedly disturbing installed cable.
Equipment racks should provide enough space for switches, patch panels, cable management components, power equipment, and future additions. Vertical and horizontal cable managers can help maintain separation between equipment connections and permanent cable runs.
Cable routing should also preserve reasonable bend radii and avoid excessive tension. Copper and fiber cables have physical limitations, and improper handling can affect transmission performance even when the installation appears visually intact.
A neat rack is not simply an aesthetic objective. Clear organization makes it easier for technicians to trace connections, identify faults, perform changes, and document the network accurately.
Labeling and Documentation Are Part of the Infrastructure
A structured cabling installation is incomplete without reliable identification and documentation.
Every cable, outlet, patch-panel position, and relevant connection should follow a consistent labeling system. The identifier should make it possible to determine where a connection originates and where it terminates.
Documentation can include floor plans, rack elevations, cable schedules, outlet identifiers, pathway information, and test results. These records become particularly valuable when equipment is relocated or when a fault occurs.
For example, if a workstation loses network connectivity, clear documentation can help technicians trace the connection from the user outlet through the horizontal cable and patch panel to the appropriate network equipment.
Without documentation, even a technically sound installation can become difficult to manage.
Testing Network Cabling Before Deployment
Testing verifies that installed cabling meets the required transmission characteristics rather than relying on visual inspection alone.
For copper installations, certification testing can evaluate parameters such as wire mapping, insertion loss, return loss, crosstalk, and other performance characteristics depending on the cable category and testing standard.
Fiber installations require different testing methods. Optical loss measurements can verify whether a fiber link remains within the expected transmission limits, while specialized equipment can help identify problems along a fiber path.
Testing should be performed according to the relevant cabling standard and the requirements of the installed system. Test results should also be retained as part of the infrastructure documentation.
This creates a useful baseline for future troubleshooting and network modifications.
Designing for Expansion and Technology Changes
Commercial network infrastructure should not be designed solely around today's devices.
Workplaces increasingly combine wired computers with wireless access points, IP cameras, voice systems, building automation, access control, sensors, and other connected equipment. A structured cabling system may therefore need to support considerably more endpoints over time.
Future planning can involve additional pathway capacity, spare rack space, additional outlets, appropriately sized telecommunications rooms, and backbone infrastructure capable of supporting higher bandwidth.
This does not mean installing unnecessary equipment everywhere. Instead, the physical architecture should provide reasonable flexibility so that future changes do not require extensive reconstruction.
Common Design Considerations for Reliable Installations
Several practical factors deserve attention during planning and installation:
- Cable pathway capacity: Pathways should accommodate current requirements while leaving practical room for expansion.
- Environmental conditions: Temperature, moisture, dust, electromagnetic interference, and physical hazards can influence cable selection and routing.
- Separation: Data cabling should be appropriately separated from electrical infrastructure and other potential interference sources.
- Bend radius: Excessive bending can negatively affect cable performance.
- Power requirements: Power over Ethernet applications require appropriate cabling, equipment, and installation practices.
- Fire and building requirements: Cable types and pathways may need to comply with applicable building and fire-safety regulations.
- Documentation: Installation records should remain accurate after changes are made.
These considerations work together. A technically capable cable can still perform poorly if it is installed incorrectly or placed in an unsuitable environment.
Creating a Cabling System That Remains Manageable
The real value of structured cabling becomes apparent after the installation has been operating for several years. Networks inevitably change. Employees move, equipment is replaced, new devices are added, and building layouts evolve.
A well-structured system makes those changes easier because the physical infrastructure has clear boundaries and consistent identification. Technicians can work with documented connection points instead of tracing undocumented cables through crowded spaces.
Regular audits can also help identify unused connections, damaged components, labeling inconsistencies, and pathway congestion. Keeping documentation synchronized with physical changes prevents the network records from becoming outdated.
Conclusion
Structured commercial network cabling systems provide the physical framework for reliable and adaptable business connectivity. Effective design combines appropriate cable types, logical distribution points, organized racks, practical pathways, consistent labeling, proper testing, and accurate documentation.
An efficient network layout is therefore not simply a matter of running cables from one device to another. It is a planned infrastructure that supports present requirements while leaving room for changing technologies and additional connected devices. When these principles are considered together, commercial cabling becomes easier to operate, troubleshoot, document, and expand.
