Thermal testing equipment is used to examine how materials, components, products, and systems behave when exposed to different temperatures and environmental conditions.
Thermal testing can involve heating, cooling, temperature cycling, thermal shock, humidity, or measurement of physical properties such as thermal conductivity and thermal stability. These methods are used across electronics, automotive manufacturing, construction materials, laboratories, energy systems, packaging, and other technical fields to understand how temperature affects performance and durability.
Context
What Is Thermal Testing Equipment?
Thermal testing equipment includes instruments and controlled environments designed to expose a test specimen to defined temperature conditions. Depending on the purpose, equipment may measure how quickly a material heats or cools, how it expands, whether it changes chemically, or whether a component continues operating after repeated temperature changes.

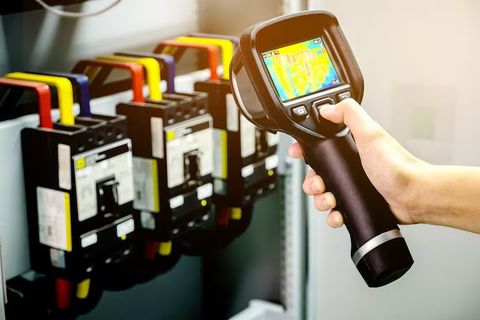

Common examples include temperature chambers, thermal shock chambers, thermal cycling systems, thermocouples, resistance temperature detectors, differential scanning calorimeters, thermogravimetric analyzers, thermal conductivity instruments, and infrared measurement systems.
The equipment used depends on the property being examined. A temperature chamber may be appropriate for testing an electronic component under controlled heat or cold, while a thermal analysis instrument can examine changes in a material as its temperature increases.
Why Temperature Testing Is Needed
Temperature affects materials and products in different ways. Metals may expand and contract, polymers can soften or become brittle, electronic components may experience changes in electrical behavior, and coatings can develop physical changes after repeated heating and cooling.
Thermal testing helps reproduce controlled conditions so these effects can be measured systematically. Rather than relying only on observations from normal use, testing provides temperature-related data that can be compared across materials, designs, or test conditions.
Common Thermal Testing Methods
Several methods are used depending on the application:
- Temperature cycling exposes a specimen to repeated high and low temperatures.
- Thermal shock rapidly moves a specimen between substantially different temperature environments.
- Dry heat testing examines behavior under elevated temperature without intentionally adding humidity.
- Cold testing examines behavior under low-temperature conditions.
- Damp-heat testing combines temperature and humidity to study environmental effects.
- Thermal conductivity testing examines how efficiently heat moves through a material.
- Thermal analysis examines physical or chemical changes as temperature changes.
These methods are not interchangeable. The appropriate method depends on the material, intended application, operating conditions, and applicable testing specification.
Importance
Product Performance and Reliability
Temperature-related changes can influence how products perform throughout their intended use. Electronic devices, vehicle components, batteries, solar modules, construction materials, packaging, and industrial components may all encounter changing thermal conditions.
Repeated temperature exposure can also reveal weaknesses that are not immediately visible. For example, differences in thermal expansion between two bonded materials may create mechanical stress as temperatures rise and fall.
Applications Across Industries
Thermal testing equipment is used in many areas. Electronics manufacturers can examine components under hot and cold conditions, while automotive applications may involve temperature cycling of components intended for changing outdoor or engine-related environments.
In laboratories, thermal analysis can help researchers understand melting, glass transition, decomposition, mass change, heat capacity, and other material characteristics. ASTM Committee E37, for example, covers thermal measurements including thermogravimetry, differential scanning calorimetry, thermomechanical analysis, thermal conductivity, thermal diffusivity, specific heat capacity, and thermal expansion.
Understanding Test Variables
A thermal test is influenced by more than the target temperature. Important variables can include heating and cooling rates, exposure duration, humidity, airflow, specimen size, sensor location, and the number of cycles.
| Test variable | What it describes | Why it matters |
|---|---|---|
| Temperature range | High and low temperatures applied | Defines the environmental condition |
| Ramp rate | Speed of temperature change | Influences thermal stress |
| Exposure time | Duration at a condition | Affects accumulated thermal effects |
| Cycle count | Number of repeated changes | Helps examine repeated exposure |
| Humidity | Moisture level during testing | Can interact with temperature effects |
| Sensor position | Location of temperature measurement | Influences measurement accuracy |
Careful control of these variables makes test results easier to interpret and compare.
Recent Updates
Updated Environmental Testing Standards
Recent developments from 2024 through 2026 show continued refinement of environmental and thermal testing procedures. The IEC 60068 series has received several revised editions addressing temperature and humidity testing.
The 2025 edition of IEC 60068-2-1 revised procedures for cold testing, including temperature tolerances, measurement points, air-velocity considerations, and reporting requirements. IEC 60068-2-2:2025 similarly revised dry-heat testing procedures and clarified measurement and reporting requirements.
IEC 60068-2-30:2025 also revised cyclic damp-heat testing, including chamber requirements, temperature and humidity conditions, intermediate measurements, and test reporting. IEC 60068-2-78:2025 updated steady-state damp-heat testing in areas such as chamber requirements, severity levels, dew-point temperatures, and reporting.
More Structured Sequential Testing
Another development is greater attention to combining environmental conditions in a planned sequence. IEC 60068-3-14:2025 provides a systematic approach for developing climatic sequential test programs by selecting and arranging methods from the IEC 60068-2 series.
This approach is relevant when equipment may experience several environmental conditions during its lifecycle rather than a single isolated temperature exposure.
Growing Attention to Measurement Validation
Thermal measurement itself is also receiving continued attention. ASTM publications through 2025 and 2026 include methods covering thermal analysis apparatus, temperature calibration, thermal conductivity, thermomechanical analysis, and thermogravimetric measurements.
This reflects an ongoing focus on measurement consistency, calibration, test documentation, and repeatable procedures.
Tools and Resources
Temperature Sensors and Data Logging
Thermocouples and resistance temperature detectors are widely used for measuring temperature during testing. Data loggers can record readings over time, making it easier to examine temperature profiles and identify deviations.
Thermal Testing Chambers
Environmental chambers provide controlled temperature conditions for specimens. Depending on the design, a chamber may be configured for high-temperature, low-temperature, humidity, or cycling tests.
Thermal Analysis Instruments
Differential scanning calorimetry can examine heat-related transitions, while thermogravimetric analysis measures changes in mass as temperature changes. Thermomechanical analysis can examine dimensional changes associated with temperature.
Standards and Technical References
The IEC 60068 environmental testing series and ASTM thermal measurement standards provide structured references for many types of thermal evaluation. Relevant documents should be selected according to the material, equipment category, test objective, and applicable requirements.
Data Analysis Tools
Spreadsheet software and laboratory data-analysis platforms can help organize temperature readings, calculate changes over time, compare test cycles, and create tables or graphs. A simple temperature-versus-time dataset can often reveal whether a chamber followed its intended test profile.
FAQs
What is thermal testing equipment used for?
Thermal testing equipment is used to examine how materials, components, and products respond to controlled temperature and environmental conditions. Testing can involve heat, cold, temperature cycling, humidity, or thermal property measurement.
What are common thermal testing methods?
Common methods include dry heat, cold testing, temperature cycling, thermal shock, damp heat, thermal conductivity measurement, and thermal analysis. The appropriate method depends on the test objective and specimen.
Why is thermal cycling testing important?
Thermal cycling exposes a specimen to repeated temperature changes. This can help identify effects associated with expansion, contraction, material changes, mechanical stress, or repeated environmental exposure.
What equipment is used for temperature testing?
Common equipment includes environmental chambers, thermal shock chambers, thermocouples, resistance temperature detectors, data loggers, thermal analyzers, and thermal conductivity instruments.
How have thermal testing standards changed recently?
Recent revisions have clarified temperature tolerances, chamber requirements, measurement locations, environmental conditions, and reporting procedures. Several IEC 60068 standards were technically revised in 2025, reflecting continued development of environmental testing practices.
Conclusion
Thermal testing equipment provides controlled ways to understand how materials, components, and products respond to temperature and related environmental conditions. Testing methods range from simple heat and cold exposure to thermal cycling, thermal shock, humidity testing, and detailed thermal analysis. Recent standards activity has placed additional attention on measurement conditions, test procedures, environmental sequencing, and documentation. Understanding the purpose of each method helps place thermal test results in their proper technical context.
