Extrusion blow molding machines play a significant role in modern plastic manufacturing. They are widely used to produce hollow plastic products such as bottles, containers, tanks, drums, and industrial components.
The technology combines plastic extrusion and air pressure to create lightweight yet durable products in various shapes and sizes.
Many industries rely on extrusion blow molding because it supports efficient production, material flexibility, and consistent product quality. From packaging and automotive applications to household products and industrial storage solutions, extrusion blow molding technology remains an important manufacturing process worldwide.
Understanding how these machines work helps manufacturers, engineers, and industry professionals appreciate the advantages and limitations of this production method.
Quick Facts About Extrusion Blow Molding Machines
| Feature | Details |
|---|---|
| Manufacturing Process | Plastic Extrusion and Blow Molding |
| Product Type | Hollow Plastic Products |
| Common Materials | HDPE, LDPE, PP, PVC, PETG |
| Production Method | Continuous or Intermittent |
| Typical Industries | Packaging, Automotive, Industrial |
| Product Examples | Bottles, Tanks, Containers |
| Automation Capability | High |
| Production Volume | Small to Large Scale |

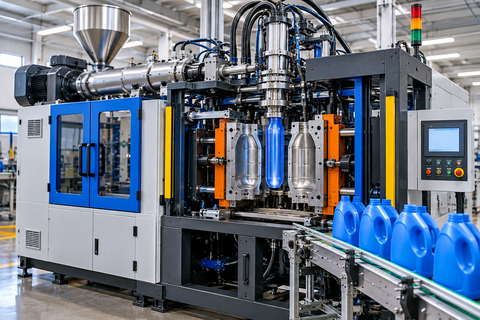

What Is an Extrusion Blow Molding Machine?
An extrusion blow molding machine is industrial equipment that produces hollow plastic products by extruding molten plastic into a tube-like structure called a parison. The parison is captured inside a mold, and compressed air is introduced to expand the material against the mold walls.
As the plastic cools, it takes the shape of the mold cavity. The finished product is then removed and trimmed if necessary.
This process is commonly used for manufacturing products that require hollow interiors, such as plastic bottles, fuel tanks, water containers, chemical containers, and storage drums.
Key Statistics and Industry Facts
| Industry Fact | Details |
|---|---|
| Primary Product Type | Hollow Plastic Components |
| Common Material | High-Density Polyethylene (HDPE) |
| Production Capability | High-Volume Manufacturing |
| Typical Product Weight | Small Containers to Large Tanks |
| Major Industries | Packaging, Automotive, Consumer Goods |
| Automation Trend | Increasing Industry Adoption |
Why Extrusion Blow Molding Matters
The process supports mass production while maintaining consistent wall thickness, dimensional accuracy, and material efficiency. It is widely used because it can produce complex hollow shapes that are difficult to manufacture using other methods.
Understanding the Extrusion Blow Molding Process
Extrusion blow molding combines extrusion technology with controlled air expansion.
Simple Explanation
First, plastic material is heated until it becomes molten. The machine then extrudes the material into a hollow tube. A mold closes around the tube, and compressed air inflates it until it conforms to the mold shape. After cooling, the finished product is removed.
This process allows manufacturers to create thousands of identical products efficiently.
How an Extrusion Blow Molding Machine Works
Step 1: Plastic Material Feeding
Plastic resin enters the machine through a hopper and moves toward the extrusion system.
Step 2: Plastic Melting
The extruder heats and melts the material using controlled temperatures.
Step 3: Parison Formation
Molten plastic exits through a die head, creating a hollow tube called a parison.
Step 4: Mold Closing
The mold closes around the parison.
Step 5: Air Inflation
Compressed air expands the parison against the mold walls.
Step 6: Cooling Process
The molded product cools and solidifies.
Step 7: Product Ejection
The finished product is removed for trimming and inspection.
Extrusion Blow Molding Workflow Table
| Stage | Purpose |
|---|---|
| Material Feeding | Supplies plastic resin |
| Melting | Converts resin into molten plastic |
| Extrusion | Forms parison |
| Mold Clamping | Creates product shape |
| Air Inflation | Expands material |
| Cooling | Solidifies product |
| Ejection | Removes finished part |
Extrusion Blow Molding Machine Architecture
Understanding machine architecture helps explain production efficiency and product quality.
Extruder System
The extruder melts and transports plastic material through the machine.
Die Head Assembly
The die head forms the parison and influences wall thickness distribution.
Mold System
The mold determines the final shape and dimensions of the product.
Clamping Unit
The clamping system keeps the mold securely closed during production.
Air Delivery System
Compressed air expands the molten plastic inside the mold cavity.
Cooling System
Cooling channels help solidify the product efficiently.
Control System
The control unit manages temperature, pressure, timing, and production cycles.
Main Components of an Extrusion Blow Molding Machine
| Component | Function |
|---|---|
| Hopper | Feeds raw material |
| Extruder Screw | Melts and transports plastic |
| Barrel | Houses extrusion process |
| Die Head | Forms parison |
| Mold | Shapes product |
| Clamp Unit | Holds mold closed |
| Air System | Inflates parison |
| Cooling System | Controls temperature |
| Controller | Manages machine operations |
Types of Extrusion Blow Molding Machines
Continuous Extrusion Blow Molding Machines
These machines continuously produce parisons while molds operate in sequence.
Advantages
- High production output
- Continuous manufacturing
- Suitable for large-scale operations
Intermittent Extrusion Blow Molding Machines
Parisons are produced at specific intervals.
Advantages
- Better control
- Suitable for larger products
- Flexible production settings
Accumulator Head Blow Molding Machines
These machines store molten plastic before releasing it into the die.
Advantages
- Suitable for large hollow products
- Consistent material flow
- Better wall thickness control
Machine Type Comparison
| Machine Type | Production Style | Typical Applications |
|---|---|---|
| Continuous | Ongoing Production | Bottles and Containers |
| Intermittent | Controlled Cycles | Medium-Sized Products |
| Accumulator Head | High Material Volume | Tanks and Large Containers |
Common Materials Used
High-Density Polyethylene (HDPE)
Widely used for bottles, containers, and tanks.
Low-Density Polyethylene (LDPE)
Used for flexible packaging products.
Polypropylene (PP)
Suitable for various industrial applications.
Polyvinyl Chloride (PVC)
Used for specialized container production.
PETG
Used in selected packaging applications.
Material Comparison Table
| Material | Durability | Chemical Resistance | Common Uses |
|---|---|---|---|
| HDPE | High | Excellent | Bottles, Tanks |
| LDPE | Moderate | Good | Flexible Containers |
| PP | High | Good | Industrial Products |
| PVC | High | Excellent | Specialized Containers |
| PETG | Good | Moderate | Packaging |
Benefits and Advantages
Efficient Production
Extrusion blow molding supports high-volume manufacturing.
Material Flexibility
Various thermoplastics can be processed.
Complex Hollow Shapes
The process creates products that are difficult to manufacture using other methods.
Consistent Product Quality
Automation supports repeatable results.
Lightweight Product Manufacturing
Products maintain strength while minimizing material usage.
Fiber vs CO₂ Laser Comparison? Why It Doesn't Apply
A common manufacturing question involves comparing production technologies. However, extrusion blow molding and laser processing serve completely different purposes. Blow molding creates hollow plastic products, while laser systems perform cutting, marking, or engraving operations.
Understanding the distinction helps manufacturers select appropriate technologies for specific applications.
Industry Applications
Packaging Industry
Plastic bottles and containers.
Automotive Industry
Fuel tanks, ducts, and reservoirs.
Consumer Products
Household containers and storage products.
Chemical Industry
Industrial chemical containers.
Agriculture
Storage tanks and utility containers.
Medical Packaging
Selected packaging applications.
Industry Applications Table
| Industry | Common Products |
|---|---|
| Packaging | Bottles, Containers |
| Automotive | Fuel Tanks |
| Agriculture | Water Tanks |
| Chemical | Storage Drums |
| Consumer Goods | Household Containers |
| Industrial | Utility Tanks |
Common Challenges and Solutions
| Challenge | Practical Solution |
|---|---|
| Uneven Wall Thickness | Optimize die settings |
| Flash Formation | Improve mold alignment |
| Material Waste | Refine process controls |
| Cooling Variations | Enhance cooling design |
| Surface Defects | Adjust processing parameters |
| Production Variability | Maintain machine calibration |
Environmental Considerations
Material Efficiency
Modern machines help optimize material utilization.
Recycling Compatibility
Many commonly used materials can be reprocessed and reused.
Energy Optimization
Newer systems incorporate energy-efficient technologies.
Production Waste Reduction
Improved controls help reduce scrap generation.
Industry Standards and Safety
Machine Safety Systems
Modern machines incorporate emergency stop systems and protective guarding.
Temperature Control
Proper temperature management improves product quality and operational safety.
Pressure Monitoring
Air pressure systems require continuous monitoring.
Operator Training
Knowledge of machine operation supports safe production environments.
Maintenance Schedule
| Maintenance Task | Frequency |
|---|---|
| Inspect Extruder Screw | Weekly |
| Check Die Head | Weekly |
| Clean Material Path | Weekly |
| Inspect Cooling System | Monthly |
| Verify Air System | Monthly |
| Check Mold Alignment | Monthly |
| Test Safety Features | Periodically |
Best Practices
Monitor Material Quality
Consistent material quality supports reliable production.
Maintain Stable Processing Conditions
Temperature and pressure stability improve product consistency.
Inspect Molds Regularly
Routine inspection helps prevent defects.
Follow Preventive Maintenance
Scheduled maintenance supports long-term performance.
Optimize Cooling Cycles
Efficient cooling improves productivity.
Expert Insights
Manufacturing specialists often consider extrusion blow molding one of the most versatile methods for producing hollow plastic products. The technology balances production efficiency, product consistency, and material flexibility. For packaging and industrial container applications, machine configuration, die head design, and cooling efficiency are among the most important factors influencing product quality.
Facilities that invest in process monitoring, preventive maintenance, and automated controls often achieve better consistency and production efficiency over time.
Future Trends and Industry Insights
Smart Manufacturing Integration
Machines increasingly support Industry 4.0 environments.
Advanced Automation
Automation helps improve production consistency.
Energy-Efficient Systems
Manufacturers continue improving machine efficiency.
Enhanced Process Monitoring
Real-time monitoring improves quality control.
Sustainable Manufacturing
Material optimization and recycling initiatives continue expanding.
Frequently Asked Questions
What is an extrusion blow molding machine?
It is industrial equipment used to manufacture hollow plastic products through extrusion and air inflation.
What products are commonly produced?
Bottles, tanks, containers, drums, reservoirs, and storage products.
What is a parison?
A parison is a hollow tube of molten plastic used during blow molding.
Which materials are commonly used?
HDPE, LDPE, PP, PVC, and PETG are among the most common materials.
Why is extrusion blow molding popular?
It supports efficient production of hollow plastic products with consistent quality.
What industries use this technology?
Packaging, automotive, agriculture, consumer goods, chemical processing, and industrial manufacturing.
What is the role of compressed air?
Compressed air expands the molten plastic against the mold walls.
How does cooling affect product quality?
Proper cooling helps maintain shape, strength, and dimensional stability.
What is an accumulator head machine?
It stores molten plastic before extrusion and is often used for larger products.
What future developments are expected?
Automation, smart controls, energy optimization, and enhanced monitoring technologies.
Conclusion
Extrusion blow molding machines are a cornerstone of modern plastic manufacturing. Their ability to produce hollow products efficiently, consistently, and at scale makes them essential across numerous industries. From packaging containers and fuel tanks to industrial storage systems, the technology continues to support diverse manufacturing needs.
As automation, smart manufacturing, and sustainability initiatives continue to evolve, extrusion blow molding machines are expected to become even more efficient, precise, and adaptable to changing industry requirements.
