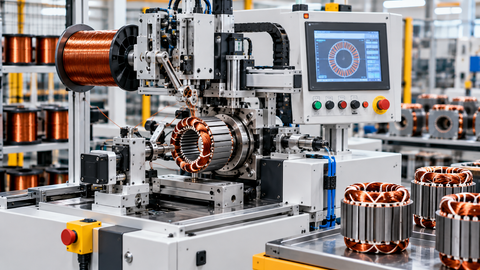

A motor winding machine is industrial equipment used to place insulated conductor wire into defined coils or directly into motor stators.
Depending on the motor design, the system may use needle, flyer, spindle, segment, linear, or specialized winding technology. Modern machines can combine programmable motion, wire-tension control, automatic loading, cutting, lead management, electrical testing, and production traceability. The right configuration depends on motor geometry, conductor type, winding pattern, production volume, and required quality controls.
What Is a Motor Winding Machine?
A motor winding machine is a manufacturing system designed to create the conductor arrangement required for an electric motor's electromagnetic operation. Copper wire or another specified conductor is placed according to a predetermined number of turns, direction, position, sequence, and termination pattern.
The machine is not simply a rotating device. A complete winding system can contain a winding head, wire guides, tension-control equipment, fixtures, servo-driven axes, cutting mechanisms, sensors, programmable controls, and operator interfaces. Some systems are standalone machines, while others form part of integrated stator or motor production lines.
The actual winding method depends heavily on motor construction. A compact concentrated-winding stator may require a different process from a distributed-winding stator. Motors using conventional round wire also require different handling from motors using rectangular conductors or hairpin conductors.
For this reason, machine selection should begin with the motor and winding design rather than with a generic machine category.
How a Motor Winding Machine Works
Although machine architectures vary, most winding processes follow a sequence of controlled operations.
Workpiece Loading
The stator, coil former, segment, rotor component, or other winding structure is positioned in a fixture. In manually assisted equipment, an operator may load and remove the component. Automated systems can use transfer mechanisms, pallets, feeders, conveyors, or robotic handling.
Accurate positioning matters because even a small fixture-location error can influence wire placement, indexing, lead routing, and final coil geometry.
Wire Feeding
The conductor travels from its supply through one or more guides before reaching the winding area. The feeding path must be controlled so the wire reaches the winding head without unnecessary bending, abrasion, or sudden changes in tension.
The insulation on magnet wire is particularly sensitive to mechanical damage, so the wire path should be designed around the conductor specifications and the physical geometry of the machine.
Tension Control
The winding system regulates the force applied to the conductor during the process. Stable tension helps maintain repeatable coil placement and geometry.
Too much tension can place excessive mechanical stress on the conductor or its insulation. Insufficient or unstable tension may create loose winding, inconsistent packing, or irregular coil shape.
Advanced systems may monitor or actively regulate tension throughout the winding cycle.
Winding Movement
The machine coordinates the movement of the winding head, needle, flyer, spindle, fixture, or other axes. The programmed movement determines how the conductor travels around teeth, slots, coil forms, or other winding structures.
Servo-controlled motion is widely used where precise positioning and coordinated multi-axis movement are required.
Turn Counting
The winding program controls the required number of conductor turns. Depending on the machine architecture, counting can be associated with spindle rotation, axis feedback, encoder signals, or other control methods.
Accurate counting is essential because the winding characteristics of the finished motor depend on the specified winding arrangement.
Lead Management
Many winding machines include controlled lead handling. This can involve clamping, routing, holding, wrapping, cutting, or preparing wire ends for later termination.
Poor lead positioning can create problems during insertion, connection, welding, or subsequent assembly operations, even when the winding itself is correctly formed.
Unloading and Inspection
After winding, the completed component is removed from the machine or transferred to the next station. Depending on the production line, additional operations may include coil insertion, forming, lacing, electrical testing, marking, dimensional inspection, and data recording.
Main Types of Motor Winding Machines
Motor winding machines are classified according to the winding method and the motor architecture they support.
| Machine Type | Typical Application | Main Characteristic |
|---|---|---|
| Needle Winding Machine | Stators and compact motor structures | A needle guides the conductor through the required path |
| Flyer Winding Machine | Coils and selected stator arrangements | A rotating flyer guides the wire |
| Spindle Winding Machine | Coils and specialized winding processes | Controlled rotational movement forms the winding |
| Segment Winding Machine | Segmented stators | Individual or grouped segments are wound |
| Linear Winding Machine | Specialized motor architectures | Linear motion is used for particular conductor paths |
| Multi-Strand Winding Machine | Processes requiring multiple parallel conductors | Several conductors are handled in a coordinated process |
| Flat-Wire Winding Equipment | Rectangular conductor applications | Designed around flat or rectangular conductors |
| Hairpin Production Equipment | Hairpin motor architectures | Supports forming, placement, and connection of rigid conductors |
No one machine type is suitable for every motor. Stator access, conductor shape, slot geometry, turn count, end-turn arrangement, and production strategy determine the appropriate technology.
Needle Winding Machine
A needle winding machine uses a winding needle to guide the conductor into the required stator or coil path.
The needle can move through defined positions while the stator, winding head, or other mechanism is coordinated to create the specified winding pattern. This approach is particularly relevant to stators where the winding path requires controlled access between teeth or slots.
Needle winding can provide precise wire placement and programmable process control. However, the physical access available around the stator must match the needle trajectory. The machine therefore has to be evaluated against the actual stator geometry rather than simply against a nominal wire diameter.
Flyer Winding Machine
A flyer winding machine uses a rotating flyer to direct the conductor around the winding area.
The flyer rotates at controlled speed while the workpiece or winding support remains stationary or moves according to the process design. This arrangement can be useful when the workpiece geometry makes direct rotation difficult or when the required winding pattern is more naturally produced through flyer movement.
Important factors include flyer geometry, wire routing, tension control, winding speed, workpiece positioning, and tooling accessibility.
Spindle Winding Machine
A spindle winding machine relies on controlled rotational movement to form a coil. Depending on the exact configuration, the workpiece, coil former, or winding element may rotate around a defined axis.
Spindle-based systems can be highly repeatable when the winding geometry is compatible with rotational processing. They are often evaluated for coil dimensions, wire handling, turn count, winding direction, lead routing, and tooling requirements.
Automatic vs Semi-Automatic Winding Machines
Automation level has a direct effect on operator involvement, process integration, changeover procedures, and production workflow.
| Feature | Semi-Automatic | Fully Automatic |
|---|---|---|
| Loading | Operator-assisted | Automated or integrated |
| Winding | Controlled machine process | Fully programmed process |
| Wire handling | Partially manual | Automated in many configurations |
| Product transfer | Operator or simple mechanism | Integrated transfer possible |
| Recipe control | May be programmable | Usually programmable |
| Traceability | Optional or limited | Can be integrated |
| Line integration | Moderate | High |
| Flexibility | Often useful for varied production | Strong for repeatable high-volume processes |
A fully automatic machine can connect winding with additional operations such as insertion, testing, handling, marking, and traceability.
However, more automation also means more mechanical and control-system complexity. A highly automated machine may not provide a practical advantage when products change frequently and require extensive tooling adjustments.
Core Components of a Motor Winding Machine
Understanding the major components makes machine specifications easier to evaluate.
Winding Head
The winding head is responsible for directing the conductor according to the selected winding process. Its mechanical design determines the available movement, wire path, and compatibility with different winding patterns.
Wire Guide
The wire guide controls the route of the conductor. Its shape, position, surface condition, and alignment are important for maintaining repeatable wire placement and reducing abrasion.
Tensioner
The tensioner regulates wire tension during feeding and winding. A stable tension system is necessary for consistent winding geometry.
Fixture and Tooling
The fixture locates and holds the workpiece. Tooling may include stator fixtures, needles, flyers, clamps, guide assemblies, mandrels, forming tools, and dedicated locating components.
Servo Axes
Servo-driven axes control movement and positioning. Depending on the machine, they may control the winding head, stator indexing, wire guides, spindle rotation, or other coordinated movements.
Cutting Mechanism
The cutting system separates the conductor at the required point. Its condition affects lead length, end preparation, and process consistency.
Clamping System
Clamps hold the wire during specific stages such as starting, stopping, lead formation, transfer, or termination.
PLC and Control System
The control system coordinates machine sequences, sensors, motion, interlocks, alarms, and process recipes.
Human-Machine Interface
The HMI allows operators and technicians to select recipes, review machine status, diagnose alarms, adjust approved parameters, and monitor production information.
Safety System
Guarding, access controls, emergency-stop functions, electrical protection, and interlocking systems help prevent exposure to hazardous machine movement and electrical energy.
Technical Specifications That Matter
Machine specifications should always be evaluated in relation to the motor design.
Conductor Dimensions
Confirm the conductor diameter or cross-sectional dimensions, insulation system, number of strands, and applicable handling requirements.
A system designed for conventional enamelled round wire should not automatically be assumed to support rectangular or hairpin conductors.
Stator Dimensions
Relevant dimensions can include:
- Stator outside diameter
- Bore diameter
- Stack length
- Slot count
- Slot depth
- Tooth width
- Tooth geometry
- Skew configuration
- End-turn space
These dimensions determine whether the tooling and winding head can physically reach all required areas.
Winding Pattern
The machine should support the required:
- Turn count
- Winding direction
- Coil sequence
- Layer configuration
- Indexing
- Lead routing
- Start and end positions
- Parallel-wire configuration, where applicable
Tension Capability
The machine needs a suitable tension-control range for the specified conductor and process. The relevant value is not simply the machine's maximum capability but the usable control range and repeatability for the actual winding process.
Tooling Compatibility
Check whether tooling is standard, interchangeable, or dedicated to a particular motor family. Also consider storage, changeover procedures, calibration requirements, and spare tooling requirements.
Controls and Data
Modern systems may support:
- Recipe management
- Production counters
- Alarm history
- Parameter control
- Operator access levels
- Process-data recording
- Traceability
- Equipment diagnostics
These functions become more valuable as production becomes more automated and quality requirements become more demanding.
Motor Winding Machine Selection Guide
Selecting equipment should follow a structured engineering process.
Define the Motor Architecture
Start with the actual motor design. Identify whether it uses concentrated, distributed, segmented, round-wire, rectangular-wire, hairpin, or another winding structure.
Define the Conductor
Record conductor material, dimensions, insulation type, strand count, and mechanical handling characteristics.
Define the Winding Pattern
Document the exact number of turns, path, direction, layer arrangement, coil grouping, and terminal requirements.
Define the Production Mix
A single high-volume motor variant can justify a dedicated automated system. A production environment with many motor variants may require greater flexibility and simpler tooling changes.
Define Quality Requirements
Determine which characteristics must be verified. These may include:
- Turn count
- Coil position
- Winding geometry
- Conductor insulation condition
- Electrical resistance
- Insulation integrity
- Lead routing
- Terminal position
- Dimensional characteristics
Consider Production-Line Integration
Decide whether the winder needs to connect with:
- Insulation insertion
- Coil insertion
- Coil forming
- Lacing
- Welding
- Electrical testing
- Marking
- Robotic handling
- Traceability systems
Evaluate Changeover
Ask how quickly and consistently the machine can move from one motor variant to another. Physical tooling changes, recipe selection, verification, and first-part approval all affect practical changeover time.
Define Acceptance Criteria
A factory acceptance process should use representative production components and the actual conductor specification. The evaluation should verify machine performance, winding quality, safety functions, documentation, and maintenance requirements.
Winding Quality Control
Correct turn count alone does not prove that the winding process is acceptable.
A good quality-control system examines multiple characteristics.
| Quality Check | Purpose |
|---|---|
| Visual inspection | Identifies routing errors, uneven placement, and visible insulation damage |
| Turn-count verification | Confirms the programmed number of turns |
| Tension monitoring | Detects abnormal conductor-handling conditions |
| Resistance measurement | Helps identify certain winding or connection abnormalities |
| Insulation testing | Checks insulation-system integrity |
| Lead inspection | Confirms correct routing and end preparation |
| Dimensional inspection | Checks coil and end-turn geometry |
| Traceability | Records process history and production identity |
When defects occur, it is useful to isolate the specific process variable involved rather than changing several settings at the same time.
Common Motor Winding Machine Problems
Wire Breakage
Repeated wire breakage can result from excessive tension, damaged guides, sharp contact surfaces, misalignment, unsuitable wire routing, or conductor-related variation.
Inspection should begin with the complete wire path rather than only the winding head.
Loose Winding
Loose winding can result from inadequate tension, incorrect movement coordination, poor wire guidance, or unsuitable process parameters.
The winding pattern should be examined for consistent placement and packing.
Uneven Wire Placement
Uneven placement can result from fixture alignment, incorrect guide positioning, inaccurate indexing, inappropriate movement profiles, or tooling wear.
Insulation Damage
Insulation damage may be associated with excessive contact pressure, worn tooling, rough surfaces, incorrect tension, or wire movement against unsuitable machine components.
Incorrect Turn Count
Possible causes include incorrect recipes, counting errors, interrupted sequences, encoder problems, or control-system issues.
Lead-Length Variation
Lead variation can occur when the cutting or clamping sequence is inconsistent or when the wire path is not properly controlled.
Repeated Machine Alarms
Frequent alarms may originate from sensors, servo systems, pneumatic components, electrical controls, or mechanical positioning. Alarm history and machine diagnostics should be reviewed before process parameters are changed.
Maintenance Practices
Maintenance requirements vary according to machine design, but several practices are common.
Cleaning
Remove wire fragments, insulation debris, dust, and production residue from approved areas. Cleaning procedures should avoid disturbing precision components or calibrated systems.
Wire-Path Inspection
Inspect guides, needles, flyers, clamps, and other conductor-contact surfaces for wear. Small surface defects can influence wire handling.
Tension-System Maintenance
Check tension-control components for contamination, wear, and calibration requirements.
Mechanical Inspection
Inspect fixtures, moving assemblies, fasteners, belts, bearings, and other mechanical components according to the manufacturer's maintenance schedule.
Servo and Motion Checks
Positioning accuracy can deteriorate when mechanical components wear or when calibration changes. Motion systems should be checked according to the machine's maintenance procedures.
Tooling Inspection
Winding needles, flyers, guide components, clamps, and cutting devices are process-critical. Replacing worn tooling before it begins damaging conductors can prevent repeated production defects.
Parameter Backup
Validated machine programs and production recipes should be backed up and controlled. Unplanned parameter changes can create avoidable process variation.
Safety Considerations
Motor winding equipment can combine rotating mechanisms, moving axes, sharp machine components, electrical systems, compressed air, and conductor-handling mechanisms.
Safety design should consider:
- Machine guarding
- Access interlocking
- Emergency-stop functions
- Electrical isolation
- Safe maintenance access
- Pneumatic energy isolation
- Operator training
- Tool-change procedures
- Stored mechanical energy
- Restart prevention
Machinery risk assessment principles are commonly addressed through ISO 12100, while IEC 60204-1 covers electrical equipment of machines. Requirements can vary according to the machine architecture and market in which the equipment is installed.
The finished motor can also fall under relevant rotating-machine requirements, including applicable sections of the IEC 60034 series.
Standards should be checked against the actual equipment, installation, motor design, and jurisdiction rather than applied as a generic checklist.
Budget and Ownership Factors
The financial evaluation of a motor winding system should consider the complete production arrangement rather than the machine alone.
Relevant factors include:
- Winding technology
- Number of winding stations
- Automation level
- Servo and control architecture
- Dedicated tooling
- Automatic loading
- Automatic unloading
- Electrical testing
- Inspection equipment
- Traceability
- Installation
- Commissioning
- Training
- Spare tooling
- Replacement components
- Facility requirements
- Production-line integration
A simpler machine may require more operator involvement, while a highly automated line may require greater engineering and integration effort.
The correct comparison should therefore consider total production requirements and long-term maintenance needs rather than only the initial equipment figure.
Limitations of Motor Winding Machines
Motor winding systems provide repeatable production, but they also have limitations.
Product-Specific Tooling
Different motor geometries may require dedicated fixtures, winding heads, needles, flyers, or guides.
Conductor Sensitivity
Insulated magnet wire can be damaged by unsuitable tension, abrasion, poor alignment, or worn tooling.
Technical Complexity
Highly automated systems may involve servo drives, PLCs, sensors, pneumatics, mechanics, electrical controls, and data systems. Troubleshooting can therefore require multiple technical skills.
Changeover Requirements
Programmability does not eliminate physical tooling changes. New motor variants may still require setup, validation, and process qualification.
Integration Dependency
When winding is connected to several downstream processes, a problem at another production station can interrupt the entire workflow.
Machine-Specific Performance
Production speed, conductor range, and automation capabilities vary by machine configuration. Published specifications should therefore be treated as equipment-specific rather than universal.
Round-Wire Winding vs Flat-Wire and Hairpin Processes
Round-wire winding and flat-wire or hairpin manufacturing involve different conductor-handling requirements.
| Factor | Round-Wire Winding | Flat-Wire / Hairpin Processing |
|---|---|---|
| Conductor shape | Flexible round conductor | Rectangular or formed conductor |
| Main handling challenge | Tension and controlled placement | Forming, positioning, insertion, and joining |
| Typical equipment | Needle, flyer, spindle, and related winding systems | Specialized forming, linear, insertion, and connection systems |
| Tooling | Guides, needles, flyers, fixtures | Forming and positioning tooling |
| Process character | Continuous wire placement | Often includes discrete conductor forming and connection steps |
The correct equipment depends on the electrical design, conductor geometry, slot architecture, and intended manufacturing process.
Where Motor Winding Machines Are Used
Motor winding equipment is used in many electric-motor manufacturing applications.
Examples include:
- Industrial motors
- Brushless DC motors
- Appliance motors
- Fan motors
- Pump motors
- Power-tool motors
- Small precision motors
- Automotive auxiliary motors
- Traction-related motor systems
- Specialized electromechanical assemblies
- Electrification-related motor platforms
The required winding method can differ substantially between these applications. Motor size alone is not sufficient to determine the appropriate machine.
Emerging Motor Winding Technologies
Motor manufacturing is moving toward more integrated and adaptable production systems.
Modern winding systems may combine programmable servo motion, controlled wire tension, automated handling, electrical testing, production-data collection, and traceability.
Another development area is support for specialized motor architectures. Equipment manufacturers increasingly provide technologies for different winding topologies, multi-strand conductors, rectangular conductors, linear winding, segmented stators, and other specialized motor designs.
Greater automation also creates opportunities for process monitoring. Recording winding parameters, production results, alarms, and traceability information can make it easier to identify process variation and connect quality results with specific production conditions.
The practical objective is not simply higher machine speed. It is controlled and repeatable production with suitable process monitoring, quality verification, and efficient integration.
Practical Procurement Checklist
Before selecting a motor winding machine, the following questions should be answered:
- What exact motor architecture will be produced?
- What conductor dimensions and insulation characteristics are required?
- What is the winding pattern?
- What is the required number of turns?
- Which winding technology fits the stator geometry?
- What wire-tension control is required?
- What tooling and fixtures are necessary?
- How will wire breaks be detected?
- What electrical tests are required?
- What dimensional checks are required?
- How frequently will product variants change?
- What level of automation is appropriate?
- Which downstream operations should be integrated?
- What traceability information is required?
- What safety functions are required?
- What maintenance capabilities and spare components are needed?
A detailed engineering specification should define the required process window, quality criteria, tooling, controls, safety functions, and acceptance tests.
Frequently Asked Questions
What does a motor winding machine do?
A motor winding machine places insulated conductor wire into a defined winding pattern for an electric motor. Depending on the machine, it can also control tension, count turns, manage leads, cut wire, and connect with later manufacturing processes.
What are the main types of motor winding machines?
Common types include needle winding, flyer winding, spindle winding, segment winding, linear winding, multi-strand winding, and specialized equipment for flat-wire or hairpin motor architectures. The suitable type depends on the motor's physical and electrical design.
What is a needle winding machine?
A needle winding machine uses a controlled winding needle to guide conductor wire into the required stator or coil path. The needle trajectory must match the geometry and access limitations of the component being wound.
What is a flyer winding machine?
A flyer winding machine uses a rotating flyer to guide the conductor during the winding process. This approach can be useful for coil and motor geometries where flyer movement is suitable for the required winding path.
Can one winding machine produce multiple motor models?
Some programmable winding machines can handle multiple motor variants. The practical range depends on stator dimensions, conductor specifications, winding patterns, tooling compatibility, and the machine's motion envelope.
Why is wire tension important in motor winding?
Wire tension affects how consistently the conductor is positioned. Excessive tension may stress or damage the conductor and its insulation, while insufficient control can lead to loose or irregular winding.
What causes wire breakage during winding?
Possible causes include excessive tension, worn guides, damaged tooling, unsuitable wire routing, alignment problems, incorrect process parameters, or conductor variation. Troubleshooting should examine the entire wire path.
Does an automatic motor winding machine require maintenance?
Yes. Automated winding equipment still requires cleaning, inspection, tooling checks, calibration, mechanical maintenance, electrical checks, and controlled backup of machine programs and recipes.
What should be inspected after winding?
Depending on the motor specification, inspection may include turn count, winding position, coil geometry, conductor condition, electrical resistance, insulation integrity, lead routing, and dimensional characteristics.
Which standards are relevant to winding machines?
The applicable requirements depend on the equipment and installation. ISO 12100 is associated with machinery risk assessment and risk reduction, while IEC 60204-1 addresses electrical equipment of machines. Applicable rotating-machine requirements can involve the IEC 60034 series.
Conclusion
A motor winding machine is a process-specific industrial system rather than a one-size-fits-all production tool. Needle, flyer, spindle, segment, linear, round-wire, flat-wire, and hairpin technologies address different manufacturing requirements. Effective selection starts with the motor architecture, conductor characteristics, winding pattern, quality requirements, production mix, tooling, and desired automation level. The final system should provide controlled wire placement, repeatable winding geometry, suitable inspection, reliable maintenance access, and appropriate safety measures.
