A foam cutting machine is industrial equipment used to cut foam materials into specified shapes, dimensions, profiles, and sections. Foam is used across many manufacturing activities because it can provide cushioning, insulation, sound absorption, sealing, or structural support. Different foam materials require different cutting methods, so machines are designed around the material properties and the required shape.
Context
Foam cutting developed from manual knives, saws, and templates into mechanical and computer-controlled systems. Modern equipment can combine moving blades, heated wires, rotary tools, or computer-controlled cutting paths to produce repeatable shapes.
The term form cutting generally refers to producing a particular profile or three-dimensional shape rather than simply dividing a large foam block into smaller pieces. Depending on the machine design, cutting may be performed through straight lines, contours, profiles, or programmed paths.
Common materials processed by foam cutting equipment include polyurethane foam, polyethylene foam, expanded polystyrene, extruded polystyrene, and other cellular materials. The appropriate cutting method depends on density, thickness, structure, shape, and the characteristics required in the finished piece.
How foam cutting works
The basic process involves positioning the foam, moving a cutting element through the material, and controlling the cutting path. Some machines move the material while the cutting element remains fixed, while others move the cutting head across a stationary work surface.
Computer numerical control can be used when detailed shapes or repeated profiles are required. A digital design is converted into machine movements, allowing the cutting head to follow programmed coordinates.
The cutting method affects the resulting edge, dimensional consistency, production speed, and suitability for different foam types. For this reason, machine selection generally begins with the material and the required finished geometry rather than with the machine name alone.
Importance
Foam is used in packaging components, furniture, mattresses, automotive interiors, protective padding, insulation products, acoustic products, sports equipment, and various industrial components. Many of these applications require foam pieces with consistent dimensions or specialized profiles.
Manual cutting can be appropriate for simple shapes and limited quantities, but repeated production can require greater control over dimensions and cutting paths. Foam cutting machines help organize these operations by combining material handling, cutting mechanisms, and motion control.
Production challenges
Several factors can affect foam cutting results:
Foam density and cellular structure can change how the cutting element moves through the material.
Material thickness can determine the required cutting capacity.
Complex profiles may require multiple axes of movement.
Heat-sensitive materials may not be suitable for heated cutting methods.
Blade condition can influence edge quality.
Incorrect machine settings can produce deformation or uneven edges.
Dust and small particles may require appropriate workplace controls.
The required production method therefore depends on the characteristics of the foam and the intended application.
Main machine types
Foam cutting machines can be grouped according to their cutting mechanism and movement system. Each type is suited to particular shapes and materials.
| Machine type | Main cutting method | Typical use |
|---|---|---|
| Horizontal foam cutter | Horizontal blade or cutting system | Block splitting and sheet production |
| Vertical foam cutter | Vertical blade | Straight sections and profile cutting |
| Band knife cutter | Continuous band blade | Furniture and upholstery components |
| Hot wire cutter | Heated wire | Polystyrene and selected foam materials |
| CNC foam cutter | Computer-controlled cutting head | Programmed shapes and profiles |
| Contour cutter | Controlled blade or wire path | Curved and shaped components |
| Multi-axis cutter | Multiple coordinated axes | Complex three-dimensional forms |
Horizontal and vertical cutting
Horizontal cutting machines are commonly associated with dividing large foam blocks into sheets or layers. The cutting arrangement allows a large block to pass through the cutting zone at a controlled position.

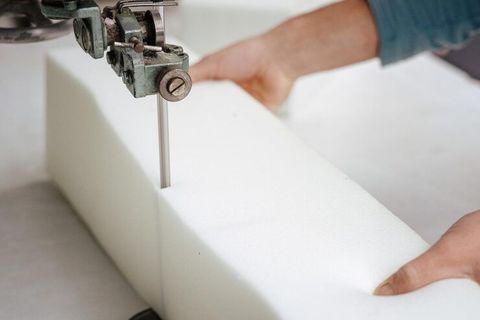

Vertical foam cutters use a blade that moves vertically through the material. They can be used for cutting sheets, blocks, strips, and profiles where a vertical cutting path is appropriate.
Band knife machines
A band knife cutter uses a continuous loop of blade that travels around wheels. The operator or automated material-handling system guides foam through the cutting area.
Band knife systems are often associated with upholstery, furniture, and mattress-related production because they can follow contours and cut multiple types of foam components when configured appropriately.
Hot wire and contour cutting
Hot wire cutting uses an electrically heated wire to pass through suitable foam materials. The heat allows the wire to separate the material along the selected path.
This method is commonly associated with expanded or extruded polystyrene. It is not appropriate for every foam material because different materials respond differently to heat and may produce fumes or residues during thermal cutting.
Contour cutting machines are designed to create curved or shaped profiles. Depending on the equipment, the cutting element may be a blade, wire, or another specialized tool controlled along one or more axes.
Recent Updates
Recent developments in foam cutting have generally focused on automation, computer-controlled movement, digital design integration, and improved material handling. CNC systems allow production data to be translated into programmed cutting paths, reducing the need to create a separate physical template for every shape.
Digital workflows have also become more common. CAD files can be prepared as production patterns and transferred into compatible cutting software, although the exact workflow depends on the machine and software configuration.
Automation and digital control
Automated foam cutting systems can incorporate sensors, programmable motion, automatic positioning, and material-handling functions. These features can reduce manual alignment tasks and make repeated production more consistent.
Software is another important area of development. Modern control systems may include nesting functions that arrange multiple shapes within a sheet or block to reduce unused material. The effectiveness of nesting depends on the material, shape restrictions, cutting direction, and production requirements.
Multi-axis production
Multi-axis foam cutting equipment is used when a component requires more than a simple two-dimensional profile. Coordinated movement can allow the cutting element to follow angled or curved paths.
This approach is particularly relevant when foam parts are used for shaped cushions, architectural forms, packaging inserts, vehicle components, or other products requiring defined three-dimensional geometry.
Laws or Policies
Foam cutting machinery is subject to workplace safety, machinery, electrical, environmental, and material-handling requirements that vary by jurisdiction. These requirements generally address hazards associated with moving machinery, electrical systems, cutting elements, heat, noise, dust, fumes, and operator access.
Machine guarding is an important consideration where blades, moving components, or other hazardous mechanisms are accessible. Emergency stopping systems, warning labels, maintenance procedures, and operator instructions may also form part of applicable workplace requirements.
Thermal cutting requires additional consideration because heated wires can generate fumes depending on the material being processed. Ventilation and exposure controls may therefore be relevant when foam is cut using heat.
Manufacturing facilities may also have requirements covering electrical installation, workplace ventilation, fire prevention, waste handling, and personal protective equipment. The applicable rules depend on the jurisdiction, workplace conditions, machine configuration, and materials being processed.
Manufacturers and facility operators should use the applicable machinery documentation and current workplace regulations when determining specific compliance requirements. This article provides general information rather than legal or engineering guidance.
Tools and Resources
Several tools can support foam cutting planning, production, and quality control.
CAD and design software
Computer-aided design software can be used to create two-dimensional profiles and three-dimensional foam component models. Digital drawings can provide dimensions, angles, curves, and reference points for programmed cutting.
The software format must be compatible with the machine's control system or its intermediate processing software.
CNC cutting software
CNC software converts design information into machine movements. Depending on the system, it may include functions for tool paths, cutting sequences, nesting, material settings, and production files.
The actual capabilities vary considerably between machines, so the machine documentation should be used when configuring a particular workflow.
Measurement tools
Basic measurement equipment remains important even when production is automated. Common tools include:
Measuring tapes for larger dimensions
Vernier calipers for smaller dimensions
Steel rulers for straight measurements
Angle gauges for profile verification
Templates for shape comparison
Digital measurement systems for selected production environments
Production records
A production record can contain the material type, density, dimensions, cutting pattern, machine settings, inspection results, and production quantity. Such records can help identify differences between production runs and provide a structured way to document process information.
FAQs
What is a foam cutting machine used for?
A foam cutting machine is used to divide foam blocks or sheets and produce specific shapes, profiles, and dimensions. Applications include packaging components, cushions, mattresses, insulation products, acoustic materials, and industrial foam parts.
Which foam cutting machine is suitable for form cutting?
The appropriate machine depends on the foam material and the required shape. CNC contour cutters, band knife systems, hot wire machines, and multi-axis foam cutters can each perform different forms of profile cutting.
How does a CNC foam cutting machine work?
A CNC foam cutting machine receives programmed dimensional information and converts it into controlled movement of the cutting mechanism. The cutting head follows a defined path to create the programmed shape.
Can a hot wire foam cutting machine cut all foam materials?
No. Hot wire cutting is intended for materials that can be appropriately processed with a heated wire. Some foams are unsuitable for thermal cutting because of their physical or chemical characteristics and the fumes that may be generated.
What are the main components of a foam cutting machine?
Common components include a frame, worktable, cutting mechanism, drive system, motors, control unit, material guides, and safety equipment. CNC machines may also include a computer interface, motion controllers, sensors, and dedicated cutting software.
