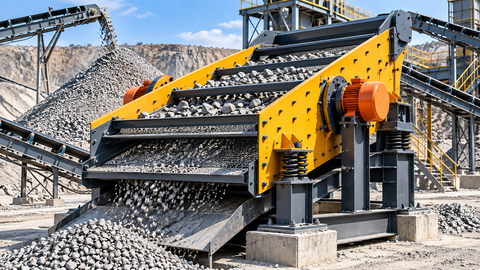

Vibrating screens are industrial machines used to separate, classify, and size materials by passing them across a vibrating screening surface.
They are widely used in mining, aggregates, recycling, food processing, chemical production, and other industries where efficient material separation is required.
The combination of vibration, screen media, and controlled material movement allows vibrating screens to process large volumes of material while improving product quality and operational efficiency.
Quick Facts About Vibrating Screens
| Feature | Description |
|---|---|
| Primary Function | Material separation and classification |
| Separation Method | Vibration and screen openings |
| Common Industries | Mining, aggregates, recycling, chemicals, food processing |
| Material Types | Dry solids, granular materials, ores, minerals |
| Screening Levels | Single-deck or multi-deck |
| Motion Types | Linear, circular, elliptical |
| Main Components | Screen deck, drive system, exciters, frame |
| Typical Purpose | Sizing, scalping, dewatering, classification |
What Is a Vibrating Screen?
A vibrating screen is a mechanical screening device designed to separate materials based on particle size. Material is fed onto a screen surface containing openings of a specific size. Vibrations move the material across the screen while allowing smaller particles to pass through the openings.
The equipment is commonly installed in processing plants where raw materials must be classified into different size fractions before further processing, transportation, storage, or packaging.
Why Vibrating Screens Matter
Material sizing directly affects production efficiency, product consistency, and downstream equipment performance. Improper classification can reduce processing efficiency and increase operational costs.
Vibrating screens help industries:
- Improve product quality
- Increase processing efficiency
- Remove oversized materials
- Prepare materials for crushing or grinding
- Recover valuable products
- Reduce waste streams
- Support automated production systems
Many industrial facilities rely on vibrating screens as one of the first stages of material processing because accurate separation influences every subsequent operation.
Understanding the Vibrating Screen Concept
Simple Explanation
Imagine pouring mixed gravel through a kitchen sieve. Smaller stones pass through the holes while larger stones remain on top. A vibrating screen performs the same basic function on an industrial scale.
The vibration continuously moves material across the screening surface, preventing clogging and helping particles find openings through which they can pass. Larger particles continue toward the discharge end while smaller particles fall through the screen.
How Vibrating Screens Work
Material Feeding
Raw material enters the screen through a feed chute or conveyor system. Even distribution across the screen surface helps achieve consistent separation.
Vibration Generation
An electric motor drives eccentric weights or exciters that create controlled vibrations. These vibrations cause the screen deck to move in a specific pattern.
Material Stratification
As material vibrates, smaller particles naturally migrate downward through the material bed while larger particles rise toward the top.
Particle Screening
Particles smaller than the screen openings pass through the mesh. Larger particles remain above the screen surface.
Material Conveyance
The vibration motion transports material along the screen deck toward discharge points.
Product Collection
Separated material fractions are collected through different discharge chutes for further processing or storage.
Vibrating Screen Workflow Table
| Process Stage | Function |
|---|---|
| Feeding | Introduce material onto screen |
| Vibration | Create particle movement |
| Stratification | Arrange particles by size |
| Screening | Separate particles through openings |
| Conveyance | Move material across deck |
| Collection | Gather separated fractions |
| Discharge | Transfer products downstream |
Vibrating Screen Construction and Architecture
Screen Deck
The screen deck provides the screening surface where separation occurs. It may contain woven wire mesh, perforated plates, polyurethane panels, or rubber media.
Vibratory Drive System
The drive system generates the vibration required for material movement and classification.
Exciters or Eccentric Mechanisms
These components convert rotational energy into controlled vibratory motion.
Screen Frame
The frame supports the deck and withstands continuous vibration loads.
Springs and Suspension System
Springs isolate vibration from surrounding structures and maintain stable operation.
Feed and Discharge Areas
These sections control material entry and exit while maintaining process efficiency.
Main Components of a Vibrating Screen
| Component | Purpose |
|---|---|
| Screen Media | Separates particles by size |
| Drive Motor | Powers vibration |
| Exciter Assembly | Generates vibratory motion |
| Screen Deck | Supports screening surface |
| Springs | Absorb and isolate vibration |
| Frame Structure | Supports equipment |
| Feed Chute | Distributes incoming material |
| Discharge Chute | Removes separated products |
Types of Vibrating Screens
Circular Vibrating Screens
Circular vibrating screens generate a circular motion pattern and are widely used for general material classification.
Advantages:
- Simple design
- Reliable operation
- Suitable for various materials
- High throughput capability
Linear Vibrating Screens
Linear screens move material in a straight-line path and are commonly used for precise sizing and dewatering.
Advantages:
- Accurate separation
- Efficient material transport
- Suitable for fine screening
- Effective moisture removal
Elliptical Vibrating Screens
Elliptical screens combine characteristics of circular and linear motion.
Advantages:
- Flexible screening performance
- Improved material movement
- Enhanced screening efficiency
- Suitable for challenging materials
High-Frequency Vibrating Screens
These screens operate at higher vibration frequencies and are often used for fine particle separation.
Advantages:
- Fine classification capability
- Improved screening of small particles
- Compact installation options
Dewatering Screens
Designed specifically to remove water from processed materials.
Advantages:
- Moisture reduction
- Improved material handling
- Better downstream processing
Vibrating Screen Type Comparison
| Type | Motion Pattern | Common Use | Key Advantage |
|---|---|---|---|
| Circular | Circular | General sizing | High capacity |
| Linear | Straight line | Fine classification | Precise separation |
| Elliptical | Elliptical | Mixed applications | Flexible performance |
| High-Frequency | Rapid vibration | Fine materials | Enhanced fine screening |
| Dewatering | Specialized motion | Moisture removal | Water reduction |
Material and Operating Requirements
Successful screen performance depends on several material characteristics and operating conditions.
Important factors include:
- Particle size distribution
- Material density
- Moisture content
- Feed rate consistency
- Screen opening selection
- Desired product size
- Material abrasiveness
- Operating environment
Selecting the proper screen configuration helps maintain efficiency and reduce wear.
Vibrating Screens vs Trommel Screens
| Feature | Vibrating Screen | Trommel Screen |
|---|---|---|
| Screening Surface | Flat deck | Rotating drum |
| Motion Type | Vibration | Rotation |
| Fine Screening | Excellent | Moderate |
| Throughput | High | Moderate |
| Maintenance Access | Easier | More complex |
| Wet Material Handling | Application dependent | Often suitable |
| Footprint | Compact | Larger |
Vibrating screens are often chosen for high-capacity sizing and precise classification, while trommel screens are frequently used for waste processing, composting, and certain bulk material applications.
Benefits and Advantages of Vibrating Screens
- High material processing capacity
- Accurate particle separation
- Reduced downstream equipment load
- Flexible configuration options
- Support for multiple product sizes
- Continuous operation capability
- Compatibility with automation systems
- Efficient material classification
- Adaptability to many industries
- Improved overall plant productivity
Industry Applications of Vibrating Screens
Mining Operations
Mining facilities use vibrating screens to classify ore, remove oversized material, and prepare feed for crushing and grinding circuits.
Aggregate Production
Quarries use screens to produce construction aggregates in specific size ranges required for infrastructure projects.
Recycling Facilities
Recycling operations separate metals, plastics, glass, and construction debris into usable fractions.
Chemical Processing
Chemical plants classify raw materials and intermediate products to maintain product consistency.
Food Processing
Food manufacturers use specialized vibrating screens to classify ingredients, remove contaminants, and ensure product uniformity.
Mineral Processing
Mineral processing facilities use vibrating screens throughout concentration and beneficiation circuits.
Waste Management
Waste processing facilities use screens to sort and recover reusable materials from mixed waste streams.
Industry Applications Table
| Industry | Typical Application |
|---|---|
| Mining | Ore classification |
| Aggregates | Stone sizing |
| Recycling | Material sorting |
| Chemicals | Product classification |
| Food Processing | Ingredient screening |
| Minerals | Beneficiation support |
| Waste Management | Resource recovery |
Industry Standards and Safety
Vibrating screens are generally designed and operated within broader machinery, safety, and industrial equipment requirements.
Commonly applicable standards and practices include:
- ISO 12100 for machinery safety principles
- ISO 13849 for safety-related control systems
- IEC 60204-1 for electrical equipment of machinery
- Lockout and isolation procedures during maintenance
- Machine guarding requirements
- Dust control measures where applicable
- Noise exposure management programs
Facilities should follow local regulations and site-specific safety procedures when operating screening equipment.
Common Vibrating Screen Challenges and Solutions
| Challenge | Potential Solution |
|---|---|
| Screen blinding | Use appropriate screen media |
| Uneven material distribution | Improve feed arrangement |
| Excessive wear | Select wear-resistant materials |
| Reduced throughput | Optimize operating parameters |
| Vibration issues | Inspect drive components |
| Moisture-related blockage | Use dewatering or suitable media |
| Structural fatigue | Conduct regular inspections |
How to Choose a Vibrating Screen
| Selection Factor | Consideration |
|---|---|
| Material Type | Abrasive, fine, coarse, wet or dry |
| Required Capacity | Desired production rate |
| Product Size | Target separation sizes |
| Moisture Content | Dry or wet processing |
| Available Space | Installation constraints |
| Maintenance Access | Inspection and servicing needs |
| Number of Products | Single or multiple fractions |
| Operating Environment | Dust, temperature, and conditions |
Maintenance Best Practices
Regular maintenance helps maintain screening performance and equipment reliability.
Recommended practices include:
- Inspect screen media routinely
- Monitor vibration characteristics
- Check fasteners and structural connections
- Lubricate components according to manufacturer recommendations
- Examine springs and suspension systems
- Inspect drive assemblies for wear
- Clean buildup from screening surfaces
- Monitor material flow patterns
- Replace damaged components promptly
Limitations of Vibrating Screens
Despite their effectiveness, vibrating screens have limitations.
Very fine materials may require specialized screening technologies. Sticky or highly moist materials can reduce screening efficiency and increase clogging risks. Continuous vibration also creates wear on screen media and mechanical components, requiring regular maintenance.
Some applications may require multiple screening stages to achieve the desired particle size distribution, increasing system complexity.
Future Trends in Vibrating Screen Technology
Industrial screening systems continue to evolve through improved materials, monitoring technologies, and automation.
Emerging developments include:
- Condition monitoring systems
- Predictive maintenance tools
- Advanced screen media materials
- Improved energy efficiency
- Enhanced vibration control systems
- Integration with industrial automation platforms
- Data-driven performance optimization
These developments focus on improving reliability, maintenance planning, and overall screening performance.
Frequently Asked Questions About Vibrating Screens
What is the main purpose of a vibrating screen?
A vibrating screen separates materials according to particle size. It allows smaller particles to pass through screen openings while larger particles remain on the surface and move toward discharge points.
How does vibration improve screening efficiency?
Vibration keeps material moving across the screen surface and helps particles contact screen openings. It also reduces the likelihood of material buildup and blockage.
What industries commonly use vibrating screens?
Mining, aggregates, recycling, chemical processing, mineral processing, food production, and waste management industries commonly use vibrating screens.
What is screen blinding?
Screen blinding occurs when particles become lodged in screen openings, reducing effective screening area and lowering separation efficiency.
What is the difference between a circular and linear vibrating screen?
Circular screens use circular motion and are often selected for general classification. Linear screens use straight-line motion and are frequently chosen for fine screening and dewatering applications.
Can vibrating screens handle wet materials?
Yes, certain vibrating screens are designed to process wet materials. Dewatering screens are specifically engineered to remove moisture from processed products.
What determines screening accuracy?
Screen opening size, vibration characteristics, feed consistency, material properties, and screen media selection all influence screening accuracy.
Why are multiple screen decks used?
Multiple decks allow a single machine to separate material into several size fractions simultaneously, improving processing efficiency.
How often should screen media be inspected?
Inspection frequency depends on operating conditions, material abrasiveness, and production demands. Regular inspections help identify wear before performance declines.
Are vibrating screens used in automated plants?
Yes. Modern vibrating screens are commonly integrated into automated processing systems and connected to plant monitoring and control platforms.
Conclusion
Vibrating screens are essential industrial separation machines that classify materials according to particle size through controlled vibratory motion. Their ability to process large volumes of material, support multiple industries, and deliver consistent product sizing makes them a critical component of modern processing plants. Proper selection, maintenance, and operation help maximize screening performance while supporting efficient and reliable material handling.
