A human machine interface (HMI) is the screen, panel or software that lets an operator see what a machine or process is doing and control it.
In industry, an HMI usually connects to a PLC, shows real-time data and alarms, and sends operator commands back. Common types are panel HMIs, PC-based HMIs and web-based HMIs.
HMI Quick Facts
| Item | Detail |
|---|---|
| Full form | Human Machine Interface |
| Other names | Operator interface, operator panel, machine interface |
| Main job | Display machine status and accept operator input |
| Usually connected to | PLC, drives, sensors or other controllers |
| Main types | Panel HMI, PC-based HMI, web-based or remote HMI |
| Typical scope | One machine or one local process area |
| Common connections | Ethernet, RS-232, RS-485, USB |
| Common protocols | Modbus, PROFINET, EtherNet/IP, CANopen, OPC UA, MQTT |
What Is a Human Machine Interface?
Meaning and Scope
An HMI is the hardware and software that let an operator see what a PLC is doing and interact with it without opening the electrical cabinet or reading code. The term can refer to the physical device, the software running on it, or the whole operator interface system.
HMI in the Wider and Industrial Sense
In the widest sense, every switch, dial and touchscreen an operator touches is a human machine interface. In industrial automation, however, the term almost always means a dedicated graphical panel connected to a PLC, showing process status and accepting commands.
How an HMI Works
The HMI Data Loop
- Data collection: Sensors and the PLC gather data from the machine or process.
- Communication: The HMI reads that data from the PLC over a protocol such as Modbus or an Ethernet-based one.
- Processing: The HMI processes the incoming values in real time.
- Visualization: Values appear as numbers, trends, graphics, alarms and controls.
- Operator input: The operator starts a machine, changes a setpoint or acknowledges an alarm, and the command goes back to the PLC.
HMI and PLC: Different Jobs
The PLC is the control engine. It executes control logic and physically interacts with the machinery. The HMI presents information and takes input, but without a PLC it has no underlying control logic to run the machine. PLCs are configured with logic-based programming, while HMIs are built with visual tools that design screens.
Main Components of an HMI
| Component | Function |
|---|---|
| Display and touchscreen | Shows data and takes touch input (resistive or capacitive) |
| Processor and operating system | Runs the HMI application on a dedicated panel or PC |
| Communication ports | Ethernet, serial and USB connections to controllers |
| HMI software | Designs screens, alarms, trends and recipes |
| Front panel and enclosure | Protects against dust, water and washdown |
| Physical buttons (optional) | Suit vibration-heavy or dusty environments where touch is unreliable |
Types of HMI
Panel HMI

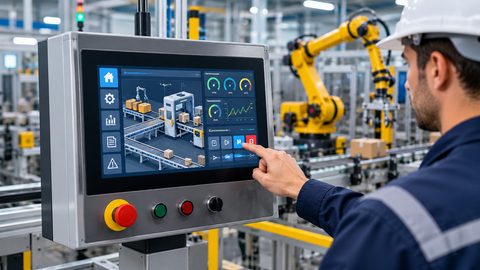

The classic machine-mounted touchscreen or operator panel, often on a cabinet door. Dedicated panels have their own processor and operating system, and they are the most common type for individual machines such as conveyors and packaging lines.
PC-Based HMI and Panel PCs
These run HMI software on an industrial PC or panel PC with Windows or Linux. They suit applications needing more screen space, more processing power, richer visualization or more advanced connectivity. The trade-off is hardware to maintain, such as an operating system and sometimes a fan or disk.
Web-Based and Remote HMI
Web HMIs use HTML5 to run on phones, tablets and PCs, so an operator can monitor from any browser. They are often used for remote visibility alongside a local panel.
PLC-Embedded Web Visualization
Some PLCs serve web screens directly, with no extra hardware. In small and medium installations this can cover the local HMI role and part of what a small SCADA would do.
HMI Type Comparison
| Type | Typical hardware | Best for | Watch out for |
|---|---|---|---|
| Panel HMI | Dedicated touchscreen | Single machines | Limited processing power |
| PC-based HMI | Industrial or panel PC | Rich screens, many connections | OS and hardware maintenance |
| Web/remote HMI | Any browser device | Remote monitoring | Network security |
| PLC-embedded web | Served by the PLC | Small systems | Fewer features |
HMI vs SCADA vs PLC
| Attribute | PLC | HMI | SCADA |
|---|---|---|---|
| Role | Runs control logic | Local operator interface | Supervisory monitoring and data acquisition |
| Scope | One controller | One machine or panel | Multiple machines, a plant or several sites |
| Hardware | Rugged controller | Touch panel or panel PC | Server plus client workstations |
| Users | None directly | Single operator at the panel | Multiple simultaneous clients |
Neither an HMI nor SCADA replaces the PLC. If a SCADA server goes offline, the PLC keeps running. A standalone panel HMI connected directly to one PLC is not part of a SCADA system, although HMIs are often part of larger SCADA setups.
HMI Communication and Connectivity
HMIs connect to controllers through serial ports (RS-232, RS-485) and Ethernet. The most popular protocols are Modbus (RTU and TCP/IP), PROFINET, EtherNet/IP, CANopen and OPC UA, and many modern panels also support MQTT for IIoT use. The right choice depends on the devices the panel must talk to, such as PLCs, inverters or SCADA systems, so confirm native support for your plant's protocols before buying.
Applications of HMI
Manufacturing and Packaging
Operators start and stop machines, monitor production rates, track downtime and alarms, and adjust parameters such as speed, temperature or pressure. Panels are common on packaging machines and robotic cells.
Water and Wastewater Treatment
HMIs show flow, tank levels and pump status, control filtration and chemical dosing, and display trends and alerts, often with remote access.
Food, Beverage and Pharmaceutical
HMIs control mixers, ovens and batch systems, set recipe timers and temperatures, and track cleaning cycles. Washdown and hygiene needs often call for higher-rated or stainless steel panels.
Oil, Gas and Chemical
HMIs monitor and control process equipment. Where flammable atmospheres exist, panels certified for hazardous locations (such as Class I Division 2, ATEX or IECEx) are required.
Building Automation
HMIs control HVAC and other building systems, and with building management systems they let staff manage many functions from one location.
Vehicles and Consumer Systems
Outside factories, the term also covers in-vehicle infotainment and dashboard interfaces, where drivers interact with the vehicle.
HMI Design Best Practices
Screen Layout and Color
ISA-101 is the vendor-neutral standard for HMI design in process automation, and it promotes a high-performance HMI approach. Screens use a grayscale base, with color reserved for abnormal conditions and status. A typical screen hierarchy runs from plant overview to unit overview, unit detail and equipment detail. Design screens around operator tasks, not the PLC's internal tag structure.
Alarm Presentation
Alarm design follows ISA-18.2, which covers alarm philosophy, rationalization and priorities. Rationalize alarms before designing graphics, keep a visible alarm summary on overview screens, and avoid permanently silencing alarms without a documented change review. Poor alarm management is a common cause of HMI failure.
How to Choose an HMI
| Factor | What to check |
|---|---|
| Size and type | Panel, panel PC or web access, and screen size for the task |
| Environment | IP65 front protection is a baseline; higher ratings such as IP66 or NEMA 4X for washdown or corrosion |
| NEMA 4X use | Check whether the rating is indoor-only |
| Hazardous areas | Class I Div 2, ATEX or IECEx if flammable gases or dust exist |
| Hygiene | Stainless steel housings for food and pharmaceutical settings |
| Protocols | Native support for your PLC brand and network |
| Connectivity | Number of Ethernet and serial ports, remote access options |
| Software | Ease of programming and availability of your HMI platform |
| Support | Local service, spares and long-term availability |
Cybersecurity and Maintenance
HMIs on networks need protection. Follow IEC 62443 for network zones, use unique user accounts, change default passwords, avoid shared accounts and keep control networks off the open internet. Back up HMI projects, keep software versions documented and test changes before rollout.
Limitations of HMIs
- An HMI does not control the machine itself, so it depends on a working PLC.
- Dedicated panels have limited processing power, and PC-based units need OS maintenance.
- Poor screen or alarm design overloads operators and can hide real problems.
- Remote and web access raise cybersecurity risks if not secured.
- Panels must match the environment, or dust, water and heat will shorten their life.
Future Trends in HMI Technology
HMIs increasingly support IIoT protocols such as MQTT and OPC UA, edge gateways, dual Ethernet, secure remote access and browser-based screens. Standards-based design and better alarm management continue to shape how operators work with them.
Frequently Asked Questions About HMIs
What is an HMI?
An HMI is the interface, usually a touchscreen panel or software, that lets an operator monitor and control a machine or process, typically through a PLC.
What does HMI stand for?
HMI stands for Human Machine Interface. It is also called an operator interface or operator panel.
What are the main types of HMI?
Panel HMIs, PC-based HMIs and web-based HMIs, plus web screens served directly from some PLCs.
What is the difference between an HMI and a PLC?
The PLC executes control logic and interacts with the machinery. The HMI displays data and accepts operator commands.
What is the difference between HMI and SCADA?
An HMI is a local interface for one machine or panel. SCADA supervises multiple machines or a whole plant, usually on servers.
Which protocols do HMIs use?
Common ones include Modbus RTU and TCP, PROFINET, EtherNet/IP, CANopen, OPC UA and MQTT.
What IP rating should an industrial HMI have?
IP65 on the front is a baseline. Washdown or corrosive areas need higher protection such as IP66 or NEMA 4X.
What is ISA-101?
ISA-101 is a standard for HMI design in process automation, covering screen hierarchy, color use and alarm integration.
Can an HMI work without SCADA?
Yes. A small standalone machine can have its own touch panel with no SCADA behind it.
Conclusion
A human machine interface turns raw controller data into screens an operator can read and act on. Panel, PC-based and web-based types each fit different machines and environments, and good results depend on matching the environment rating, protocols and screen design to the job. Plan alarms and security early, and treat the HMI as part of a system with the PLC, not a replacement for it.
