Laser cladding machines are industrial systems used to apply a layer of material onto the surface of a metal component. The process uses a concentrated heat source, commonly a laser beam, to melt added material and a small portion of the underlying surface. As the molten material cools, it forms a bonded layer that can improve selected surface properties, restore worn dimensions, or provide resistance to particular operating conditions.
Context
Laser cladding machines are industrial systems used to apply a layer of material onto the surface of a metal component. The process uses a concentrated heat source, commonly a laser beam, to melt added material and a small portion of the underlying surface. As the molten material cools, it forms a bonded layer that can improve selected surface properties, restore worn dimensions, or provide resistance to particular operating conditions.
Laser cladding developed alongside advances in industrial lasers, automated manufacturing, and precision metal processing. Earlier surface-treatment methods included thermal spraying, welding overlays, and other techniques for adding protective materials. Laser cladding introduced a more controlled way to deposit material with localized heating, making it useful for components that require carefully managed surface characteristics.
How Laser Cladding Machines Work

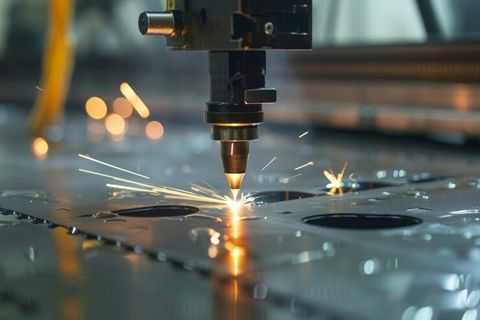

A typical laser cladding machine directs a laser beam toward a metal surface while feeding a suitable material into the heated area. The added material may be supplied as metallic powder or wire, depending on the equipment and application. A motion system moves the laser head or component along a planned path to create a continuous deposited layer.
The main stages include surface preparation, material feeding, laser melting, layer formation, and inspection. Process settings such as laser power, travel speed, feed rate, and shielding gas influence the resulting layer. Correctly balancing these variables helps control bonding, surface shape, porosity, and unwanted mixing with the underlying metal.
Main Types of Laser Cladding Machines
Laser cladding equipment can be classified by its material-feeding method, movement system, and intended application.
Powder-fed systems: Deliver metallic powder into the laser-generated melt pool. They are used for complex shapes, controlled material deposition, and a wide range of surface-treatment tasks.
Wire-fed systems: Feed metal wire into the heated region. Depending on the application, wire feeding can support efficient material use and relatively high deposition rates.
Robotic laser cladding systems: Use industrial robots to move the laser head along programmed paths. They can handle curved surfaces and components with complex geometries.
CNC laser cladding machines: Use computer-controlled axes to guide the laser head or workpiece. They are suitable for repeatable movement along defined paths.
Hybrid manufacturing systems: Combine laser cladding with processes such as machining or other forms of metal deposition. These systems can reduce the need to move components between separate production stages.
The appropriate configuration depends on the component's shape, material, required layer thickness, production volume, and dimensional tolerances.
Importance
Laser cladding machines are important in manufacturing and maintenance because many metal components experience wear, corrosion, heat, friction, or erosion during operation. Replacing an entire component may involve substantial material use and production downtime. In suitable cases, depositing a new surface layer can restore a component or adapt its surface characteristics without manufacturing the entire part again.
Industries that use this technology include aerospace, automotive manufacturing, energy production, mining, heavy machinery, oil and gas equipment, and industrial tooling. The method is particularly relevant where components operate under demanding conditions or contain expensive base materials.
Applications Across Industries
Laser cladding serves different purposes depending on the equipment and deposited material.
Industrial shafts and rollers: Surface layers can restore worn areas and improve resistance to abrasion.
Turbine components: Specialized alloys may be deposited on selected regions that experience heat or wear, subject to component-specific engineering requirements.
Hydraulic components: Cladding can help restore certain surfaces exposed to friction, fluid contact, or repeated movement.
Mining and construction equipment: Wear-resistant layers may help protect selected components exposed to abrasive materials.
Molds and dies: Localized deposition can repair damaged regions or restore dimensions before finishing.
Energy and process equipment: Appropriate deposited alloys can provide resistance to corrosion or elevated temperatures in selected operating environments.
Not every material or component is suitable for laser cladding. Base-metal compatibility, heat sensitivity, component geometry, and the required final properties must be evaluated before processing.
Benefits and Technical Limitations
Laser cladding can produce a metallurgical bond between the deposited layer and the substrate. Compared with some alternative coating processes, it can provide relatively low dilution when process parameters are properly controlled. Dilution describes the extent to which the base material mixes with the deposited material.
Other potential benefits include localized heating, controlled deposition, repair of selected areas, and the ability to apply specialized alloys only where needed. However, results depend on the material combination, equipment configuration, operator knowledge, and inspection process.
Important limitations include equipment complexity, preparation requirements, possible residual stress, distortion, cracking, and porosity. Some components also require additional machining or heat treatment after deposition. These factors mean that suitability must be assessed for each application rather than assumed from the machine type alone.
Comparing Laser Cladding Methods
| Method | Material feed | Common application | Main consideration |
|---|---|---|---|
| Powder-fed cladding | Metallic powder | Complex surfaces and alloy layers | Powder handling and feed consistency |
| Wire-fed cladding | Metal wire | Selected repair and deposition tasks | Wire compatibility and melt-pool control |
| Robotic cladding | Powder or wire | Curved and irregular components | Path programming and access |
| CNC cladding | Powder or wire | Repeatable precision paths | Fixture design and dimensional control |
| Hybrid manufacturing | Depends on system | Deposition combined with machining | Process integration and system complexity |
These categories can overlap. For example, a robotic machine may use powder feeding, while a CNC system may also incorporate machining equipment.
Recent Updates
Developments in laser cladding from 2024 through 2026 reflect wider advances in industrial laser technology, automation, digital process monitoring, and additive manufacturing. The direction of development is toward improved control over material deposition, repeatability, and the ability to process components with complex shapes. Specific capabilities vary by equipment manufacturer and system configuration.
Automation and Process Monitoring
Modern laser cladding systems may incorporate sensors, machine vision, thermal monitoring, and software that tracks operating conditions. These technologies can help identify changes in melt-pool behavior, deposited-layer shape, and temperature during processing. Monitoring does not eliminate defects, but it can provide information for process adjustment and quality checks.
Robotic motion systems and computer-controlled deposition paths also support repeatable processing. Some systems integrate digital models with programmed tool paths, allowing engineers to plan deposition around component geometry. The reliability of the finished part still depends on calibration, material preparation, process validation, and inspection.
Advances in Materials and Hybrid Manufacturing
Research and industrial development continue to explore new alloy combinations, powder characteristics, and deposition strategies. Applications may involve nickel-based alloys, cobalt-based alloys, stainless steels, and other metallic materials selected for particular operating conditions. Material compatibility and required performance determine whether a combination is appropriate.
Hybrid manufacturing is another continuing development. Combining deposition with machining can support the production or repair of parts that require both added material and precise final dimensions. However, integration requires coordination between deposition parameters, machining allowances, component handling, and quality-control procedures.
Laws or Policies
Laser cladding machines are subject to workplace safety rules, industrial equipment requirements, environmental controls, and applicable manufacturing standards. The specific requirements depend on the country, installation, laser classification, workplace activities, and industry in which the equipment is used.
Industrial Safety Requirements in India
In India, relevant workplace requirements may arise under the Occupational Safety, Health and Working Conditions Code, 2020, and associated rules and implementation arrangements, as applicable. Factories and industrial installations may also be subject to applicable state requirements, electrical safety provisions, fire precautions, and workplace procedures.
Laser cladding involves hazards that require particular attention. High-intensity laser radiation can damage eyes and skin, while molten metal, hot surfaces, fumes, and metal powders create additional risks. Appropriate laser enclosures, interlocks, protective eyewear suited to the laser wavelength, ventilation, and safe material-handling procedures may be required according to the system and workplace risk assessment.
Equipment Standards and Environmental Controls
Manufacturers and operators may refer to relevant laser safety standards, including the ISO 11553 series for machinery safety involving laser processing. The applicability of a specific standard depends on the equipment and the relevant regulatory or contractual requirements.
Industrial operations must also assess emissions, powder handling, waste disposal, and ventilation. Depending on the installation, environmental obligations may involve applicable Central Pollution Control Board guidance, State Pollution Control Board requirements, and local permissions. Compliance should be evaluated against current rules and the actual processes conducted at the facility.
Tools and Resources
Several technical resources help engineers, manufacturing teams, and equipment planners understand laser cladding machines and evaluate their suitability. These resources support research and planning, but they do not replace application-specific testing or qualified engineering assessment.
Technical Software and Reference Resources
Computer-aided design software can help prepare component models and identify surfaces requiring deposition. Computer-aided manufacturing tools may generate motion paths for CNC equipment or robotic systems. Simulation software can also help evaluate aspects of heat transfer, distortion, and material behavior, although simulated results depend on the assumptions and input data used.
Useful technical resources include:
ISO: Standards information covering laser processing safety and related industrial practices.
NIST: Research publications on manufacturing, materials, measurement, and additive manufacturing.
ASTM International: Standards and technical documents related to additive manufacturing, materials, and testing.
Manufacturer technical documentation: Information about machine configuration, compatible materials, operating limits, maintenance, and safety requirements.
Selection and Evaluation Factors
Selecting a laser cladding machine involves matching its technical capabilities to the intended work. Relevant considerations include laser power, deposition rate, material-feed method, working area, motion accuracy, compatible alloys, automation requirements, and inspection capabilities.
A practical evaluation may also include the following:
Component geometry: Determine whether the machine can reach the required surfaces and maintain the intended deposition path.
Layer requirements: Define thickness, hardness, corrosion resistance, wear resistance, and finishing tolerances.
Material compatibility: Check the relationship between the base metal and the proposed deposited alloy.
Production needs: Consider batch size, operating time, setup requirements, and repeatability.
Safety provisions: Assess enclosure design, interlocks, extraction, and powder-handling arrangements.
Quality verification: Establish suitable inspection methods, including dimensional checks and testing for cracks, porosity, or bonding defects where relevant.
A controlled trial using representative materials and component geometry can help establish whether the proposed process meets the required specifications.
FAQs
What is a laser cladding machine used for?
A laser cladding machine deposits a layer of material onto a component using a laser-generated melt pool. Common purposes include repairing selected worn surfaces and improving resistance to wear, corrosion, or heat.
What are the main types of laser cladding machines?
Common types include powder-fed systems, wire-fed systems, robotic cladding machines, CNC-controlled equipment, and hybrid manufacturing systems. These categories may overlap depending on the machine design.
Which materials are used in laser cladding?
Materials may include stainless steels, nickel-based alloys, cobalt-based alloys, and other metals selected for the application. Compatibility with the base material and required surface properties must be assessed.
What factors affect laser cladding machine selection?
Important factors include component geometry, laser power, feed method, deposition rate, layer thickness, material compatibility, automation, safety features, and inspection requirements.
What safety precautions are needed for laser cladding?
Safety measures may include suitable laser enclosures, interlocks, wavelength-appropriate protective eyewear, ventilation, and controls for hot metal and metallic powders. The required measures depend on the machine and workplace risk assessment.
Conclusion
Laser cladding machines deposit metallic layers to repair selected components or modify surface properties for industrial applications. Their configurations include powder-fed, wire-fed, robotic, CNC-controlled, and hybrid systems, each with different operational considerations. Advances in automation, monitoring, and hybrid manufacturing continue to influence the technology, while material compatibility and quality control remain essential. Equipment selection and operation depend on the component requirements, workplace safety rules, and applicable manufacturing standards.
