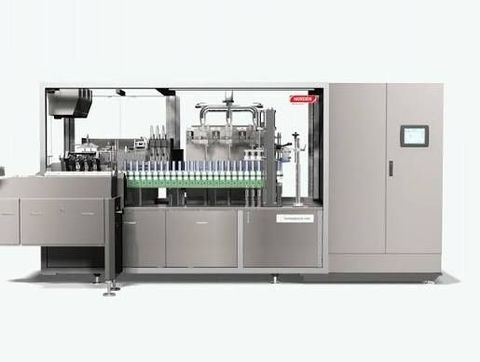

Tube filling systems are packaging machines designed to place measured quantities of liquid, cream, gel, paste, or other suitable materials into tubes before closing and sealing them.
These systems are used in industries where products need to be contained in tubes for storage, handling, transportation, and consumer use. Depending on the production environment, filling may be performed manually, semi-automatically, or through interconnected automated equipment.
A tube filling machine generally combines several stages within one production sequence. Empty tubes are positioned, filled with a specified quantity of material, sealed, marked, and discharged for further packaging. The exact sequence depends on the tube material, product characteristics, container dimensions, and required production process.
Tube filling equipment is used across several sectors, including cosmetics, personal care, pharmaceuticals, food products, household products, and industrial materials. A cosmetic tube filling machine may handle creams or gels, while a pharmaceutical tube filling machine can be designed for controlled filling environments and specific production requirements.
How Tube Filling Processes Developed
Earlier tube packaging processes depended heavily on manual handling. Operators had to position containers, introduce the product, close the tube, and inspect the finished package. As production volumes and packaging requirements changed, mechanical and electronic controls became integrated into tube filling equipment.
Modern automatic tube filling systems coordinate multiple stages through sensors, programmable controls, mechanical components, and electronic monitoring. This reduces the need for operators to manually perform every repetitive step while allowing human personnel to supervise the overall process.
Main Stages of Tube Filling
A typical tube filling and sealing machine can include several stages:
- Tube feeding and positioning.
- Tube orientation or alignment.
- Product filling.
- Tube sealing.
- Date, batch, or identification marking.
- Finished tube discharge.
- Inspection or quality checking.
Not every machine contains all these stages. A complete tube filling and sealing system may connect several functions, while a simpler machine may perform only filling and closing.
Importance
Tube filling systems matter because tubes are widely used for products that need controlled containment and convenient dispensing. Packaging consistency can influence how much material is placed inside each container and how securely the package is closed.
Industries using industrial tube filling systems must also account for factors such as product viscosity, tube dimensions, sealing method, cleanliness, and production speed. These factors influence the selection and configuration of the equipment.
Consistent Filling
A major purpose of automated tube filling equipment is to repeat a defined filling process across multiple containers. Precision tube filling equipment uses controlled filling mechanisms to measure and dispense material according to configured parameters.
The filling method can vary depending on the material. Pump-based systems, piston mechanisms, and other dispensing technologies may be used for different product characteristics. Highly viscous materials may require different handling arrangements from thinner liquids.
Tube Sealing and Package Integrity
Filling is only one part of tube packaging. After material is introduced, the tube must be closed using a suitable sealing method. A tube filling and sealing machine may use heat, ultrasonic energy, mechanical folding, or another method depending on the tube construction.
Tube filling and sealing equipment must be compatible with the tube material and closure design. Plastic and laminate tubes, for example, can require different sealing arrangements from metal tubes.
Applications Across Industries
Different industries have different packaging requirements. Pharmaceutical tube filling systems may place greater emphasis on controlled environments, accurate filling, traceability, and process documentation. Cosmetic applications can involve creams, lotions, gels, and other formulations with varying thickness.
Industrial tube filling equipment can also be used for materials such as adhesives, compounds, and other formulated products. The equipment configuration is generally selected according to the physical characteristics of the material and the container.
| Application Area | Typical Tube Contents | Common Process Considerations |
|---|---|---|
| Cosmetics | Creams, gels, lotions | Product texture and appearance |
| Pharmaceuticals | Formulated topical products | Controlled filling and documentation |
| Personal care | Gels, creams, pastes | Filling consistency and sealing |
| Food | Pastes, sauces, concentrates | Hygiene and material compatibility |
| Industrial products | Adhesives, compounds | Viscosity and dispensing method |
Recent Updates
From 2024 through 2026, the general direction of tube packaging has been toward greater automation, improved process monitoring, flexible machine configurations, and closer integration between filling equipment and digital production systems. These developments reflect broader changes in manufacturing, where equipment is increasingly connected to sensors and digital controls.
Greater Automation and Monitoring
Modern automatic tube filling machines can incorporate sensors that monitor tube position, filling stages, sealing conditions, and other process variables. When a detected condition does not match the configured process, the system can be designed to pause or identify the affected stage.
High speed tube filling machine configurations may also use coordinated mechanical movements and electronic controls to manage repeated packaging cycles. Actual operating speed varies according to the machine design, product, tube dimensions, filling volume, and process requirements.
Flexible Production
Manufacturers increasingly handle multiple tube sizes, materials, and formulations within the same production environment. This has encouraged development of advanced tube filling machinery with adjustable components and programmable settings.
Automated tube filling and sealing systems may incorporate changeover features that allow equipment settings to be adjusted for different production requirements. The practical changeover process depends on the equipment configuration and the number of components that need adjustment.
Digital Data and Process Tracking
Industrial automation is also influencing packaging equipment. Automated industrial tube filling systems can connect sensors and control components with digital monitoring systems that record selected process information.
Such data can be used to review production activity, identify interruptions, and document process conditions. Digital connectivity does not eliminate the need for physical inspection, equipment maintenance, or operator oversight.
Tools and Resources
Several resources can help readers understand or evaluate tube filling processes. Equipment manuals, packaging standards, technical diagrams, process flowcharts, and tube manufacturer specifications can provide useful background information.
Planning and Process Documentation
A simple process map can show the sequence from empty tube loading through finished package discharge. Production planners may document information such as:
- Tube material and dimensions.
- Filling volume.
- Product viscosity.
- Sealing method.
- Marking requirements.
- Inspection stages.
- Cleaning and changeover procedures.
A tube dimension chart can also help compare container sizes and identify whether particular filling and sealing equipment can accommodate them.
Technical Resources
Manufacturers and industry organizations publish technical information about packaging machinery, tube materials, sealing technologies, and production practices. Equipment manuals are particularly useful for understanding operating ranges, adjustment procedures, safety requirements, and maintenance intervals.
For industrial applications, programmable control documentation and equipment diagrams can explain how sensors, filling mechanisms, conveyors, and sealing units interact.
Process Measurement Tools
Production environments may use weighing equipment, measurement devices, inspection cameras, sensors, and data-recording systems to examine filling and packaging processes. These tools can help identify differences between configured parameters and actual production conditions.
The specific measurement method depends on the product, packaging format, and applicable production requirements.
FAQs
What are tube filling systems used for?
Tube filling systems are used to place measured quantities of suitable products into tubes and then close or seal the containers. They are used in industries such as cosmetics, pharmaceuticals, food, personal care, and industrial manufacturing.
How does an automatic tube filling machine work?
An automatic tube filling machine generally feeds and positions empty tubes, introduces a measured quantity of product, seals the tubes, and moves completed packages to the next stage. Sensors and programmed controls can coordinate these operations.
What is a tube filling and sealing machine?
A tube filling and sealing machine combines product filling and tube closure within a coordinated packaging process. Depending on its design, it may also include tube feeding, marking, inspection, and discharge functions.
What is a pharmaceutical tube filling machine?
A pharmaceutical tube filling machine is equipment configured for tube packaging applications in pharmaceutical production. Its design may include controlled filling parameters, suitable materials, monitoring features, and process documentation according to the applicable production requirements.
What factors affect high precision tube filling equipment?
Product viscosity, filling volume, tube dimensions, dispensing mechanism, temperature, machine settings, and process conditions can influence filling precision. Equipment configuration and appropriate calibration also affect how consistently a filling process operates.
Conclusion
Tube filling systems combine container handling, product dispensing, sealing, and related packaging stages into structured production processes. Modern equipment increasingly uses sensors, programmable controls, digital monitoring, and flexible configurations to manage different packaging requirements. Automatic tube filling systems are used across pharmaceutical, cosmetic, food, personal care, and industrial applications, with equipment characteristics varying according to the product and tube format. Understanding the filling, sealing, monitoring, and inspection stages provides a basic view of how automated tube packaging processes operate.
