Plastic products are part of everyday life. From household containers and automotive parts to medical devices and electronic components, plastic manufacturing supports countless industries across the world. One of the most important technologies behind this production is the injection molding machine. Injection molding is widely used because it can produce large volumes of consistent, high-quality plastic parts with minimal waste. Whether you are a business owner looking for manufacturing solutions, an engineering student, a procurement manager, or someone exploring industrial production, understanding how injection molding machines work can help you make better decisions.

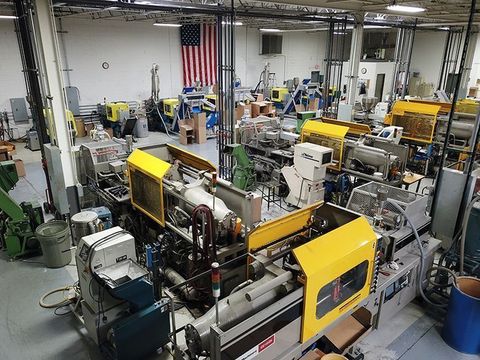

What Is an Injection Molding Machine?
An injection molding machine is industrial equipment that melts plastic material and injects it into a specially designed mold under high pressure. Once the plastic cools and solidifies, the mold opens, releasing the finished product.
The process is highly repeatable, making it ideal for producing thousands or even millions of identical components with consistent dimensions.
A typical injection molding machine consists of three primary systems:
- Injection unit
- Clamping unit
- Control system
Together, these systems ensure accurate plastic melting, mold filling, cooling, and product ejection.
How Injection Molding Works
The injection molding process follows several basic steps:
Step 1: Plastic Feeding
Plastic pellets are loaded into a hopper and transferred into the machine.
Step 2: Heating
The pellets move through a heated barrel where they melt into liquid plastic.
Step 3: Injection
A screw pushes the molten plastic into the mold cavity under controlled pressure.
Step 4: Cooling
The plastic cools inside the mold and hardens into the desired shape.
Step 5: Mold Opening
The mold separates, allowing the finished component to be removed.
Step 6: Repeat Cycle
The machine closes the mold and begins another production cycle.
This process can repeat continuously for extended production runs.
Common Materials Used
Different plastic materials are selected depending on product requirements.
| Material | Common Applications | Key Characteristics |
|---|---|---|
| Polypropylene (PP) | Food containers, automotive parts | Flexible and lightweight |
| Polyethylene (PE) | Packaging, bottles | Chemical resistant |
| ABS | Electronics, appliance housings | Strong and impact resistant |
| Polycarbonate (PC) | Safety equipment, lenses | High transparency and strength |
| Nylon (PA) | Gears, industrial parts | Excellent wear resistance |
| PVC | Pipes, fittings | Durable and weather resistant |
Choosing the correct material plays a major role in product performance and manufacturing efficiency.
Benefits of Injection Molding Machines
Injection molding has become one of the most widely adopted manufacturing methods for several reasons.
High Production Efficiency
Once the mold is ready, production cycles are fast, making large-scale manufacturing practical.
Excellent Product Consistency
Every cycle produces nearly identical parts, reducing quality variation.
Low Material Waste
Unused plastic can often be recycled and reused depending on production requirements.
Complex Product Designs
Modern molds can produce intricate shapes that would be difficult using other manufacturing methods.
Automation Friendly
Many production lines operate with robotics and automated handling systems, improving productivity.
Broad Material Compatibility
Hundreds of engineering plastics and specialty materials can be processed.
Limitations of Injection Molding
Despite its advantages, injection molding is not suitable for every project.
High Initial Tooling Cost
Mold manufacturing requires precision engineering and represents a significant upfront investment.
Design Changes Can Be Expensive
Once a mold is manufactured, modifying the design may require additional tooling work.
Best for Large Production Runs
Small production quantities may not justify mold costs.
Requires Skilled Operation
Machine setup, process optimization, and maintenance require trained professionals.
Types of Injection Molding Machines
Different manufacturing applications require different machine technologies.
Hydraulic Injection Molding Machines
Hydraulic machines have been used for decades.
Advantages include:
- High clamping force
- Suitable for large components
- Reliable for heavy-duty manufacturing
Best suited for:
- Automotive
- Industrial equipment
- Large plastic products
Electric Injection Molding Machines
Electric machines use servo motors instead of hydraulic systems.
Advantages include:
- Lower energy consumption
- Cleaner operation
- Higher positioning accuracy
- Faster response time
Often used for:
- Medical products
- Electronics
- Precision engineering
Hybrid Injection Molding Machines
Hybrid machines combine hydraulic power with electric precision.
Benefits include:
- Improved efficiency
- Better energy savings
- Strong clamping capability
- Reduced operating costs
These machines are becoming increasingly popular across multiple industries.
Comparison of Machine Types
| Feature | Hydraulic | Electric | Hybrid |
|---|---|---|---|
| Energy Efficiency | Moderate | High | High |
| Precision | Good | Excellent | Excellent |
| Initial Investment | Lower | Higher | Moderate |
| Maintenance | Moderate | Lower | Moderate |
| Noise Level | Higher | Lower | Low |
| Large Part Production | Excellent | Good | Excellent |
Industries That Use Injection Molding
Injection molding supports numerous manufacturing sectors.
Common industries include:
- Automotive manufacturing
- Consumer electronics
- Medical equipment
- Food packaging
- Household products
- Aerospace
- Agriculture
- Construction
- Industrial machinery
- Telecommunications
Each industry has unique quality standards, material requirements, and production volumes.
Key Features to Consider Before Buying
Choosing the right machine involves evaluating several important factors.
Clamping Force
Larger products generally require higher clamping force to keep molds securely closed during injection.
Shot Size
Shot size determines the maximum amount of molten plastic injected into the mold.
Injection Pressure
Higher injection pressure helps manufacture complex components with thin walls.
Energy Consumption
Energy-efficient machines can reduce long-term operating expenses while supporting sustainability goals.
Automation Compatibility
Many manufacturers prefer machines that integrate with:
- Robotic arms
- Conveyor systems
- Vision inspection systems
- Smart factory software
Controller Interface
Modern touchscreen control systems simplify setup, monitoring, and production adjustments.
Safety Features
Important safety features include:
- Emergency stop systems
- Operator protection doors
- Overload monitoring
- Temperature protection
- Alarm systems
Latest Trends in Injection Molding Technology
The plastic manufacturing industry continues to evolve with technological improvements.
Smart Manufacturing
Machines now collect production data in real time, helping manufacturers monitor efficiency and identify maintenance needs.
Industry 4.0 Integration
Modern systems communicate with factory software for production planning and quality monitoring.
Energy-Efficient Servo Systems
Manufacturers increasingly adopt servo-driven technology to reduce electricity usage while maintaining performance.
Sustainable Manufacturing
Companies are expanding the use of recycled plastics, bio-based materials, and energy-efficient production methods to reduce environmental impact.
Predictive Maintenance
Sensors continuously monitor machine performance and alert operators before potential failures occur.
Advanced Process Monitoring
Modern software helps maintain consistent product quality by tracking pressure, temperature, and cycle times throughout production.
Leading Injection Molding Machine Manufacturers
Several companies are recognized globally for their manufacturing expertise and product reliability.
| Company | Known For | Common Applications |
|---|---|---|
| Engel | Advanced automation and smart manufacturing | Automotive, medical |
| Arburg | Precision molding technology | Electronics, medical devices |
| Haitian International | Large production capacity and wide machine range | Consumer goods, industrial manufacturing |
| KraussMaffei | Integrated production solutions | Automotive, packaging |
| Sumitomo (SHI) Demag | High-speed electric machines | Precision manufacturing |
| Milacron | Broad portfolio of molding equipment | Packaging, consumer products |
| Toshiba Machine (Shibaura Machine) | Precision engineering | Electronics and industrial components |
| Nissei | Multi-material molding capabilities | Consumer and industrial applications |
Each manufacturer offers different machine sizes, automation capabilities, and technology platforms. Comparing specifications, service support, spare part availability, and long-term operating requirements is often more valuable than focusing on brand recognition alone.
Checklist for Choosing the Right Injection Molding Machine
Before making a purchasing decision, consider the following checklist.
Production Requirements
- Expected production volume
- Product dimensions
- Material compatibility
- Required cycle time
Machine Performance
- Appropriate clamping force
- Injection speed
- Precision level
- Automation support
Operational Considerations
- Energy efficiency
- Maintenance requirements
- Spare parts availability
- Technical support
Business Factors
- Future production expansion
- Operator training needs
- Factory space
- Long-term operating costs
Selecting a machine based on production goals rather than initial purchase considerations alone can help improve long-term efficiency and reliability.
Best Practices for Efficient Operation
Proper operation improves both product quality and machine lifespan.
Some practical recommendations include:
- Use high-quality raw materials appropriate for the application.
- Maintain consistent processing temperatures.
- Monitor cycle times regularly.
- Inspect molds before production begins.
- Keep cooling systems clean and functioning properly.
- Train operators on machine controls and safety procedures.
- Record production data for continuous process improvement.
Small operational improvements can significantly enhance overall manufacturing performance over time.
Maintenance Tips
Routine maintenance helps reduce unexpected downtime and extends equipment life.
A preventive maintenance schedule may include:
Daily
- Clean machine surfaces.
- Check hydraulic or lubrication systems.
- Inspect safety devices.
Weekly
- Examine hoses and electrical connections.
- Verify pressure settings.
- Clean filters where applicable.
Monthly
- Inspect screws and barrels for wear.
- Check cooling circuits.
- Calibrate sensors if required.
Periodically
- Perform complete machine inspections.
- Review software updates.
- Replace worn seals, belts, or components according to manufacturer recommendations.
Consistent maintenance supports stable production quality and helps avoid costly repairs.
Common Challenges and Practical Solutions
| Challenge | Possible Cause | Practical Solution |
|---|---|---|
| Short shots | Insufficient plastic flow | Adjust injection parameters or material feed |
| Flash on parts | Excess pressure or mold issues | Inspect mold alignment and optimize settings |
| Warping | Uneven cooling | Improve mold cooling consistency |
| Sink marks | Material shrinkage | Optimize holding pressure and cooling time |
| Burn marks | Trapped air | Improve mold venting and processing conditions |
| Inconsistent quality | Process variation | Monitor temperature, pressure, and cycle consistency |
Understanding common production issues can help manufacturers reduce waste and improve product quality.
Frequently Asked Questions
What products are commonly made using injection molding?
Injection molding is used to produce automotive components, household products, medical devices, packaging, electronic housings, toys, industrial parts, and many other plastic products.
Is injection molding suitable for small production runs?
It can be, but because molds require significant upfront investment, injection molding is generally more economical for medium to high production volumes.
How long does an injection molding machine typically last?
With proper maintenance, many industrial injection molding machines remain operational for decades, although performance depends on usage, maintenance practices, and operating conditions.
What is the difference between hydraulic and electric machines?
Hydraulic machines provide high clamping force and are often preferred for larger parts, while electric machines offer greater precision, lower energy consumption, and quieter operation. Hybrid machines combine features of both.
Can recycled plastics be used in injection molding?
Many manufacturers use recycled plastics either alone or blended with virgin materials, depending on product requirements, quality standards, and material properties.
What factors influence product quality?
Material selection, mold design, machine settings, cooling time, injection pressure, and regular maintenance all contribute to consistent product quality.
How important is mold design?
Mold design is one of the most critical aspects of injection molding. A well-designed mold improves product consistency, reduces defects, shortens cycle times, and supports efficient production.
Conclusion
Injection molding machines play a central role in modern plastic manufacturing by enabling efficient, repeatable, and high-quality production across a wide range of industries. Understanding how these machines work, the different technologies available, and the factors that influence performance can help businesses, engineers, and buyers make informed decisions.
Whether you are evaluating equipment for a new manufacturing project or simply learning about industrial production, it is important to consider production requirements, material compatibility, energy efficiency, automation capabilities, and long-term maintenance needs. Comparing machine types, assessing manufacturer support, and planning for future scalability can contribute to better operational outcomes over time.
