Precision cutting and dicing machines are specialized equipment used to divide materials into smaller sections with controlled dimensions and carefully finished edges. These machines are widely used in semiconductor manufacturing, electronics, materials research, optics, medical device production, and industrial laboratories.
Technologies such as diamond wire saws, precision wafer dicing systems, laser cutting equipment, and abrasive cutting machines help process materials that require accurate dimensions and minimal damage. The choice of cutting technology depends on the material, required thickness, surface quality, production volume, and acceptable material loss. Understanding the available machines, operating principles, and applications helps explain how precision cutting supports modern manufacturing and scientific research.
Context
What Are Precision Cutting and Dicing Machines?
Precision cutting machines separate materials into specific shapes or dimensions while controlling the cutting path and the condition of the resulting surfaces. Dicing machines are a specialized category commonly used to divide wafers, substrates, electronic components, and other thin materials into individual sections.
Unlike conventional cutting equipment, precision systems are designed to control factors such as blade movement, cutting depth, material positioning, vibration, and temperature. These factors become particularly important when working with brittle, thin, expensive, or heat-sensitive materials.
How Precision Cutting Technology Developed
Traditional material cutting relied on mechanical tools, abrasive wheels, and manual positioning. As electronics, semiconductor manufacturing, and materials science advanced, manufacturers required equipment capable of producing smaller components with tighter dimensional tolerances.
Computer numerical control, optical alignment, automated material handling, and improved cutting tools expanded the capabilities of precision cutting equipment. Modern machines may combine digital controls, cameras, sensors, and automated inspection systems to improve repeatability and process monitoring.
Main Types of Precision Cutting Machines
Different machine types are designed for different materials and cutting requirements.
| Machine Type | Cutting Method | Typical Applications |
|---|---|---|
| Diamond wire saw | Abrasive wire cuts through material | Silicon, ceramics, crystals |
| Wafer dicing saw | Rotating blade cuts substrates | Semiconductor wafers and electronic packages |
| Laser cutting machine | Focused laser energy removes or separates material | Thin films, ceramics, and selected electronic materials |

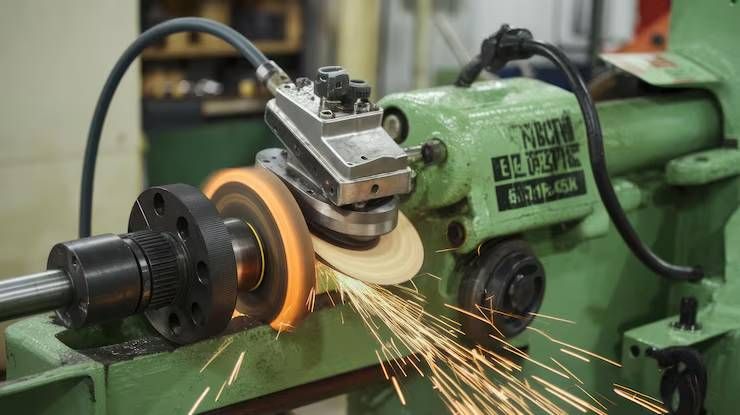

| Precision abrasive saw | Abrasive wheel removes material | Metals, composites, and laboratory specimens |
| Ultrasonic cutting system | High-frequency vibration assists cutting | Brittle materials and specialized components |
| Microtome | Controlled mechanical sectioning | Biological and materials research specimens |
Each technology has specific operating requirements and limitations. Machine selection depends on material properties, component geometry, cutting accuracy, and the required surface finish.
Importance
Why Precision Cutting Matters
Many modern products contain components that must fit together accurately or maintain specific electrical, optical, or mechanical properties. Small cutting errors can affect component dimensions, surface integrity, assembly alignment, or subsequent manufacturing operations.
Precision cutting helps manufacturers prepare consistent components while controlling defects such as cracks, chipping, burrs, and excessive material removal. In research laboratories, it also enables scientists to prepare specimens for microscopy, material characterization, and experimental testing.
Semiconductor and Electronics Manufacturing
Semiconductor wafers contain numerous individual electronic circuits. After fabrication, these wafers are commonly separated into individual dies using specialized dicing equipment.
The process must account for wafer thickness, material brittleness, circuit layout, and the width of the cutting path. Precision wafer dicing systems are therefore designed to maintain alignment while limiting damage near the edges of each die.
Other electronics applications include cutting ceramic substrates, separating sensor components, preparing optical elements, and processing electronic packaging materials.
Materials Research and Laboratory Applications
Research laboratories use precision cutting machines to prepare specimens from metals, ceramics, polymers, minerals, composites, and single-crystal materials.
Typical applications include:
Preparing samples for scanning electron microscopy.
Sectioning materials for microstructural analysis.
Cutting semiconductor substrates for research.
Preparing geological and mineral specimens.
Producing thin sections for optical examination.
Investigating fracture behavior and material defects.
The preparation method can influence test results. Excessive heat, mechanical stress, or surface damage may alter the region being examined, making suitable cutting conditions important.
Factors That Influence Cutting Quality
Several factors affect the quality and consistency of precision cutting:
Material hardness and brittleness.
Cutting tool composition and geometry.
Cutting speed and feed rate.
Cooling and lubrication requirements.
Machine vibration and positioning accuracy.
Material thickness and mounting method.
Operator training and equipment maintenance.
These factors are evaluated together because changing one operating parameter can influence both productivity and surface quality.
Recent Updates
Automation and Digital Process Monitoring
Recent developments through 2024–2026 reflect a broader move toward automated material processing and improved process monitoring. Modern precision cutting systems increasingly incorporate digital controls, automatic alignment, programmable cutting paths, and machine condition monitoring.
These features help operators manage repeatable cutting sequences and identify operating variations. The actual capabilities differ according to the machine design and application.
Advances in Diamond Wire Saw Technology
Diamond wire saws continue to be used for materials that are difficult to process with conventional cutting tools. Their cutting wire contains or interacts with diamond abrasive material, which can cut hard substances such as silicon, sapphire, quartz, and selected ceramics.
Developments in wire design, tension control, motion systems, and abrasive technology support different cutting requirements. The appropriate configuration depends on material hardness, required kerf width, surface quality, and specimen dimensions.
Laser-Based Material Processing
Laser cutting and laser dicing are used where focused energy can separate materials without direct contact from a conventional cutting blade. These methods are relevant to selected semiconductor materials, thin films, ceramics, and specialized electronic components.
However, laser processing can create heat-affected regions, recast material, or other surface changes. Process selection must consider the material's response to laser energy and the acceptable level of thermal damage.
Improved Inspection and Alignment
Optical cameras, machine vision, and digital measurement systems are increasingly integrated into precision cutting equipment. These technologies help identify material edges, align cutting paths, and verify component positioning.
Automated alignment can reduce dependence on manual positioning, although calibration and process validation remain important.
Laws or Policies
Equipment Safety Requirements
Precision cutting machines may expose operators to rotating blades, abrasive particles, moving components, electrical hazards, noise, and cutting fluids. Applicable workplace safety rules depend on the country, equipment type, and operating environment.
In India, relevant workplace safety obligations may arise under applicable occupational safety legislation and associated rules. Facilities should evaluate machine guarding, emergency stops, electrical protection, safe operating procedures, and appropriate personal protective equipment.
Machinery and Electrical Standards
International standards can help manufacturers and equipment users address machinery safety, electrical protection, and risk assessment. Relevant standards may include ISO 12100 for machinery risk assessment and IEC 60204-1 for electrical equipment of machines, depending on the equipment and applicable requirements.
Standards may be voluntary or incorporated into regulatory requirements, procurement specifications, or contractual obligations. Their applicability should be verified for the particular machine and jurisdiction.
Laboratory Safety and Material Handling
Laboratories must also consider risks associated with specimen preparation. Certain materials may produce hazardous dust, sharp fragments, or contaminated cutting fluids.
Suitable extraction, containment, waste handling, and cleaning procedures depend on the material being processed. Semiconductor and electronics facilities may have additional requirements for chemical handling and contamination control.
Environmental Considerations
Cutting processes can generate material waste, used abrasives, metal particles, and contaminated fluids. Environmental obligations vary according to the substances involved and local regulations.
Appropriate collection, storage, treatment, and disposal practices help laboratories and manufacturing facilities manage these materials responsibly.
Tools and Resources
Machine Specifications and Technical Documentation
Technical datasheets and operating manuals explain cutting capacity, specimen dimensions, spindle speed, wire specifications, positioning accuracy, and recommended operating conditions.
When comparing equipment, users should distinguish between positioning resolution, repeatability, and actual cutting accuracy. These measurements describe different performance characteristics.
Material Preparation Resources
Materials science textbooks, laboratory procedures, and technical publications explain how cutting conditions affect specimen quality. Research institutions may also publish preparation protocols for ceramics, metals, semiconductors, and composite materials.
Measurement and Inspection Tools
Several instruments are commonly used alongside precision cutting machines:
Optical microscopes for inspecting edges and surface defects.
Digital measuring systems for checking dimensions.
Profilometers for evaluating surface characteristics.
Optical alignment systems for locating cutting paths.
Thickness gauges for measuring material dimensions.
The appropriate inspection method depends on the specimen and the required measurement precision.
Manufacturer Documentation and Standards
Technical documentation from equipment manufacturers can explain machine configurations, compatible cutting tools, maintenance intervals, and material-specific limitations. Organizations such as ISO and IEC publish standards relevant to machinery safety and electrical equipment.
Independent laboratory evaluations and documented process trials can also help determine whether a machine is suitable for a particular application.
FAQs
What are precision cutting and dicing machines used for?
Precision cutting and dicing machines separate materials into controlled dimensions for electronics, semiconductor production, materials research, optics, and industrial manufacturing. They are particularly useful when component geometry and edge quality are important.
How does a diamond wire saw work?
A diamond wire saw uses a moving wire with diamond abrasive material or an associated abrasive cutting mechanism to remove material along a controlled path. It is commonly used for silicon, crystals, ceramics, and other hard or brittle materials.
What is the difference between a precision saw and a wafer dicing machine?
A precision saw is a broad category of equipment used to cut different materials. A wafer dicing machine is specifically configured to divide semiconductor wafers or similar substrates into individual dies while controlling alignment and cutting damage.
Which precision cutting machine is suitable for laboratory applications?
The suitable machine depends on the specimen material, dimensions, required surface quality, and testing method. Diamond wire saws may suit brittle crystals, abrasive saws may suit metals and composites, and specialized dicing systems may suit semiconductor substrates.
How is cutting accuracy measured?
Cutting accuracy can be evaluated by measuring the final dimensions, cutting path deviation, edge condition, and repeatability across multiple specimens. Measurement instruments and acceptance tolerances depend on the application and material.
Conclusion
Precision cutting and dicing machines support the controlled preparation of materials used in electronics, semiconductor manufacturing, industrial production, and laboratory research. Technologies such as diamond wire saws, wafer dicing systems, abrasive saws, and laser processing serve different applications according to material properties and dimensional requirements. Cutting quality depends on equipment configuration, operating conditions, alignment, and inspection procedures. Safety controls and suitable specimen preparation methods remain important throughout the process.
