Sheet metal is used across construction, automotive manufacturing, appliances, electrical enclosures, HVAC systems, industrial equipment, and many other applications.
Turning flat metal sheets into accurate components, however, requires more than simply cutting and bending material. Different operations require specialized machines that control dimensions, angles, surface quality, and production consistency.
Understanding Sheet Metal Machinery helps manufacturers, engineers, workshop operators, and learners choose suitable equipment for different fabrication tasks. From cutting and punching to bending, forming, and finishing, each machine performs a specific role within the production process.
This guide explains the major types of sheet metal fabrication equipment, how they work, what factors influence machine selection, and how modern fabrication processes improve accuracy and productivity.
What Is Sheet Metal Machinery?
Sheet metal machinery refers to industrial equipment designed to cut, shape, form, bend, punch, join, or finish metal sheets. These machines can process materials such as mild steel, stainless steel, aluminum, copper, and other sheet metals.
The appropriate machine depends on several factors, including:
- Material type and thickness
- Component dimensions
- Required shape and geometry
- Production volume
- Dimensional accuracy
- Surface-finish requirements
- Automation requirements
A simple workshop may rely on mechanical cutting and bending equipment, while a larger manufacturing operation may use computer-controlled systems capable of completing several precise operations with minimal manual intervention.
Common Types of Sheet Metal Processing Machines
Different fabrication stages require different equipment. Understanding their functions makes it easier to determine how they fit into a complete manufacturing workflow.
1. Shearing Machines
Shearing machines cut sheet metal into straight sections without producing chips. They are commonly used when large sheets need to be divided into smaller blanks before additional forming operations.
Hydraulic, mechanical, and CNC-controlled shears are available for different applications. Machine capacity generally depends on material thickness, sheet width, and cutting requirements.
2. Press Brakes
Press brakes are primarily used for bending sheet metal. A sheet is positioned between a punch and die, and controlled force creates the required bend.
Modern press brakes can use CNC systems to control:
- Bend angle
- Back gauge position
- Tool positioning
- Bending sequence
- Repeatability
Press brakes are especially useful for manufacturing brackets, panels, cabinets, frames, ducts, and structural components.
3. Punching Machines
Punching machines create holes, slots, notches, and other shapes by forcing a punch through the sheet and into a die.
CNC punching systems can perform multiple operations across a sheet according to a programmed design. This makes them useful when components require repeated holes or complex patterns.
4. Laser Cutting Machines
Laser cutting uses a concentrated beam of energy to cut sheet metal according to programmed geometries. It can produce detailed shapes and is often used when high dimensional accuracy and intricate profiles are required.
Laser cutting is suitable for many materials and can reduce the need for additional mechanical cutting operations. However, material thickness, heat sensitivity, and required edge quality must be considered when selecting the process.

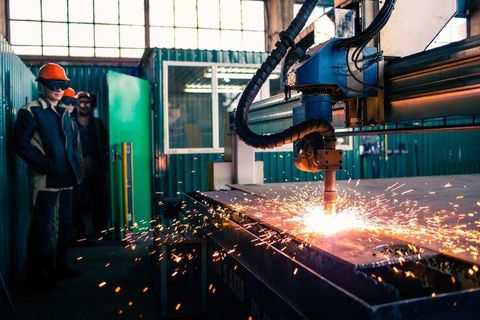

5. Plasma Cutting Equipment
Plasma cutting uses a high-temperature plasma arc to cut electrically conductive metals. It is commonly associated with applications involving relatively thick metal sheets and plates.
Compared with some precision-oriented cutting methods, plasma systems can be particularly useful when cutting speed and material thickness are important considerations.
6. Waterjet Cutting Systems
Waterjet cutting uses a high-pressure stream of water, sometimes combined with an abrasive material, to cut metal.
Because the process produces relatively little heat in the cutting zone, it can be useful for materials or applications where thermal effects need to be minimized. Waterjet systems can also produce complex profiles without relying on heat-based cutting.
Understanding Sheet Metal Forming Equipment
Cutting creates the required blank, but many components need additional shaping. Forming equipment changes the geometry of the sheet without necessarily removing significant amounts of material.
Common forming processes include:
- Bending
- Rolling
- Flanging
- Embossing
- Deep drawing
- Stretch forming
For example, a flat sheet may first be cut to size, then bent into a three-dimensional enclosure. In another application, rollers may gradually curve the material into cylindrical or rounded forms.
The selected process depends heavily on the final geometry and the mechanical properties of the material.
How CNC Technology Improves Fabrication
Computer numerical control, or CNC, has become an important part of modern industrial sheet metal machinery. CNC systems translate digital instructions into controlled machine movements.
This can improve consistency by controlling variables such as tool position, cutting paths, bend sequences, and operating parameters.
A typical digital workflow may involve:
- Creating a component design using CAD software.
- Preparing the design for manufacturing.
- Generating machine instructions.
- Loading the material into the machine.
- Performing the programmed operation.
- Inspecting the finished component.
CNC technology is particularly useful when manufacturers need to produce repeated components with consistent dimensions.
Choosing Sheet Metal Manufacturing Equipment
Selecting equipment should begin with the manufacturing requirement rather than the machine itself. A machine that works well for one application may be unsuitable for another.
Consider Material
Different metals have different strength, hardness, ductility, and thermal characteristics. Stainless steel, aluminum, and mild steel may require different cutting or forming approaches.
Consider Thickness
Machine capacity must match the thickness of the material being processed. Cutting and bending requirements can change significantly as sheet thickness increases.
Consider Component Complexity
Simple straight cuts may require relatively basic machinery, while intricate profiles and multi-angle components may benefit from CNC cutting and automated forming systems.
Consider Production Volume
Low-volume production may prioritize flexibility and setup simplicity. Higher-volume manufacturing often places greater importance on repeatability, automation, and cycle efficiency.
Consider Accuracy Requirements
Components used in precision assemblies may require tighter dimensional control than general-purpose fabricated parts. Machine rigidity, tooling condition, CNC control, and measurement systems can all influence accuracy.
The Role of Tooling and Dies
Tooling is an important part of sheet metal fabrication. Punches, dies, cutting tools, forming rolls, and other accessories determine how the material interacts with the machine.
Proper tooling selection helps achieve the intended geometry while reducing unnecessary deformation. Tool wear should also be monitored because damaged or worn tooling can affect dimensions, edges, bend angles, and surface quality.
For press brake operations, for example, the relationship between punch shape, die opening, material thickness, and bend radius influences the final result.
Improving Fabrication Quality
Good equipment alone does not guarantee consistent results. Fabrication quality depends on the complete process.
Important practices include:
- Verify material specifications before processing.
- Use suitable tooling for the material and operation.
- Maintain accurate machine settings.
- Inspect dimensions during production.
- Monitor tool condition.
- Keep work surfaces and equipment clean.
- Follow manufacturer-recommended operating procedures.
- Use appropriate protective equipment and machine safeguards.
Quality checks can include dimensional measurement, visual inspection, bend-angle verification, hole-position checks, and surface inspection.
Where Sheet Metal Machinery Is Used
Sheet metal processing machines support a wide range of industries. Automotive manufacturers use fabricated sheet components for vehicle structures and assemblies. HVAC manufacturers process metal for ducts, housings, and ventilation components. Electrical and electronics industries use sheet metal for cabinets and enclosures.
Other applications include:
- Industrial machinery
- Construction components
- Agricultural equipment
- Appliance manufacturing
- Transportation equipment
- Metal furniture
- Energy infrastructure
- General engineering
The specific machinery combination varies according to the products being manufactured.
Frequently Asked Questions
What is sheet metal machinery used for?
Sheet metal machinery is used to cut, bend, punch, form, shape, and finish metal sheets into functional components and assemblies.
Which machine is commonly used for sheet metal bending?
A press brake is one of the most widely used machines for controlled sheet metal bending. CNC press brakes can provide programmable positioning and repeatable bending operations.
What factors affect sheet metal machine selection?
Material type, thickness, component geometry, production volume, accuracy requirements, tooling needs, and the desired manufacturing process all influence equipment selection.
What is CNC sheet metal processing?
CNC sheet metal processing uses computer-controlled instructions to guide cutting, punching, bending, or other machine operations. It helps maintain consistent positioning and repeatability.
Why is tooling important in sheet metal fabrication?
Tooling directly affects how metal is cut, bent, or formed. Correct tooling can help achieve the required dimensions, geometry, bend radius, and overall component quality.
Conclusion
Understanding Sheet Metal Machinery provides a useful foundation for anyone involved in metal fabrication or manufacturing. Shears, press brakes, punching machines, laser cutters, plasma systems, waterjets, and forming equipment each address different stages of production.
The best equipment choice depends on the material, thickness, component design, accuracy requirements, and production environment. CNC technology can further improve repeatability and process control, while appropriate tooling, maintenance, inspection, and safe operating practices support consistent results.
By understanding what each type of sheet metal fabrication equipment does and how different machines fit together, manufacturers and learners can make more informed decisions about fabrication processes and develop efficient workflows for producing accurate sheet metal components.
