Hydraulic press machines use fluid pressure to generate controlled force for shaping, forming, compressing, bending, punching, and other industrial processes.
Understanding hydraulic press machines tips can help operators and maintenance teams work more consistently while recognizing factors that influence machine performance.
Proper operation and routine maintenance are important for hydraulic systems because pressure, temperature, fluid condition, alignment, and component wear can affect performance. This guide explains the basics of hydraulic press operation, maintenance practices, recent developments, applicable safety requirements, and useful resources.
Context

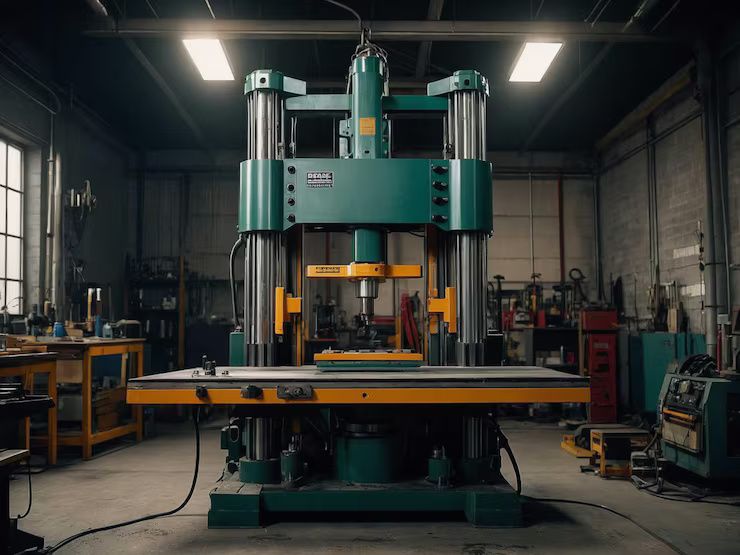

A hydraulic press is a machine that uses hydraulic fluid and a pumping system to create force through one or more cylinders. The basic principle is based on Pascal’s law, which states that pressure applied to a confined fluid is transmitted throughout the fluid.
A typical hydraulic press includes:
- Hydraulic pump
- Reservoir or tank
- Hydraulic cylinder
- Control valves
- Pressure-control components
- Hoses and pipes
- Ram or pressing element
- Frame and work area
- Sensors or control systems on modern machines
During operation, the pump moves hydraulic fluid through the system. Valves regulate its direction and pressure, allowing the cylinder to move the ram. The resulting force depends on hydraulic pressure and the effective area of the cylinder piston.
| Component | Main Function | Common Inspection Point |
|---|---|---|
| Hydraulic pump | Circulates fluid | Noise, pressure, leakage |
| Cylinder | Produces linear force | Seal condition, movement |
| Valves | Control fluid flow | Response and leakage |
| Reservoir | Stores hydraulic fluid | Fluid level and contamination |
| Hoses | Transport fluid | Cracks, abrasion, connections |
| Pressure gauge | Indicates system pressure | Accuracy and condition |
| Control system | Regulates operation | Sensors and controls |
Hydraulic presses are used in metal forming, plastics processing, composite manufacturing, automotive production, appliance manufacturing, and other industrial applications.
Importance
Understanding hydraulic press machines tips matters because incorrect operation can reduce consistency and increase mechanical stress. A press should always be operated according to its manufacturer documentation and its intended capacity.
Performance can be influenced by several factors, including:
- Hydraulic pressure
- Fluid viscosity
- Operating temperature
- Cylinder condition
- Load alignment
- Pump efficiency
- Valve performance
- Tool and die condition
Load alignment is particularly important. A load placed unevenly on the ram can create side forces that affect the cylinder, frame, tooling, or workpiece.
Maintenance also plays an important role. Hydraulic fluid can become contaminated by particles, moisture, or degraded components. Contaminated fluid may contribute to valve wear, pump damage, and reduced system performance.
Operators should also understand the machine's emergency controls, guarding arrangements, pressure limitations, and lockout procedures before performing tasks.
Recent Updates
Hydraulic press technology has increasingly incorporated electronic controls, sensors, data collection, and automation. These developments allow machines to monitor operating conditions more closely than traditional manually controlled systems.
Modern systems may monitor:
- Pressure
- Ram position
- Cycle time
- Hydraulic temperature
- Motor condition
- Fluid condition
- Applied force
Programmable controls can help maintain repeatable pressing cycles by coordinating ram movement, pressure, dwell time, and return movement.
Energy efficiency is another area of development. Variable-speed pump systems and improved hydraulic control technologies can reduce unnecessary energy consumption during periods when full hydraulic output is not required.
Condition monitoring is also becoming more common. Sensors can provide information about pressure fluctuations, temperature changes, vibration, and other operating characteristics. This information can support preventive maintenance by helping technicians identify abnormal conditions earlier.
Digital documentation is another useful development. Maintenance records can be stored electronically, making it easier to track inspections, fluid changes, component replacements, and recurring issues.
Laws or Policies
Hydraulic press safety requirements vary according to the country, industry, machine configuration, and workplace environment. In the United States, OSHA regulations address machinery guarding and hazardous energy control, while applicable ANSI standards provide additional safety guidance for machinery and hydraulic equipment.
For workplaces using hydraulic presses, important safety principles generally include:
- Appropriate machine guarding
- Emergency stopping arrangements where applicable
- Protection from unexpected machine movement
- Proper lockout/tagout procedures during maintenance
- Operator training
- Inspection of safety-related components
- Clear operating instructions
OSHA's hazardous energy control requirements are particularly relevant when maintenance or servicing could expose workers to unexpected energization or stored hydraulic energy.
In the European Union, machinery safety requirements have historically been governed by the Machinery Directive, with the Machinery Regulation providing the newer legislative framework and a transition period. Manufacturers and users should determine which requirements apply to the specific machine and date of placement on the market.
Local regulations may also address electrical safety, workplace risk assessment, pressure systems, noise, and environmental handling of hydraulic fluids. Organizations should consult the applicable government authority and current standards rather than relying on a general checklist.
Tools and Resources
Reliable documentation is one of the most useful resources for hydraulic press operation and maintenance. The machine manufacturer's manual normally contains information about operating limits, hydraulic specifications, lubrication requirements, inspection intervals, and safety procedures.
Useful resources include:
- Manufacturer operation and maintenance manuals
- Hydraulic pressure and force calculators
- Hydraulic circuit diagrams
- Maintenance checklists
- Fluid contamination monitoring equipment
- Pressure gauges and test instruments
- Alignment and measurement tools
- Workplace risk-assessment templates
- Government workplace-safety publications
- Applicable machinery standards
A basic hydraulic force calculation can be represented as:
Force = Pressure × Effective Piston Area
For example, if a hydraulic cylinder has an effective piston area of 10 square inches and the hydraulic pressure is 1,000 psi, the theoretical force is 10,000 pounds-force. Actual machine output can differ because of friction, pressure losses, mechanical limitations, and system design.
Maintenance records should ideally document the date, machine condition, observations, measurements, corrective actions, and person performing the inspection. Consistent records can help identify recurring problems.
FAQs
What are the most important hydraulic press machines tips?
The most important tips include following the manufacturer's operating instructions, staying within specified pressure and load limits, keeping hydraulic fluid clean, checking for leaks, maintaining proper alignment, and inspecting safety equipment regularly.
How can hydraulic press performance be maintained?
Performance can be maintained through appropriate fluid management, regular inspection of pumps and cylinders, correct pressure settings, proper alignment, clean hydraulic components, and timely attention to abnormal noise, heat, vibration, or pressure changes.
What should be checked before operating a hydraulic press?
Before operation, inspect the work area, guards, controls, hoses, fittings, pressure indicators, tooling, and visible hydraulic components. Confirm that the workpiece is positioned correctly and that no person is within a hazardous area.
Why does hydraulic fluid condition matter?
Hydraulic fluid transfers pressure and also lubricates internal components. Contamination, incorrect viscosity, moisture, or thermal degradation can affect valves, pumps, seals, and overall system performance.
What safety rules apply to hydraulic press maintenance?
Maintenance should follow the machine manufacturer's procedures and applicable workplace safety requirements. Where hazardous energy is present, appropriate isolation and lockout/tagout procedures should be followed before servicing.
Conclusion
Hydraulic press machines combine fluid power, mechanical structures, controls, and tooling to generate substantial force. Understanding operation, pressure, alignment, fluid condition, maintenance, and safety requirements helps support consistent and responsible machine use.
Regular inspections and accurate maintenance records can help identify developing issues before they affect normal operation. Because requirements differ by machine and jurisdiction, operators and maintenance personnel should always consult the relevant manual, workplace procedures, and current regulatory requirements.
