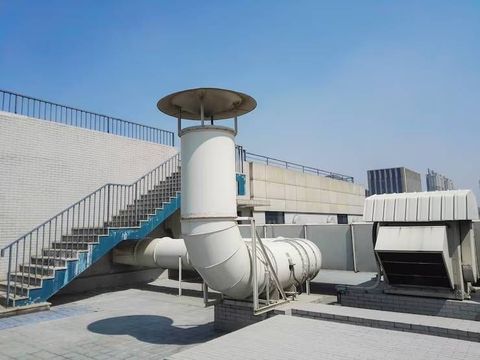

Industrial scrubber systems are engineered air-pollution-control systems used to remove, reduce, or neutralize selected gases, vapors, particulates, and other contaminants from industrial exhaust streams. They are widely integrated into manufacturing plants, chemical facilities, metal-processing operations, power-generation facilities, waste-treatment plants, and other industrial environments.
Depending on the contaminant and process conditions, scrubbers can use liquid absorption, chemical reactions, adsorption, filtration, or combinations of these mechanisms. System design depends on gas composition, temperature, flow rate, particulate loading, required removal performance, and applicable environmental requirements.
What Are Industrial Scrubber Systems?
An industrial scrubber system is a pollution-control installation positioned within an exhaust or process-gas pathway.
The system brings the contaminated gas into contact with a treatment medium. In wet scrubbers, the medium is typically a liquid. In dry or semi-dry systems, solid sorbents or atomized reagents can be used.
A typical industrial scrubber installation may contain:
Scrubber vessel
Gas inlet and outlet
Spray nozzles
Packing material
Pumps
Fans or blowers
Ductwork
Demisters
Chemical dosing equipment
Circulation tanks
Sensors
Control systems
Mist eliminators
Exhaust stack
The exact arrangement depends on the process and contaminant being treated.
Major Industrial Scrubbing Technologies
Different technologies are selected according to the physical and chemical characteristics of the exhaust stream.
Wet Scrubbing
Wet scrubbers bring contaminated gas into contact with a liquid solution. The liquid can capture soluble gases and particulate matter.
Common wet-scrubbing configurations include:
Spray towers
Packed-bed scrubbers
Tray scrubbers
Venturi scrubbers
Cyclonic wet scrubbers
Wet systems can be configured for different gases and particulate loads.
Dry Scrubbing
Dry scrubbers use dry reagents or sorbent materials to react with or capture selected contaminants.
Materials such as lime, hydrated lime, sodium-based reagents, activated carbon, or other sorbents can be used depending on the application.
Semi-Dry Scrubbing
Semi-dry systems introduce an atomized reagent into the gas stream. Water evaporates while the reagent reacts with targeted contaminants.
These systems can be used where dry handling is desirable while maintaining chemical treatment capability.
Adsorption
Adsorption systems use materials such as activated carbon or specialized sorbents to capture selected gaseous compounds on a solid surface.
Types of Industrial Scrubber Systems
| Scrubber Type | Main Principle | Typical Applications |
|---|---|---|
| Packed-Bed Scrubber | Gas-liquid contact through packing | Acid and alkaline gases |
| Spray Scrubber | Liquid sprays contact gas | Gas absorption |
| Venturi Scrubber | High-velocity gas-liquid mixing | Fine particulates |
| Tray Scrubber | Gas-liquid contact across trays | Process gases |
| Cyclonic Scrubber | Centrifugal separation and scrubbing | Dust and particulate control |
| Dry Scrubber | Dry reagent reaction | Flue-gas treatment |
| Semi-Dry Scrubber | Atomized reagent treatment | Industrial exhaust |
| Carbon Scrubber | Adsorption | Selected vapors and gases |
How Industrial Scrubber Systems Work
A typical scrubber process follows several stages.
1. Contaminated Gas Collection
Exhaust gas is collected from the industrial process through hoods, ducts, enclosures, or process outlets.
2. Gas Conditioning
Depending on the system, gas temperature, moisture, flow, or particulate loading may be adjusted before entering the scrubber.
3. Gas-Scrubbing Contact
The contaminated gas enters the scrubber chamber and contacts the treatment medium.
4. Contaminant Removal
Targeted contaminants can be absorbed, chemically reacted, adsorbed, or captured as particles.
5. Droplet or Particle Separation
Wet systems can use mist eliminators to separate liquid droplets from the treated gas stream.
6. Treated Gas Discharge
The treated gas leaves the scrubber through the outlet duct and can proceed to a stack or additional treatment stage.
7. Waste Management
Captured contaminants and spent treatment media must be collected and managed according to the characteristics of the process.
Key Components of Scrubber Systems
Scrubber Vessel
The main vessel provides the environment where gas and treatment media interact.
Materials are selected according to temperature, corrosion potential, chemical composition, and mechanical requirements.
Pumps
Wet scrubbers use pumps to circulate or supply treatment liquids.
Spray Nozzles
Spray nozzles distribute liquid throughout the gas-contact region.
Packing
Packed-bed scrubbers use structured or random packing to increase gas-liquid contact area.
Mist Eliminators
Mist eliminators remove entrained liquid droplets from the treated gas stream.
Fans and Blowers
Fans provide the airflow required to move exhaust gas through ducts and treatment equipment.
Dosing Systems
Chemical dosing equipment can maintain reagent concentrations or introduce treatment chemicals into the scrubbing process.
Instrumentation
Sensors can measure parameters such as:
Pressure
Temperature
Flow
pH
Liquid level
Differential pressure
Chemical concentration
Manufacturing Processes for Industrial Scrubber Systems
Industrial scrubber manufacturing involves mechanical fabrication, chemical compatibility analysis, process engineering, and system integration.
Engineering and System Design
Engineers evaluate gas flow, contaminant characteristics, temperature, pressure, material properties, and required treatment configuration.
Vessel Fabrication
Scrubber vessels can be fabricated from carbon steel, stainless steel, fiberglass-reinforced plastic, thermoplastics, or other corrosion-resistant materials.
Component Fabrication
Ducts, spray headers, nozzles, demisters, tanks, platforms, access doors, and structural components are fabricated according to engineering drawings.
Welding and Assembly
Metal components are cut, formed, welded, inspected, and assembled.
Lining and Coating
Corrosion-resistant linings or coatings may be applied when the process gas or scrubbing liquid could attack the base material.
Equipment Integration
Pumps, fans, valves, instrumentation, control panels, chemical dosing systems, and other equipment are integrated into the system.
Testing
Manufactured systems can undergo dimensional inspection, leak checks, pressure testing where applicable, pump and fan testing, instrumentation verification, and functional testing.
Materials Used in Scrubber Construction
Material selection is a major part of scrubber engineering.
Stainless Steel
Stainless steel can provide corrosion resistance for many applications and is used where appropriate to the chemical environment.
Carbon Steel
Carbon steel can be used in applications where corrosion conditions are controlled or where protective coatings and linings are appropriate.
FRP
Fiberglass-reinforced plastic is widely used for certain corrosive gas environments because of its chemical resistance and relatively low weight.
Thermoplastics
Materials such as polypropylene and PVC can be used for selected ducts, vessels, piping, and components.
The appropriate material depends on chemical concentration, temperature, pressure, abrasion, moisture, and expected service conditions.
Factors Affecting Scrubber Performance
Several parameters influence the performance of an industrial scrubber.
Gas Flow Rate
The scrubber must accommodate the required exhaust volume while maintaining appropriate gas velocity.
Contaminant Concentration
The concentration and composition of the target contaminant influence equipment sizing and treatment chemistry.
Temperature
Gas temperature can affect absorption, chemical reactions, condensation, material selection, and liquid evaporation.
Liquid-to-Gas Ratio
In wet systems, the amount of liquid relative to gas flow influences gas-liquid contact and treatment performance.
Pressure Drop
Scrubber geometry and internal components influence system pressure drop and fan requirements.
Chemical Conditions
pH, reagent concentration, oxidation state, and other chemical properties can influence contaminant removal.
Industrial Applications
Chemical Processing
Scrubbers can be integrated into chemical production processes to treat selected acidic, alkaline, reactive, or particulate exhaust streams.
Metal Processing
Metal processing operations may use scrubbers for fumes, particulate matter, acid gases, and other process emissions.
Pharmaceutical Manufacturing
Selected manufacturing processes can generate solvent vapors, powders, or chemical exhaust streams requiring specialized treatment systems.
Power Generation
Flue-gas treatment systems can incorporate dry, semi-dry, or wet scrubbing technologies for selected pollutants.
Waste Treatment
Thermal waste-treatment processes can generate complex exhaust streams containing gases and particulates that require multiple treatment stages.
Food Processing
Certain food-processing operations may use scrubbers for odor control, particulate management, and selected process emissions.
Mining and Minerals
Mining and mineral-processing facilities can use dust- and gas-control systems for selected process emissions.
Scrubber Systems and Automation
Modern scrubbers can incorporate automated control systems for continuous process monitoring.
A typical automated system may include:
PLC
HMI
Flow sensors
Pressure transmitters
pH sensors
Temperature sensors
Level sensors
Automated valves
Variable-frequency drives
Chemical dosing controls
For example, a pH sensor can provide feedback to a control system that adjusts chemical dosing in a wet scrubber. Differential-pressure measurements can also help identify changes in airflow resistance or fouling conditions.
Wet vs Dry Scrubber Systems
| Feature | Wet Scrubber | Dry Scrubber |
|---|---|---|
| Treatment Medium | Liquid | Dry reagent or sorbent |
| Water Requirement | Generally required | Low or none |
| Liquid Waste | Can be generated | Generally avoided |
| Gas Cooling | Can occur | Depends on configuration |
| Particulate Control | Possible | Possible |
| Chemical Treatment | Common | Common |
| Maintenance | Pumps and liquid systems | Reagent and solids systems |
How to Select an Industrial Scrubber System
System selection should begin with detailed process information.
Important considerations include:
Identify the contaminants.
Determine gas flow rate.
Measure gas temperature and pressure.
Establish contaminant concentrations.
Determine required treatment performance.
Evaluate particulate loading.
Select wet, dry, or semi-dry technology.
Assess chemical compatibility.
Consider pressure-drop limitations.
Determine waste-handling requirements.
Evaluate automation and monitoring requirements.
Review applicable environmental and industrial requirements.
A process engineer or qualified environmental-control specialist should evaluate the complete exhaust-treatment system for the specific installation.
Global Manufacturers and Suppliers
The industrial air-pollution-control sector includes companies providing scrubbers, gas-treatment equipment, filtration systems, chemical dosing systems, and integrated emissions-control technologies.
Examples include:
CECO Environmental
Babcock & Wilcox
Nederman
DuPont
ANDRITZ
Alfa Laval
Dürr
Specialized engineering companies and regional suppliers may also design and fabricate application-specific scrubber systems.
Maintenance of Industrial Scrubber Systems
Routine maintenance helps maintain consistent equipment operation.
Typical activities include:
Inspecting spray nozzles
Checking pumps
Monitoring pressure drop
Inspecting packing
Cleaning deposits
Checking mist eliminators
Inspecting ducts
Verifying chemical dosing
Calibrating sensors
Checking valves
Inspecting corrosion and linings
Maintenance requirements depend heavily on the contaminant, process conditions, scrubber configuration, and operating schedule.
Frequently Asked Questions
What is an industrial scrubber system?
An industrial scrubber system is an exhaust-treatment system designed to remove or reduce selected gases, vapors, particles, or other contaminants from industrial gas streams.
What are the main types of industrial scrubbers?
Common types include packed-bed scrubbers, spray scrubbers, Venturi scrubbers, tray scrubbers, cyclonic scrubbers, dry scrubbers, semi-dry scrubbers, and adsorption-based systems.
What is the difference between wet and dry scrubbers?
Wet scrubbers use a liquid treatment medium, while dry scrubbers use dry reagents or sorbent materials. The appropriate technology depends on the contaminant and process requirements.
What industries use industrial scrubbers?
Chemical processing, metal processing, power generation, waste treatment, pharmaceutical manufacturing, food processing, mining, and other industries can use scrubber technologies.
What factors affect scrubber selection?
Important factors include gas flow, contaminant type and concentration, temperature, pressure, particulate loading, chemical compatibility, pressure drop, waste handling, and required treatment performance.
Conclusion
Industrial scrubber systems provide engineered methods for treating selected gases, vapors, and particulate contaminants generated by industrial processes. Wet, dry, semi-dry, adsorption, packed-bed, spray, and Venturi technologies offer different approaches depending on the characteristics of the exhaust stream.
System performance depends on appropriate equipment sizing, gas-liquid or gas-solid contact, chemical conditions, pressure drop, material selection, instrumentation, and operating parameters. Modern systems can also incorporate PLC controls, sensors, automated chemical dosing, variable-frequency drives, and monitoring equipment.
Selecting a scrubber requires detailed understanding of the process gas, contaminants, flow conditions, temperature, chemical environment, treatment objectives, and waste-management requirements. Proper engineering and ongoing maintenance are important for reliable industrial exhaust-treatment operation.
